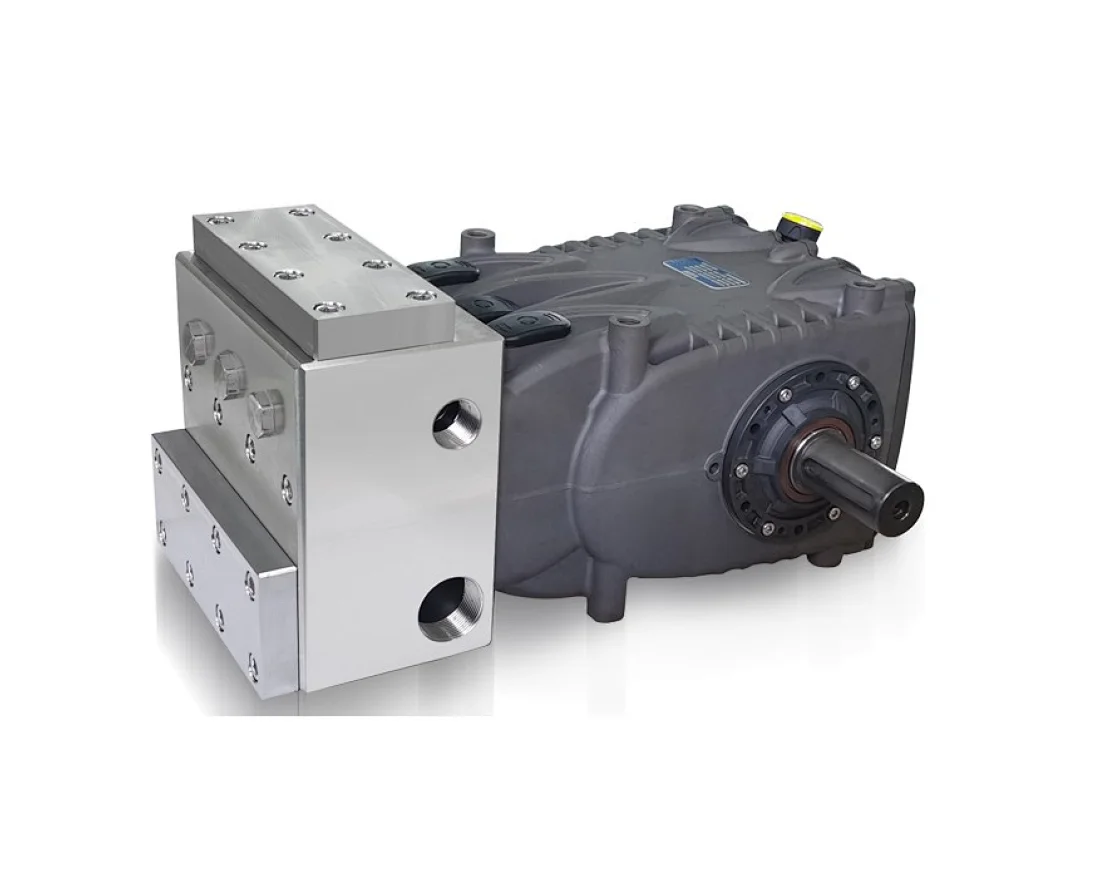

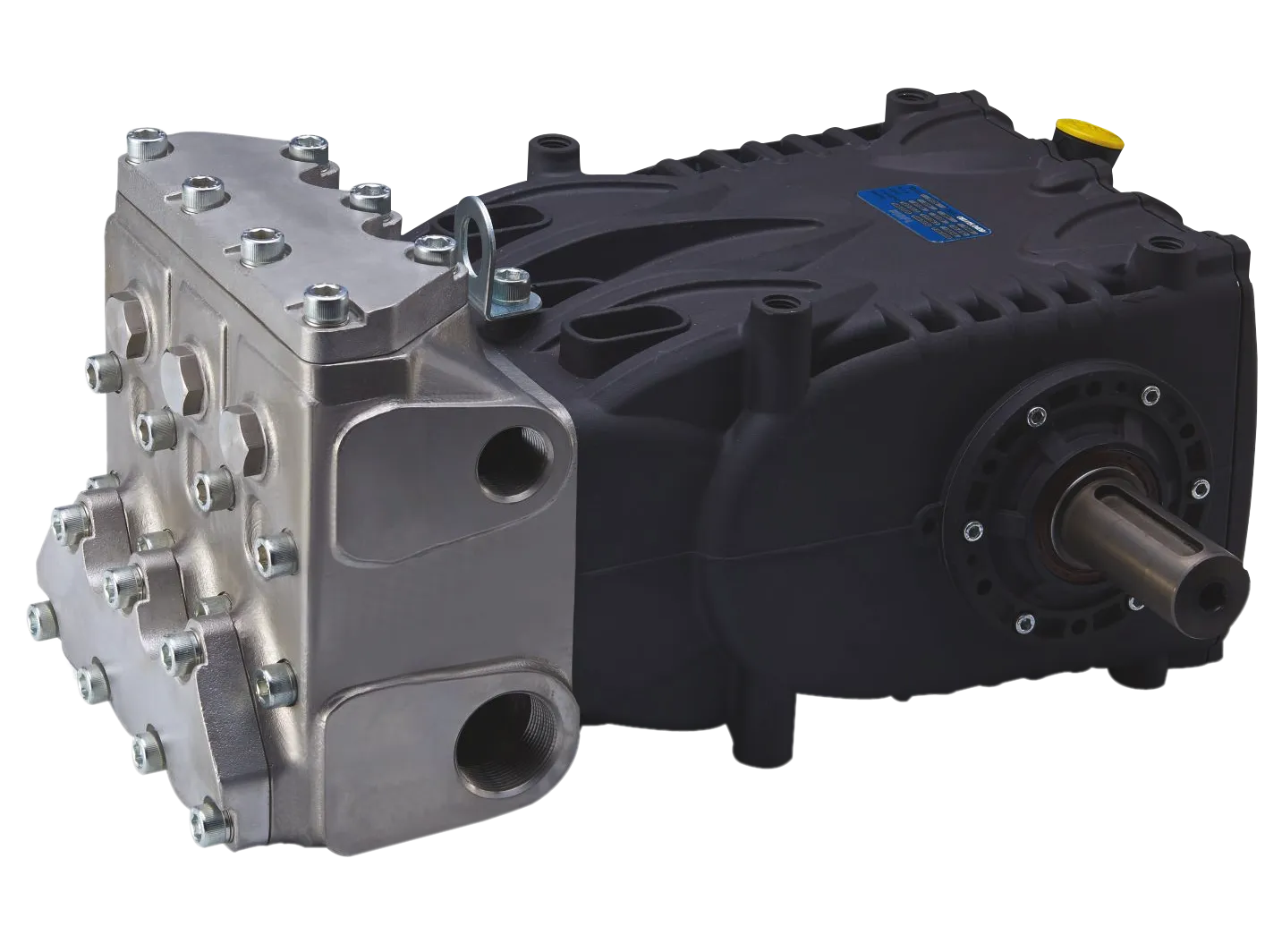

Anti-corrosion pump 316L piston water pump
Botuo -pinfl chemical series stainless steel pump EF, can choose 316L, 2205,2507 and other stainless steel materials, according to the customer's different use environment, we can also choose fluorine glue, teflon, nitrile and other different materials of seals, excellent performance, E series stainless steel pump has been our main research and development object
EF
1
Quantity:
- Min. Order:1
- Color:/
- Specification Code:EF
- Specification Description:STAINLESS STEEL
Anti-corrosion pump
| MODEL | Max Flow | Max Pressure | Speed | Power Require | Weight | ||||
| L/min | gpm | bar | p.s.i | Mpa | r.p.m | hp | kw | kg | |
| EF28 | 85 | 22.5 | 160 | 2320 | 16 | 980 | 34.87 | 27.2 | 69 |
| EF36 | 114 | 30 | 130 | 1885 | 13 | 800 | 38 | 29.64 | 69 |
| EF40 | 141 | 37.2 | 85 | 1230 | 8.5 | 780 | 30.73 | 23.97 | 69 |
| EF45 | 171 | 45 | 75 | 1015 | 7.5 | 760 | 32.88 | 25.65 | 69 |
