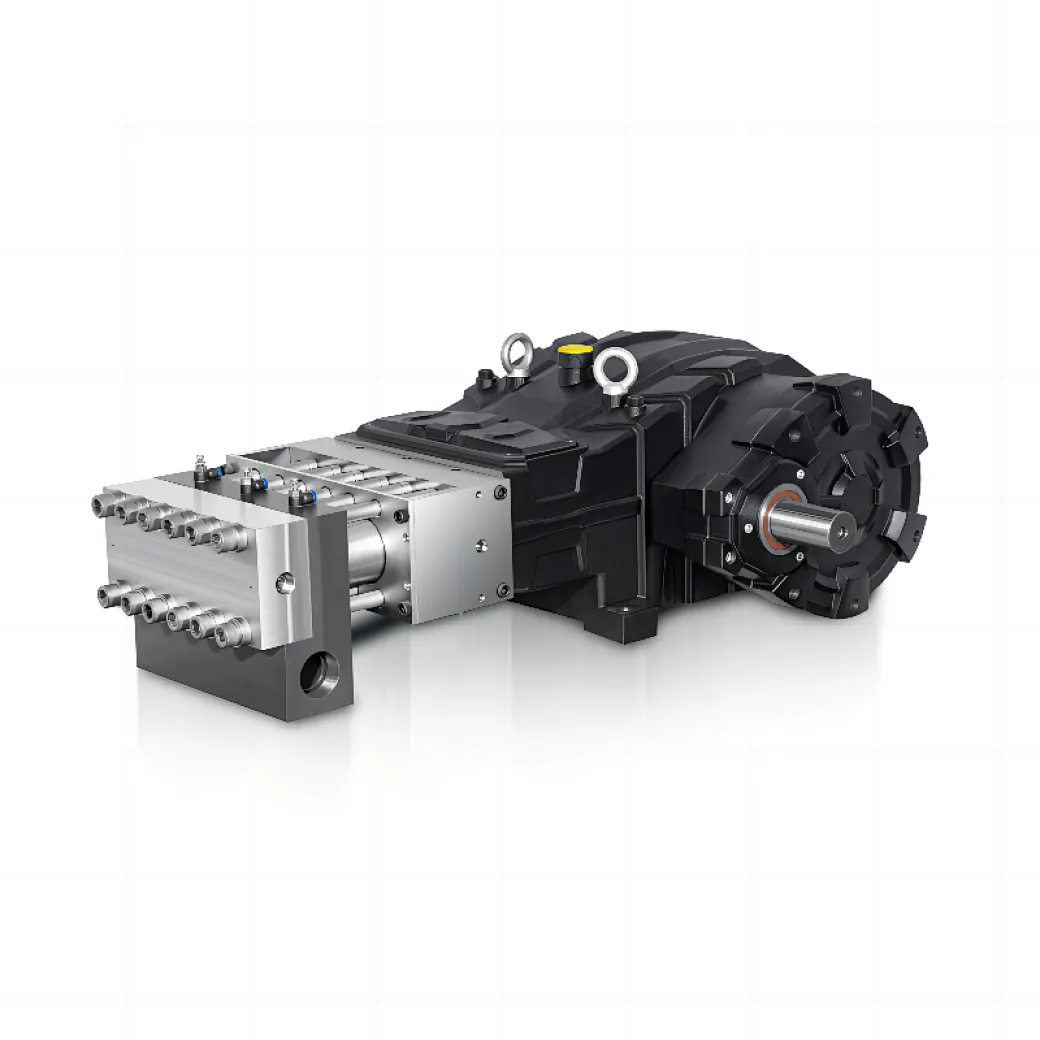

MGU 20-60LPM 1200-2700bar High Pressure Stainless Steel Pump
MGU
MGU Ultra High Pressure Chemical Pumps are used in demanding chemical processing applications. Its SS 316L makes it resistant to corrosion and wear for reliable operation in harsh environments.
With pressures up to 2700 bar, this pump is ideal for a variety of high pressure cleaning and water blasting applications.
With pressures up to 2700 bar, this pump is ideal for a variety of high pressure cleaning and water blasting applications.
minimum order
1 piece
Quantity
- Model: MGU
- Specification Description: Stainless Steel
- Ultra High Pressure Pump
| MGU Series High Pressure Pump | ||||||
| Input Speed Reducer Speed Ratio Pump Speed | r.p.m | 1000 | 1500 | |||
| i | 1.92 | 2.17 | 2.65 | 2.65 | ||
| r.p.m | 521 | 461 | 377 | 566 | ||
| Pressure (bar) | Model | Output flow (L/min) and required power(kw) | ||||
| 2700 | MGU12 | L/min | 12.7 | 11.3 | 9.2 | 13.8 |
| kW | 67.4 | 59.6 | 48.8 | 73.2 | ||
| 2500 | MGU14 | L/min | 17.3 | 15.3 | 12.5 | 18.8 |
| kW | 84.9 | 75.1 | 61.4 | 92.3 | ||
| 2000 | MGU16 | L/min | 22.6 | 20.0 | 16.4 | 24.6 |
| kW | 88.7 | 78.5 | 64.2 | 96.4 | ||
| 1400 | MGU19 | L/min | 31.9 | 28.2 | 23.1 | 34.7 |
| kW | 87.6 | 77.5 | 63.4 | 95.2 | ||
| 1200 | MGU22 | L/min | 42.8 | 37.9 | 31.0 | 46.5 |
| kW | 100.7 | 89.1 | 72.8 | 109.3 | ||
MGU Plunger Pump, also called chemical dosing pump, reverse osmosis water filtration system pump,
reverse osmosis filter system pump, ro water filter system pump, ro water filter pump, best reverse osmosis system pump.
It is widely used in high pressure, large flow and occasions where the flow needs to be adjusted.
It is widely used in high pressure, large flow and occasions where the flow needs to be adjusted.
