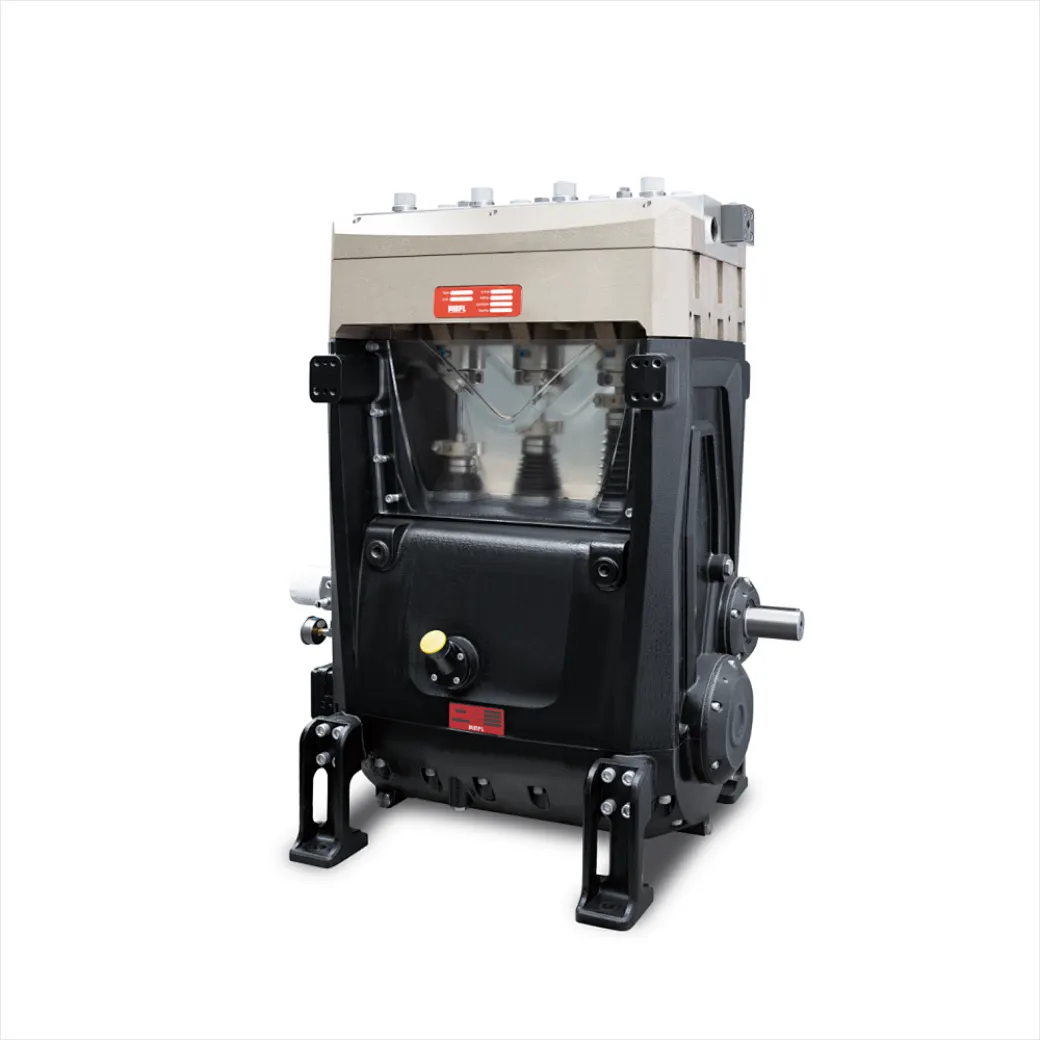

TN Series High Pressure Plunger Pump |
Model | Flow Rate | Max Pressure | Power | Speed | Stroke | Weight |
L/min | gpm | bar | p.s.i | hp | kw | r.p.m | mm | kg |
TN17 | 40 | 10.6 | 2800 | 40600 | 298 | 219 | 450 | 130 | 1500 |
TN18 | 45 | 12.5 | 2800 | 40600 | 334 | 245 | 450 | 130 | 1500 |
TN20 | 55 | 14.8 | 2500 | 36250 | 368 | 270 | 450 | 130 | 1500 |
TN22 | 567 | 17.5 | 2000 | 29000 | 356 | 262 | 450 | 130 | 1500 |
The TN ultra-high pressure pump is an ideal choice for use in a pump system.
With its advanced design and cutting-edge technology, it delivers high performance and reliable operation for a wide range of applications.
The pump is capable of producing ultra-high pressure levels, making it suited for use in demanding industrial and commercial environments.
Whether used as part of a larger pump system or in standalone applications, the TN UHP pump is a trusted and reliable solution for all your pumping needs.
