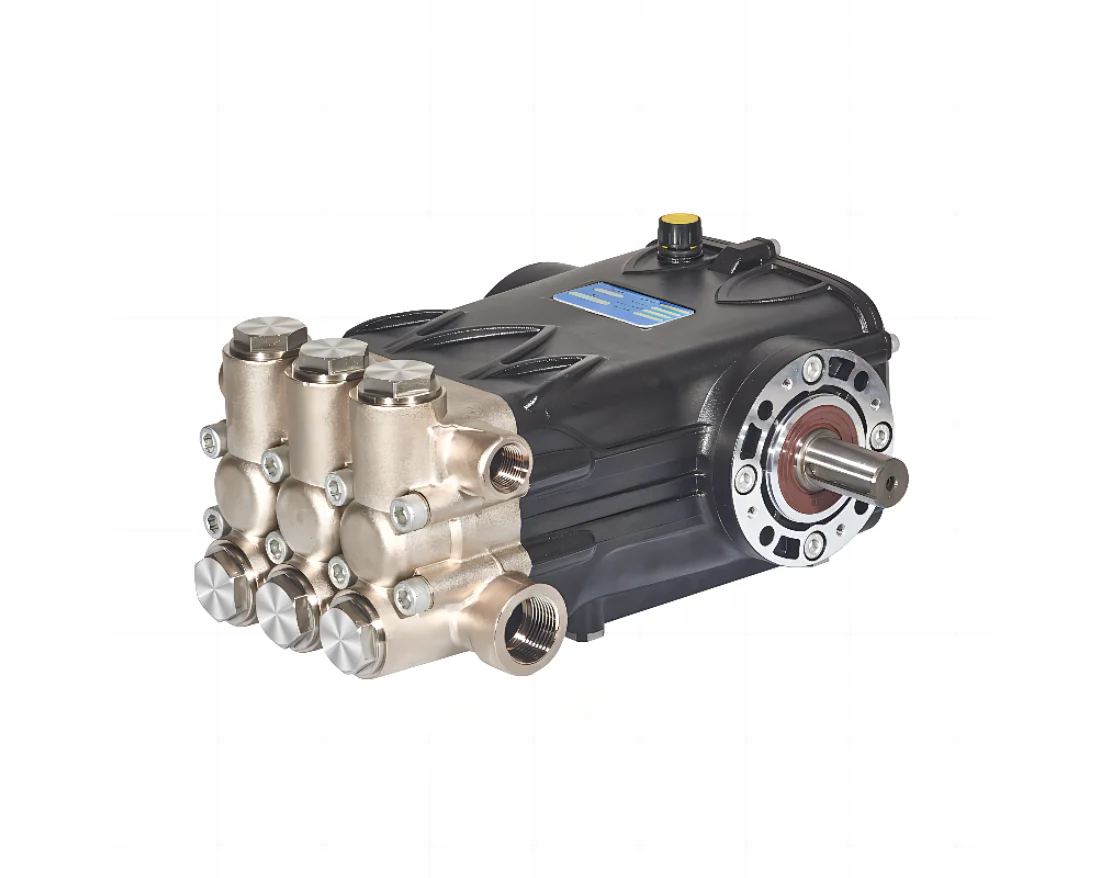

PD 22-72L/min 350Bar Pinfl Pump
- Min. Order: 1
- Specification Code: PD
- Specification Description: Cast Iron
PD Series High Pressure Plunger Pump | |||||||||
Model | Flow Rate | Max Pressure | Speed | Power | Weight | ||||
L/min | gpm | bar | p.s.i | Mpa | r.p.m | hp | kw | kg | |
PD2235 | 22 | 5.81 | 350 | 5075 | 35 | 1450 | 20 | 15 | 16.5 |
PD3025 | 30 | 7.92 | 250 | 3625 | 25 | 1450 | 20 | 15 | 16.5 |
PD4020 | 40 | 10.56 | 200 | 2900 | 20 | 1450 | 20 | 15 | 16.5 |
PD5215 | 52 | 13.73 | 150 | 2175 | 15 | 1450 | 20 | 15 | 16.5 |
PD7215 | 72 | 19.02 | 150 | 2175 | 15 | 1450 | 30 | 22 | 16.5 |




It is widely used in high pressure, large flow and occasions where the flow needs to be adjusted.
