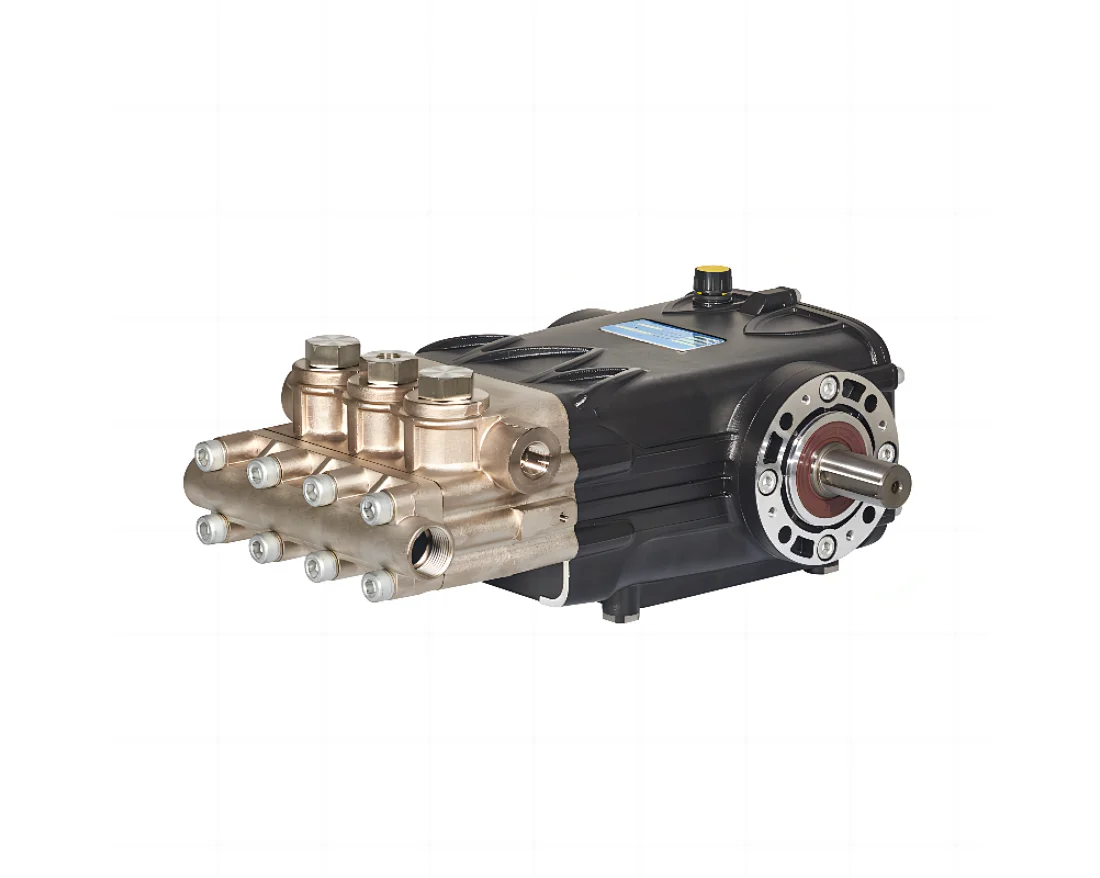

PDP 500bar high pressure plunger pump
PDP
1 piece
Quantity:
- Min. Order: 1
- Specification Code: PDP
- Specification Description: Cast Iron
Ultra High Pressure Pump
| PDP Series High Pressure Plunger Pump | |||||||||
| Model | Flow Rate | Max Pressure | Speed | Power | Weight | ||||
| L/min | gpm | bar | p.s.i | Mpa | r.p.m | hp | kw | kg | |
| PDP2250 | 22 | 5.81 | 500 | 7250 | 50 | 1450 | 30 | 22 | 18.5 |
| PDP3050 | 28 | 7.39 | 500 | 7250 | 50 | 1450 | 30 | 22 | 18.5 |
| PDP4020 | 38 | 10.03 | 200 | 2900 | 20 | 1450 | 20 | 15 | 18.5 |
| PDP5215 | 51 | 13.46 | 150 | 2175 | 15 | 1450 | 30 | 22 | 18.5 |
PDP Plunger Pump, also called power washer pump, deep well jet pump, water pump for pressure washer.
It is widely used in high pressure, large flow and occasions where the flow needs to be adjusted.
It is widely used in high pressure, large flow and occasions where the flow needs to be adjusted.
