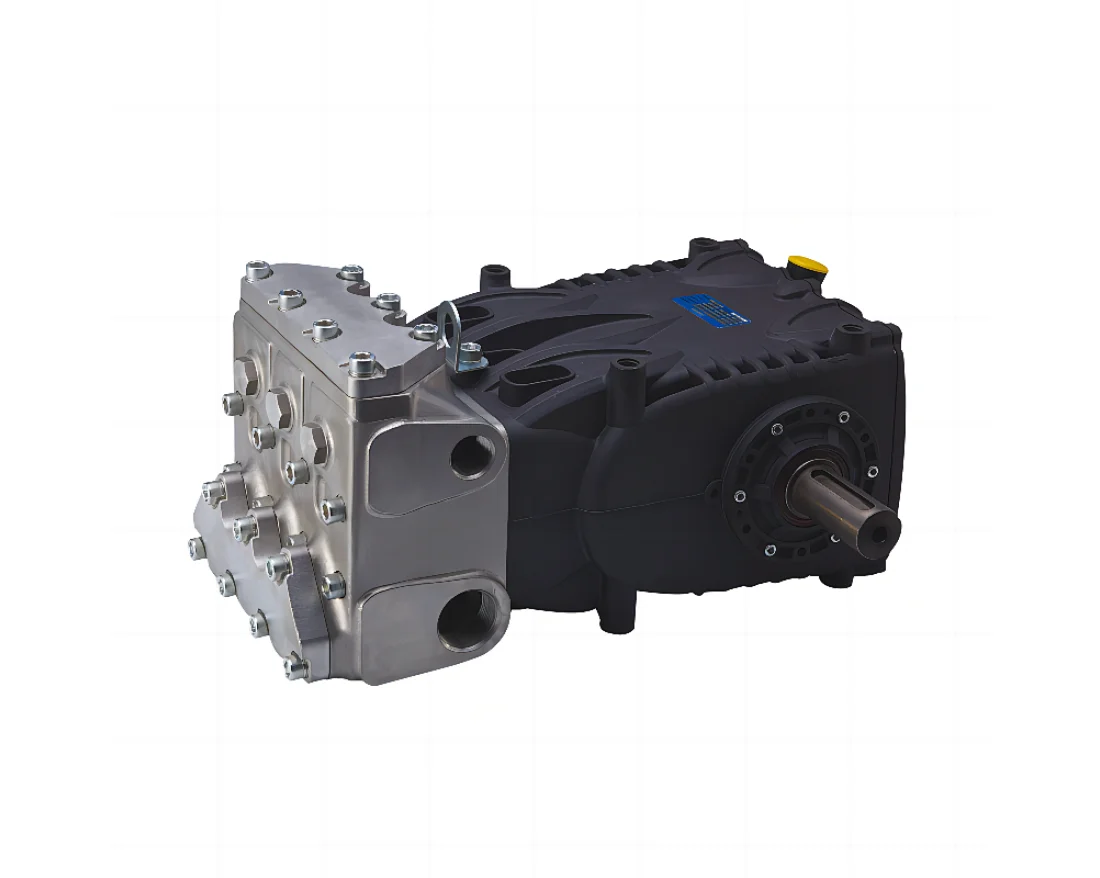

PF 90-240L/min 200bar plunger pump
PF
1 piece
Quantity:
- Min. Order: 1
- Specification Code: PF
- Specification Description: Cast Iron
Ultra High Pressure Pump
| PF Series High Pressure Plunger Pump | |||||||||
| Model | Flow Rate | Max Pressure | Speed | Power | Weight | ||||
| L/min | gpm | bar | p.s.i | Mpa | r.p.m | hp | kw | kg | |
| PF28 | 92 | 24.3 | 210 | 3045 | 21 | 1000 | 50 | 37 | 69 |
| 106 | 28 | 200 | 2900 | 20 | 1000 | 55 | 40 | 69 | |
| PF36 | 122 | 32.2 | 160 | 2320 | 16 | 800 | 50 | 37 | 69 |
| 137 | 36.2 | 140 | 2030 | 14 | 900 | 50 | 37 | 69 | |
| 153 | 40.4 | 130 | 1885 | 13 | 1000 | 52 | 38 | 69 | |
| PF40 | 169 | 44.6 | 110 | 1595 | 11 | 900 | 49 | 36 | 69 |
| 189 | 50 | 110 | 1595 | 11 | 1000 | 56 | 41 | 69 | |
| PF45 | 215 | 56.8 | 80 | 1160 | 8 | 900 | 45 | 33 | 69 |
| 239 | 63.1 | 80 | 1160 | 8 | 1000 | 51 | 37 | 69 | |
PF Plunger Pump, also called high pressure water jet pump, industrial pump, chemical transfer pump.
It is widely used in high pressure, large flow and occasions where the flow needs to be adjusted.
