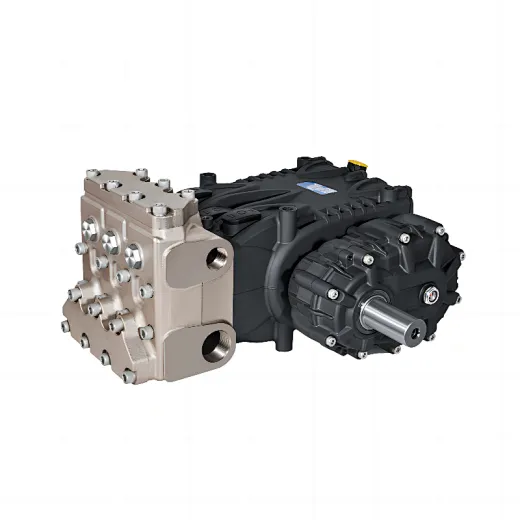

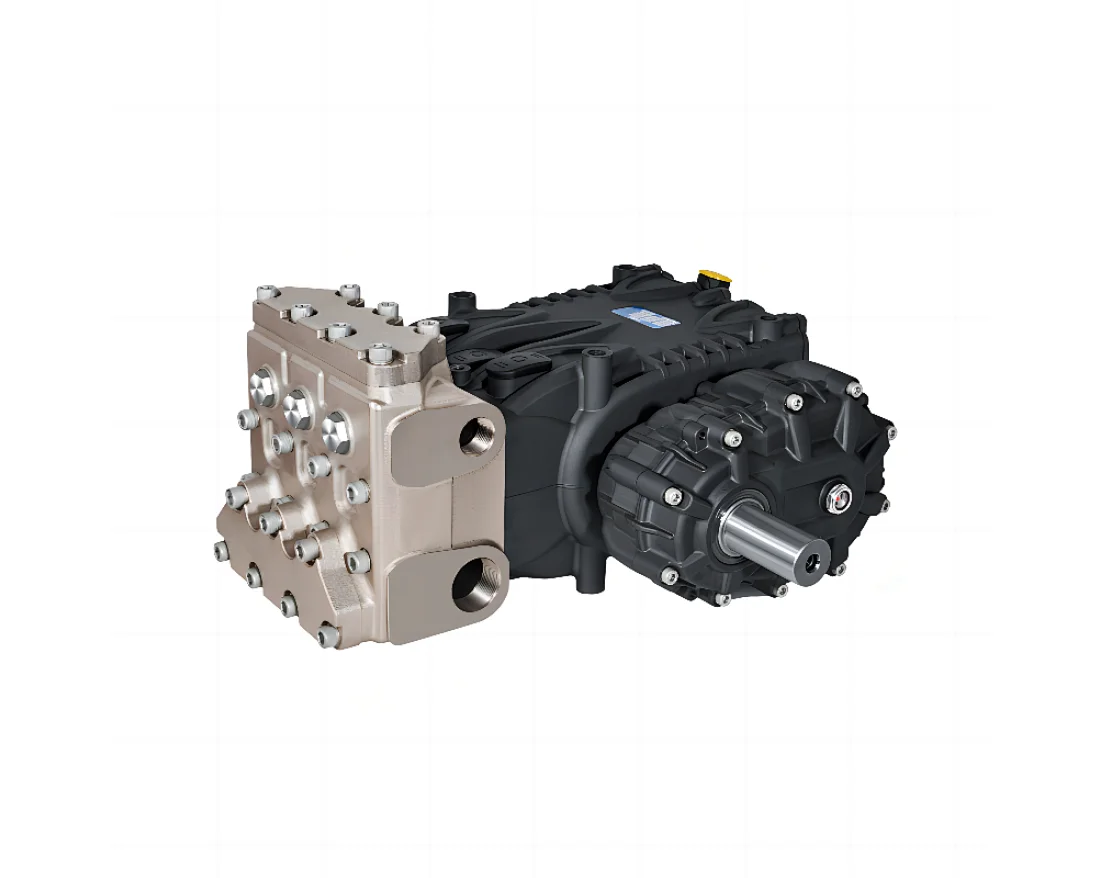

PFH High Pressure Plunger Pump with Gearbox 110-220L/min
PFH
1 piece
Quantity:
- Min. Order: 1
- Specification Code: PFH
- Specification Description: Cast Iron
Ultra High Pressure Pump
PFH Series High Pressure Plunger Pump | |||||||||
Model | Flow Rate | Max Pressure | Speed (r.p.m) | Power | Weight | ||||
L/min | gpm | bar | p.s.i | Mpa | 1:1.25 1:1.5 1:1.83 | hp | kw | kg | |
PFH28 | 110 | 29.1 | 250 | 3625 | 25 | 1500/1800/2200 | 75 | 55 | 81 |
PFH30 | 127 | 33.5 | 200 | 2900 | 20 | 1500/1800/2200 | 68 | 50 | 81 |
PFH36 | 183 | 48.3 | 160 | 2320 | 16 | 1500/1800/2200 | 75 | 55 | 81 |
PFH40 | 226 | 59.7 | 130 | 1885 | 13 | 1500/1800/2200 | 75 | 55 | 81 |



PFH plunger pump, also called high sewage ejector pump, dredge pump, water cutting pump.
It is widely used in high pressure, large flow and occasions where the flow needs to be adjusted.
It is widely used in high pressure, large flow and occasions where the flow needs to be adjusted.
