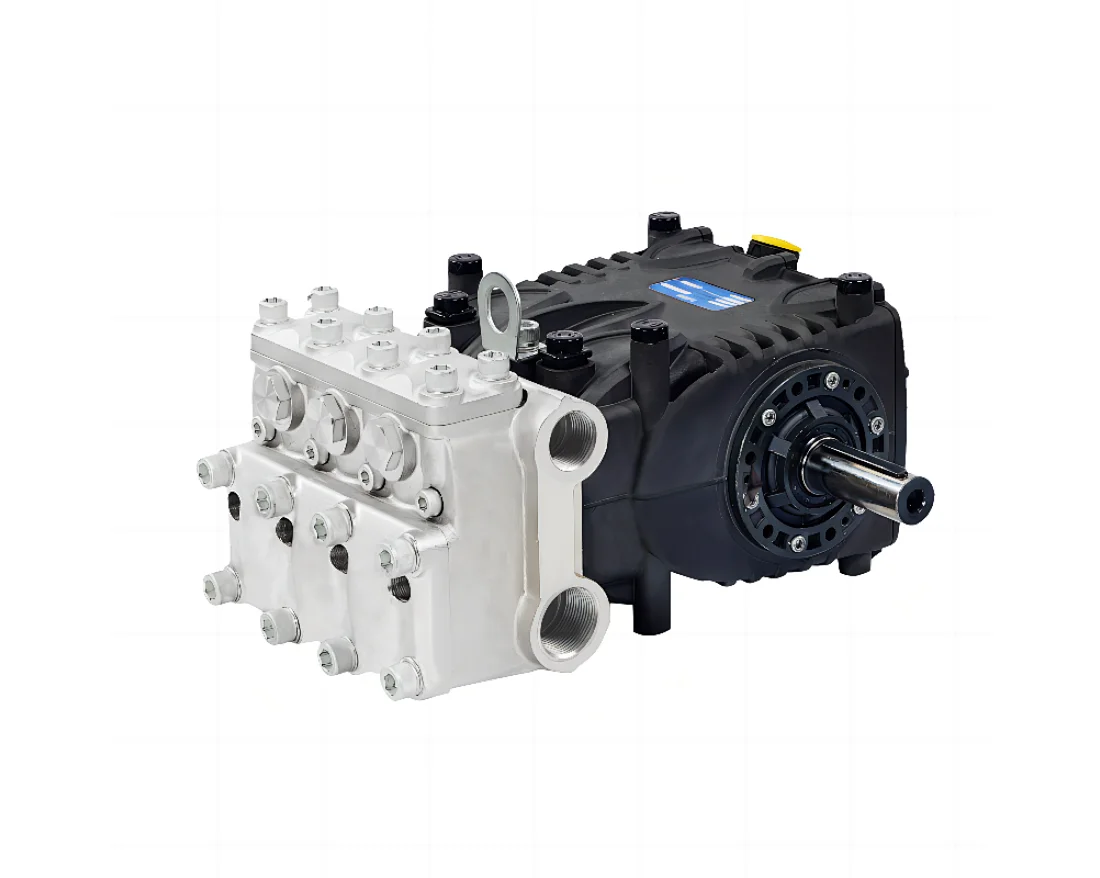

PT 70-140L/min 200bar plunger pump
PT
1 piece
Quantity:
- Min. Order: 1
- Specification Code: PT
- Specification Description: Cast Iron
Ultra High Pressure Pump
| PT Series High Pressure Plunger Pump | |||||||||
| Model | Flow Rate | Max Pressure | Speed | Power | Weight | ||||
| L/min | gpm | bar | p.s.i | Mpa | r.p.m | hp | kw | kg | |
| PT28 | 70 | 18.4 | 200 | 2900 | 20 | 1450 | 37 | 27 | 44 |
| 84 | 22.2 | 175 | 2538 | 17.5 | 1750 | 38 | 28 | 44 | |
| PT30 | 80 | 21.1 | 175 | 2538 | 17.5 | 1450 | 38 | 28 | 44 |
| 96 | 25.5 | 140 | 2030 | 14 | 1750 | 37 | 27 | 44 | |
| PT32 | 91 | 24 | 150 | 2175 | 15 | 1450 | 37 | 27 | 44 |
| PT36 | 115 | 30.4 | 120 | 1740 | 12 | 1450 | 38 | 28 | 44 |
| 139 | 36.7 | 100 | 1450 | 10 | 1750 | 38 | 28 | 44 | |
| PT40 | 142 | 37.5 | 100 | 1450 | 10 | 1450 | 38 | 28 | 44 |
| PT45 | 124 | 32.8 | 100 | 1450 | 10 | 1000 | 33 | 24 | 44 |
| 112 | 29.6 | 100 | 1450 | 10 | 900 | 30 | 22 | 44 | |
| 99 | 26.2 | 100 | 1450 | 10 | 800 | 27 | 20 | 44 | |
PT Plunger Pump, also called water jet cutting pump, pressure water pump, piston pump.
It is widely used in high pressure, large flow and occasions where the flow needs to be adjusted.
It is widely used in high pressure, large flow and occasions where the flow needs to be adjusted.
