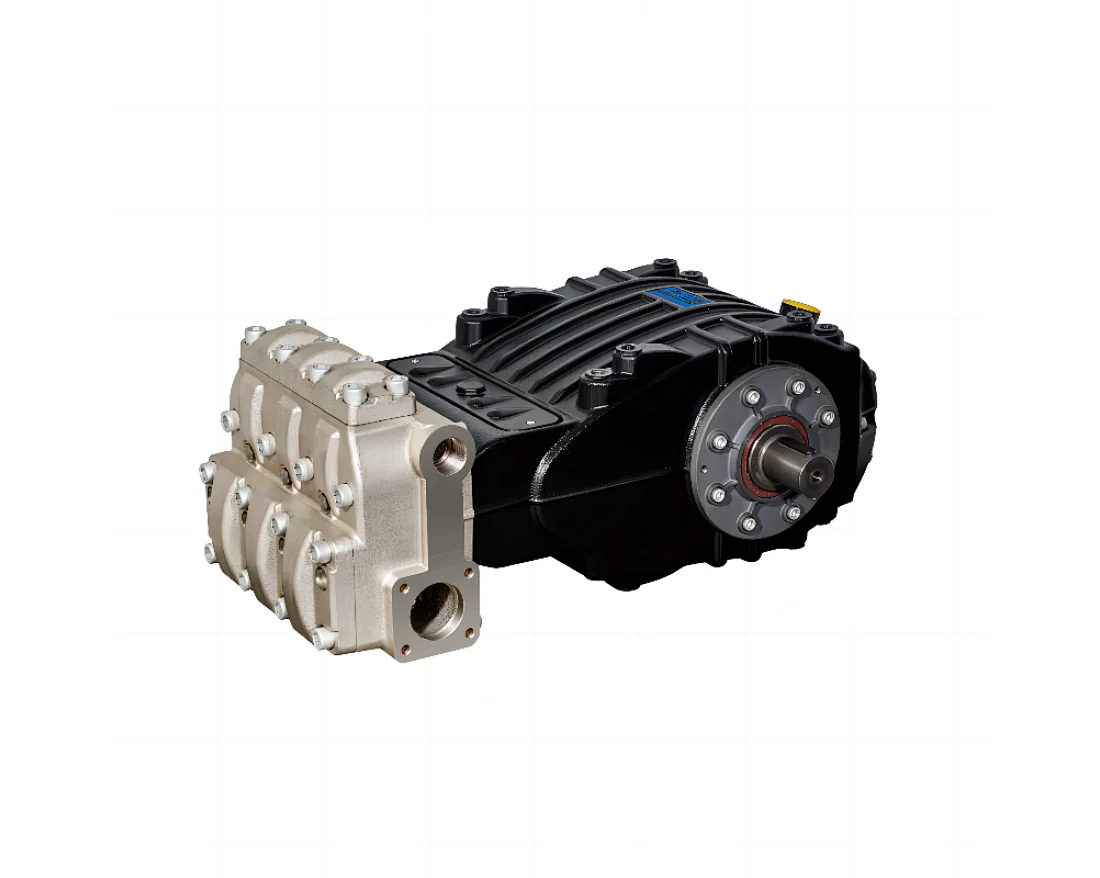

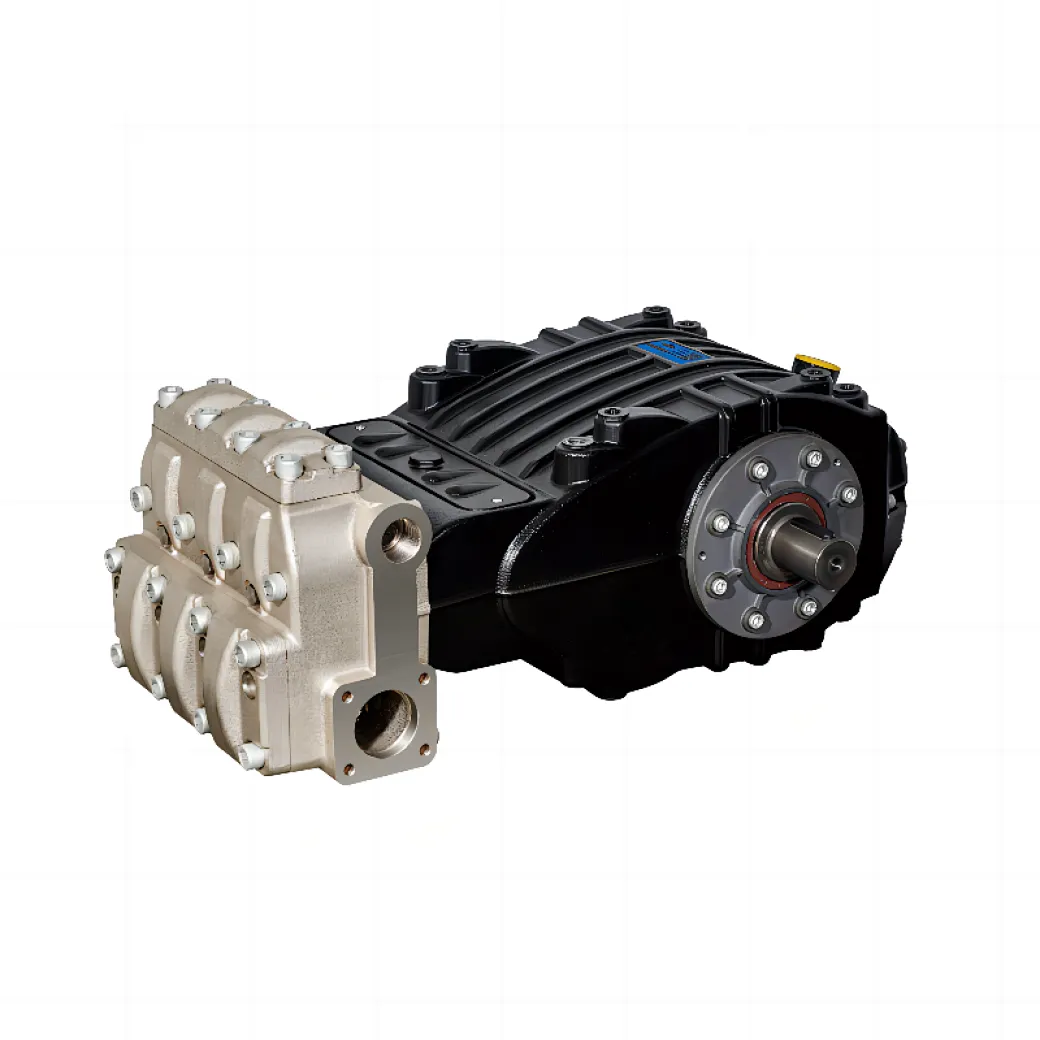

XV55 400L/min 100Bar Industrial Plunger Pump
- Min. Order: 1
- Specification Code: XV55
- Specification Description: Cast Iron

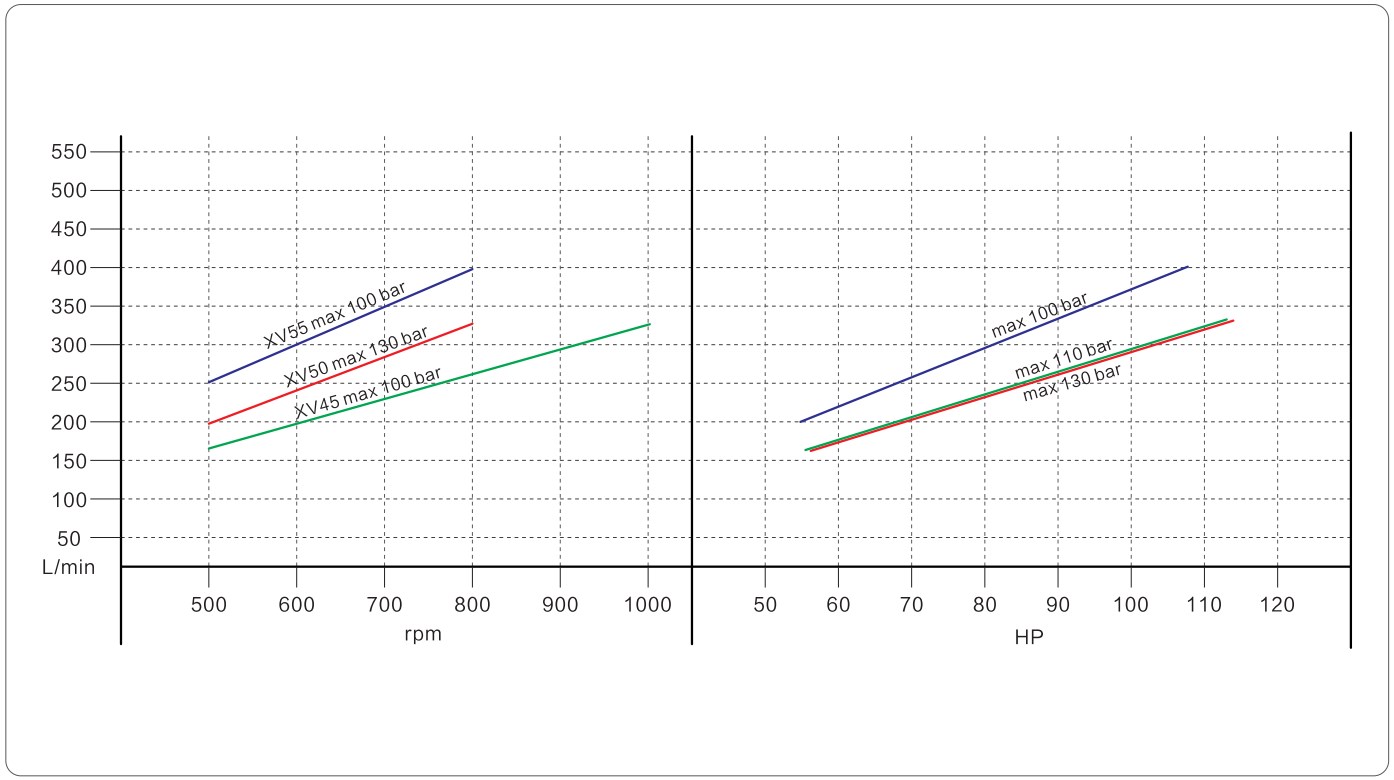

XV55 Series High Pressure Plunger Pump | |||||||||
Model | Flow Rate | Max Pressure | Speed | Power | Weight | ||||
L/min | gpm | bar | p.s.i | Mpa | r.p.m | hp | kw | kg | |
XV45 | 333 | 88 | 100 | 1450 | 10 | 1000 | 113 | 83 | 209 |
XV50 | 330 | 87.2 | 139 | 1885 | 13 | 800 | 114 | 84 | 209 |
XV55 | 399 | 105.4 | 100 | 1450 | 10 | 800 | 108 | 79 | 209 |
It is widely used in high pressure, large flow and occasions where the flow needs to be adjusted.
