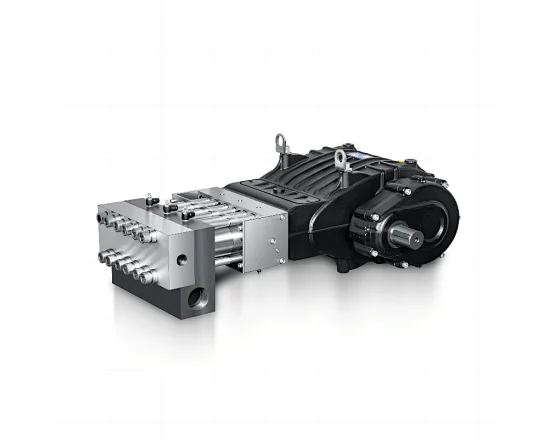

XWU 1600bar High Pressure Plunger Pump Stainless Steel
XWU
1 piece
Quantity:
- Min. Order: 1
- Specification Code: XWU
- Specification Description: Stainless Steel
Ultra High Pressure Pump
| XWU Series High Pressure Plunger Pump | |||||||||||
| Model | Flow Rate | Max Pressure | Speed Ratio (r.p.m) | Power | Plunger Diameter | Crankshaft Stroke | Speed | ||||
| L/min | gpm | bar | p.s.i | Mpa | 1:1.62 1:1.83 1:2.24 | hp | kw | mm | mm | r.p.m | |
| XWU14 | 27 | 7 | 1600 | 23200 | 160 | 1500/1800/2200 | 113 | 83 | 14.2875 | 70 | 804 |
| XWU16 | 33 | 9 | 1300 | 18850 | 130 | 1500/1800/2200 | 113 | 83 | 15.875 | 70 | 804 |
| XWU19 | 48 | 13 | 900 | 13050 | 90 | 1500/1800/2200 | 113 | 83 | 19.05 | 70 | 804 |
| XWU22 | 65 | 17 | 700 | 10150 | 70 | 1500/1800/2200 | 119 | 88 | 22.22 | 70 | 804 |
XWU Plunger Pump, also called high pressure pump, fluid transfer pump, pump system, radial piston pump, pump unit.
It is widely used in high pressure, large flow and occasions where the flow needs to be adjusted.
It is widely used in high pressure, large flow and occasions where the flow needs to be adjusted.
