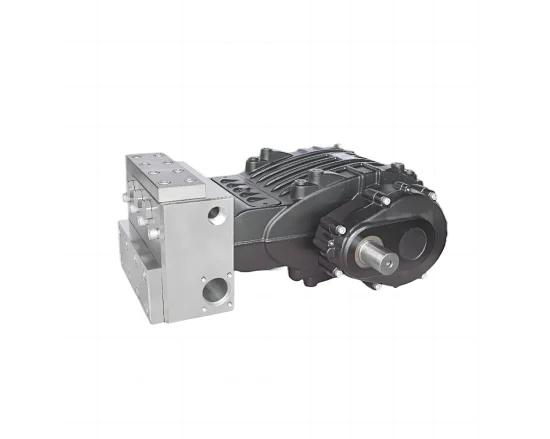

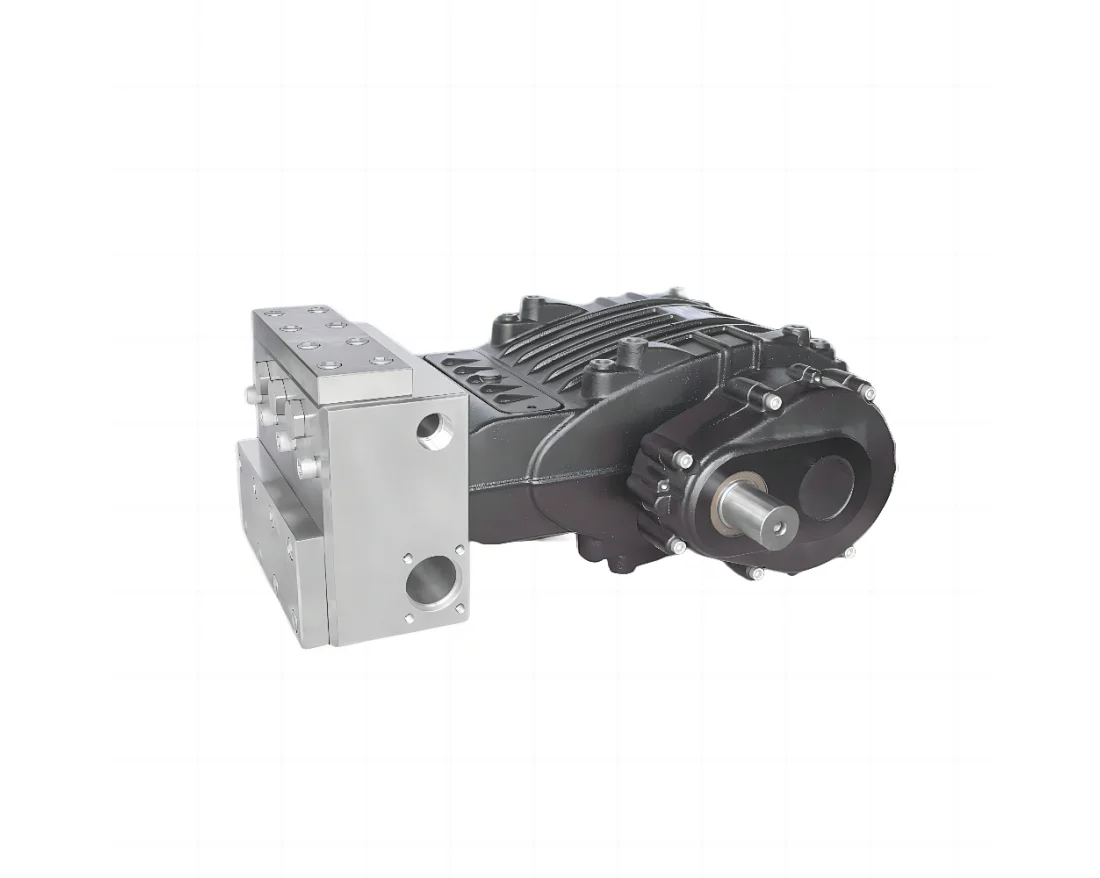

EW Stainless Steel Chemical Pump Customizable 168-317L/min 70-160bar
EW
1 piece
Quantity:
- Min. Order: 1
- Specification Code: EW
- Specification Description: Stainless Steel
High Pressure Pump
| EW Series High Pressure Plunger Pump | ||||||||
| Model | Flow | Pressure Range | Pump Speed | Bore | Max Liquid Temp. | Shaft Dia. | Weight | Dimensions |
| L/min | bar | r.p.m | mm | 71℃ | 50mm | 290 kg | 775*479*332 mm | |
| EW40/ EWU40 | 168 | 6.9-160 | 680 | 40 | ||||
| EW50/ EWU50 | 215 | 6.9-135 | 580 | 50 | ||||
| EW55/ EWU55 | 317 | 6.9-70 | 680 | 55 | ||||
EW Plunger Pump, also called chemical pump, osmosis pump, custom pump, gear pump, high pressure plunger pump.
It is widely used in high pressure, large flow and occasions where the flow needs to be adjusted.
It is widely used in high pressure, large flow and occasions where the flow needs to be adjusted.
EW series is 316L stainless steel pump, EWU series is 2205 duplex stainless steel pump. EW series pumps can be matched with gearboxes and support customization.
