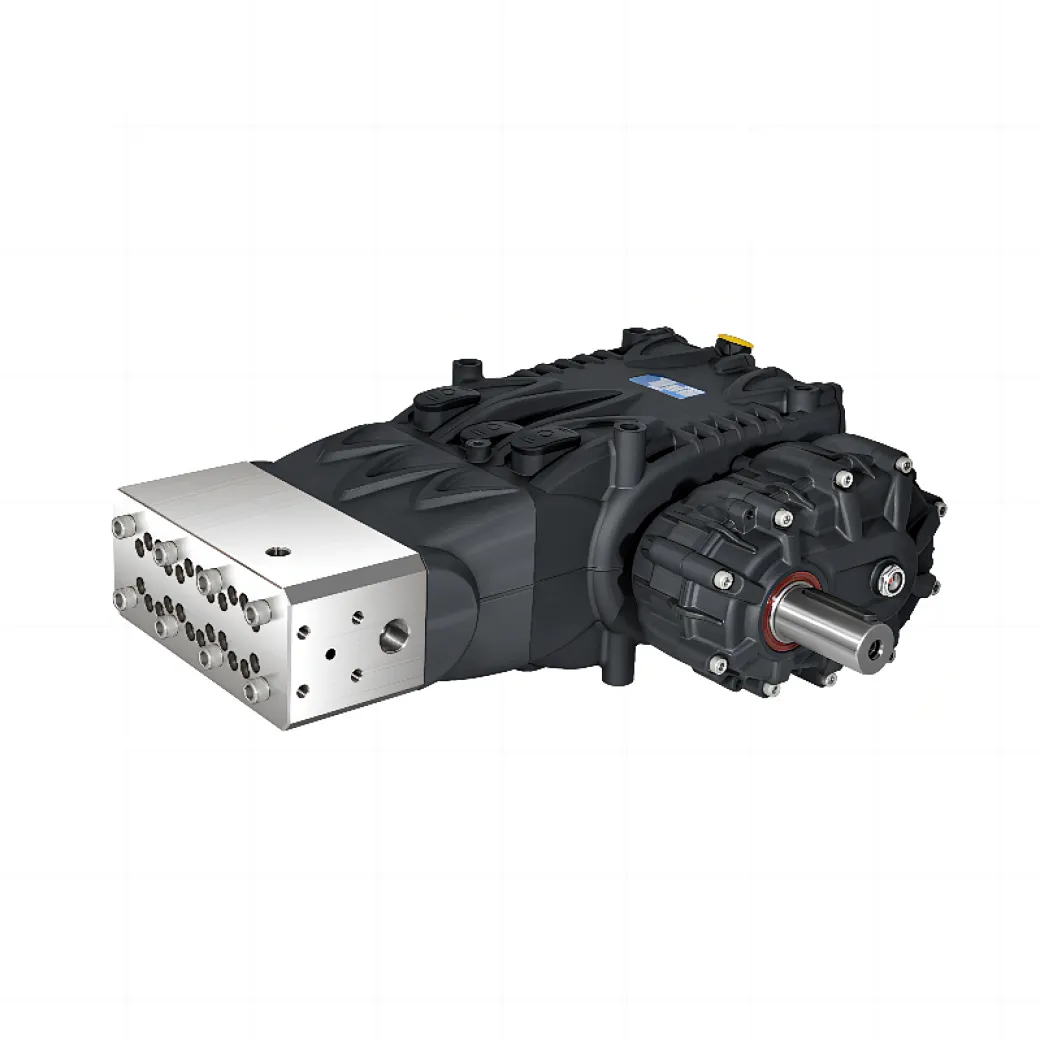

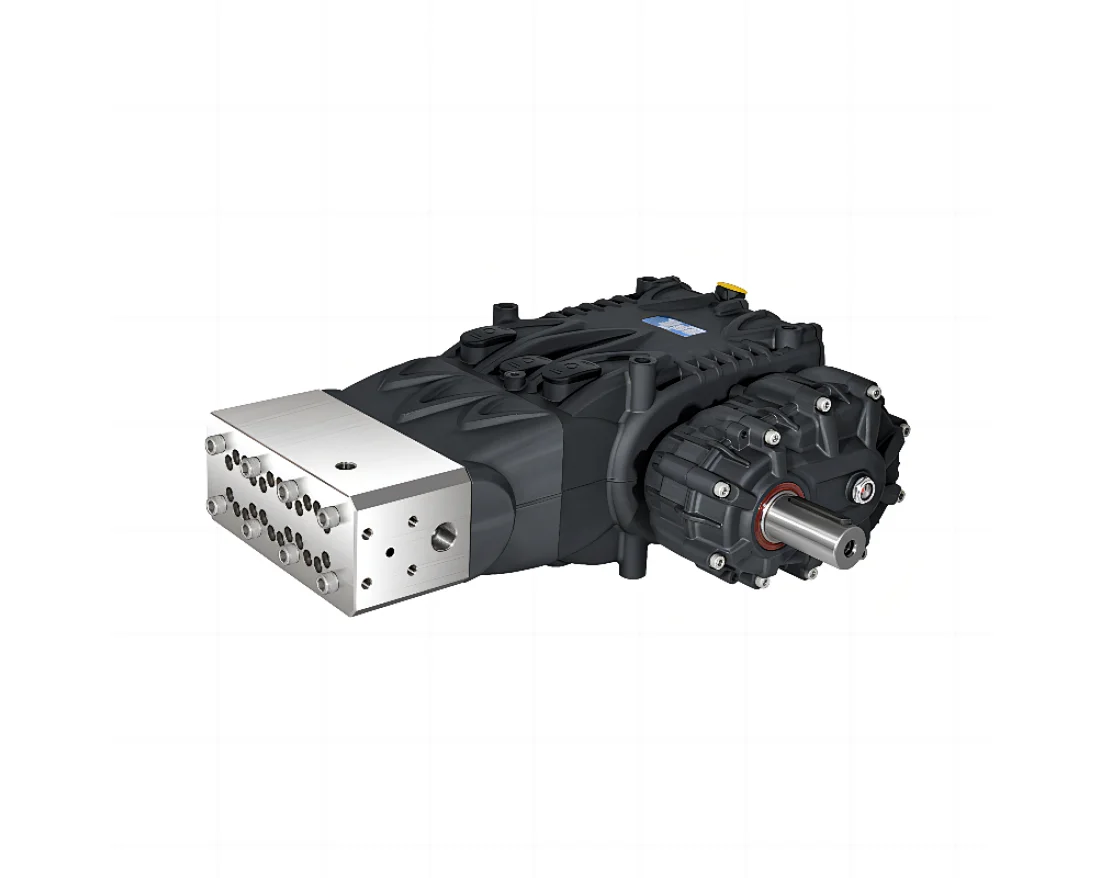

TFH 14-28L/min 1100-2000bar High Pressure Pump with Gearbox
- Min. Order: 1
- Specification Code: TFH
- Specification Description: Stainless Steel

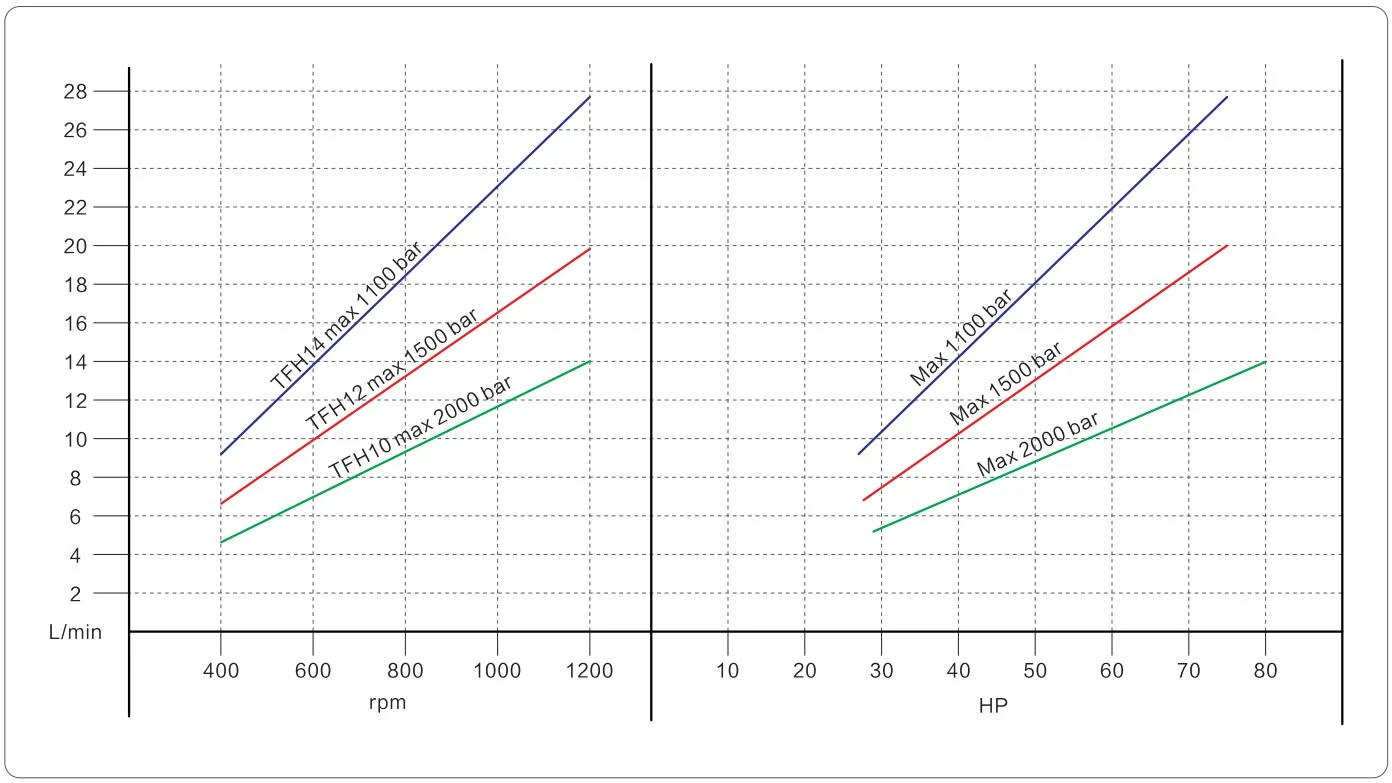

TFH Series High Pressure Plunger Pump | |||||||||
Model | Flow Rate | Max Pressure | Speed (r.p.m) | Power | Weight | ||||
L/min | gpm | bar | p.s.i | Mpa | 1:1.25 1:1.5 1:1.83 | hp | kw | kg | |
TFH10 | 14 | 3.7 | 2000 | 29000 | 200 | 1500/1800/2200 | 75 | 55 | 78 |
TFH12 | 20 | 5.3 | 1500 | 21750 | 150 | 1500/1800/2200 | 75 | 55 | 78 |
TFH14 | 28 | 7.4 | 1100 | 15950 | 110 | 1500/1800/2200 | 75 | 55 | 78 |



It is widely used in high pressure, large flow and occasions where the flow needs to be adjusted.
