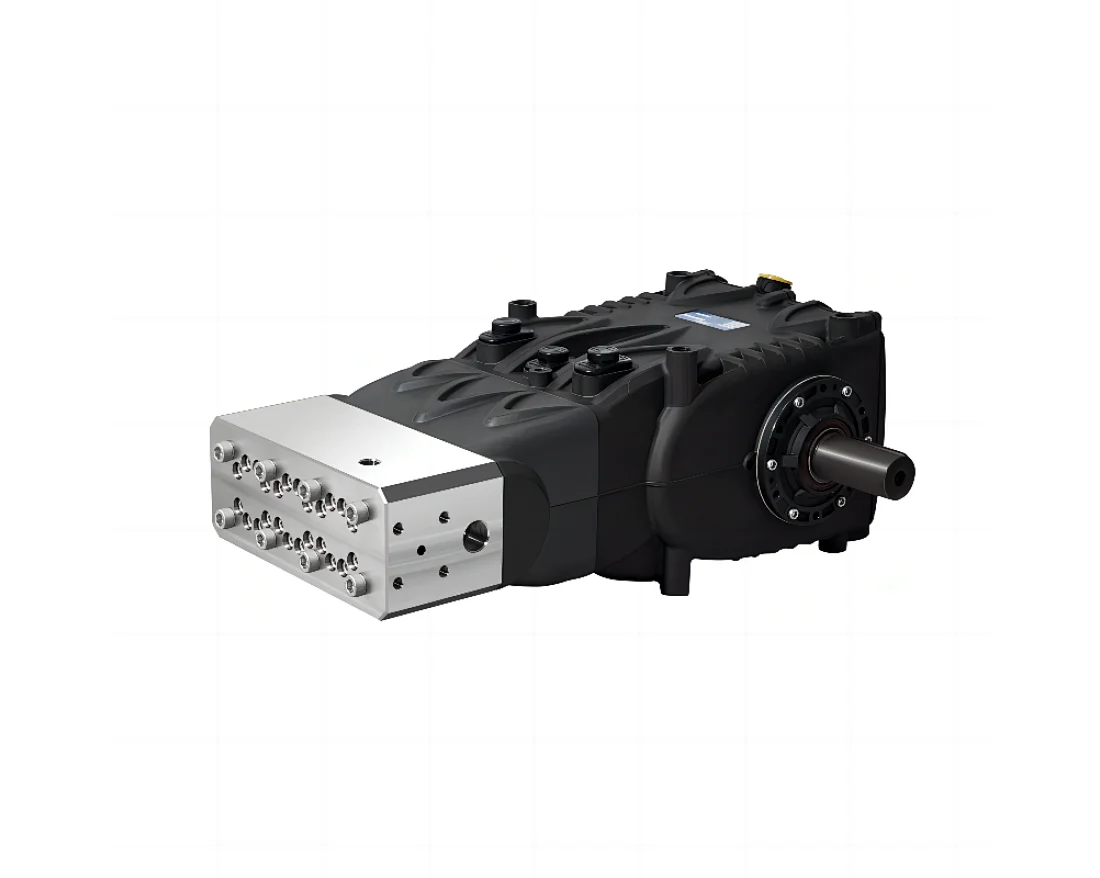

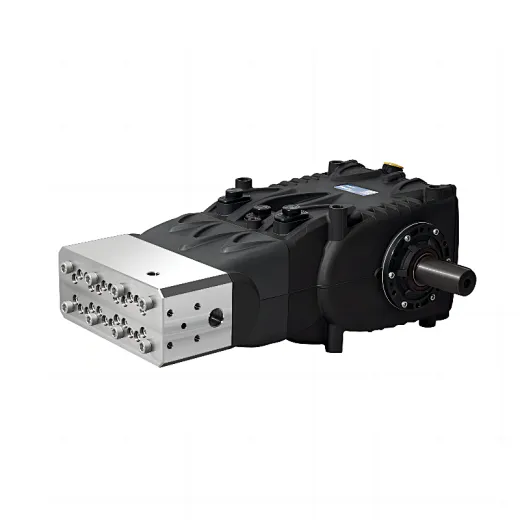

TF 8-23L/min Ultra High Pressure Pump max to 2000bar
- Model: TF
- 316L Stainless Steel Pump Head
TF Series High Pressure Plunger Pump | |||||||||
Model | Flow Rate | Max Pressure | Speed | Power | Weight | ||||
L/min | gpm | bar | Mpa | p.s.i | r.p.m | hp | kw | kg | |
TF10 | 5.4 | 1.4 | 2500 | 250 | 36250 | 460 | 22.6 | 16.6 | 65.5 |
TF12 | 8.8 | 2.3 | 2000 | 200 | 29000 | 520 | 47.1 | 34.6 | 65.5 |
TF14 | 23.1 | 6.1 | 1500 | 150 | 21750 | 1000 | 92.3 | 67.9 | 65.5 |
TF16 | 30.2 | 8 | 1000 | 100 | 14500 | 1000 | 80.4 | 59.1 | 65.5 |




It is widely used in high pressure, large flow and occasions where the flow needs to be adjusted.
