GDT 29-56L/min Max 600 Bar Chemical Pump
GDT
1
Quantity:
- Min. Order:1
- Color:/
- Specification Code:GDT
- Specification Description:STAINLESS STEEL
PLUNGER PUMP

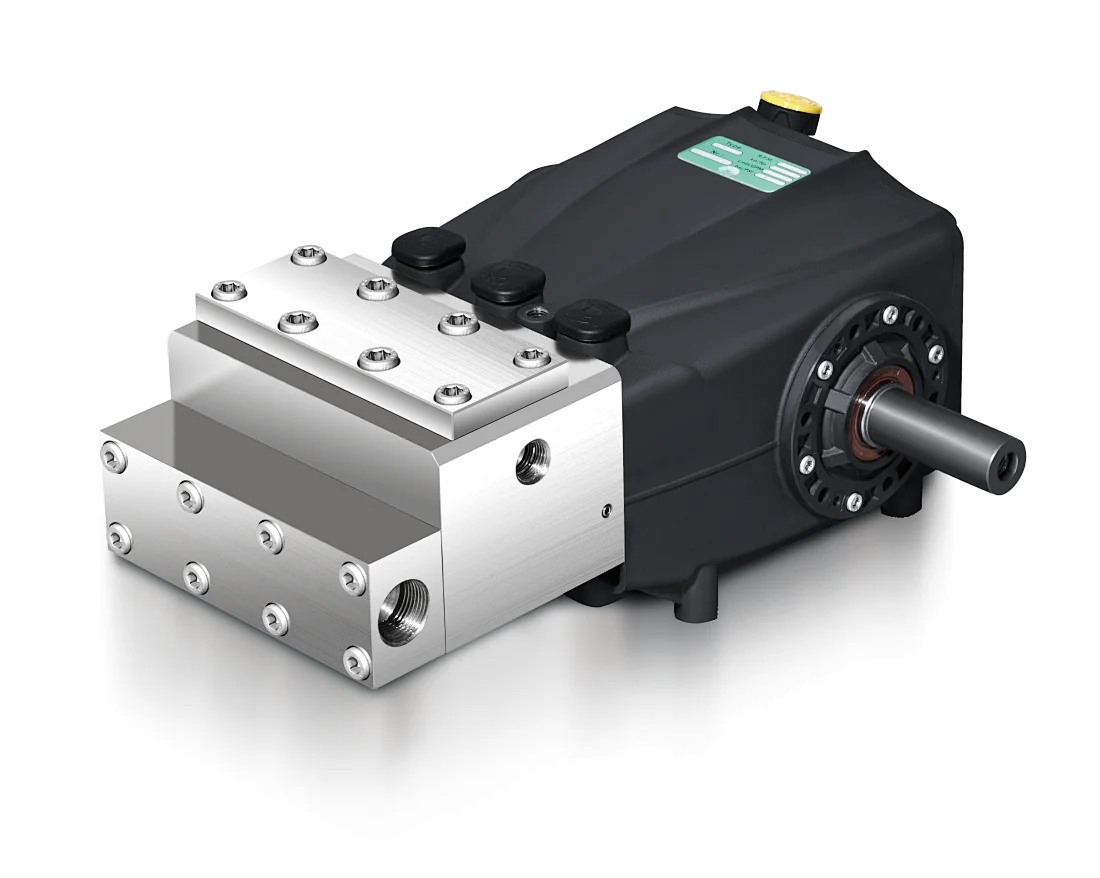

TheGDT triplexplungerpump, also called plunger pump, car washer pump, chemical pump, industrial pump,
is a cold water spray plunger pump with a stainless steel pump head.
It is best for medicine and chemical industry, seawater desalination equipment, fire fighting equipment and other application fields.
Flow Rate: 29-56 LPM/ 7.6-14.8 GPM
Max Pressure: 250-600 Bar/3625-8700 PSI
Power Requie: 27-34 KW/ 37-46 HP
Our plunger pumps have a 1-2 year warranty. We provide 24/7 online technical support to provide you with considerate service.
| MODEL | Max Flow | Max Pressure | Speed | Power Require | Weight | ||||
| L/min | gpm | bar | p.s.i | Mpa | r.p.m | hp | kw | kg | |
| GDT18 | 29 | 7.6 | 600 | 8700 | 60 | 1450 | 46 | 34 | 39 |
| GDT20 | 36 | 9.5 | 450 | 6525 | 45 | 1450 | 42 | 31 | 39 |
| GDT22 | 43 | 11.3 | 300 | 4350 | 30 | 1450 | 34 | 25 | 39 |
| GDT25 | 56 | 14.8 | 250 | 3625 | 25 | 1450 | 37 | 27 | 39 |
TheGDT triplexplungerpump, also called plunger pump, car washer pump, chemical pump, industrial pump,
is a cold water spray plunger pump with a stainless steel pump head.
It is best for medicine and chemical industry, seawater desalination equipment, fire fighting equipment and other application fields.
Flow Rate: 29-56 LPM/ 7.6-14.8 GPM
Max Pressure: 250-600 Bar/3625-8700 PSI
Power Requie: 27-34 KW/ 37-46 HP
Our plunger pumps have a 1-2 year warranty. We provide 24/7 online technical support to provide you with considerate service.
