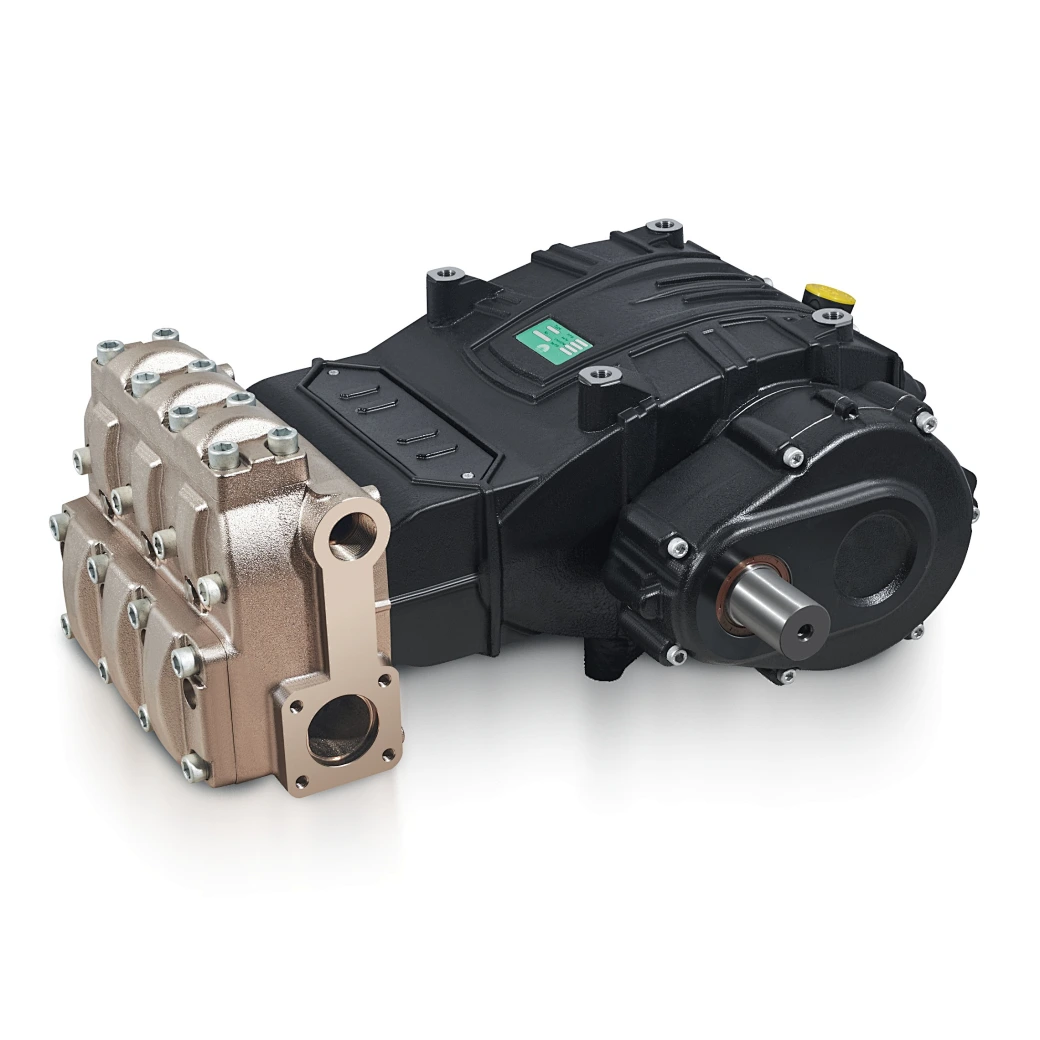

267-399L/min Sewer dredge vehicle pump
FW55
1
Quantity:
- Min. Order:1
- Color:/
- Specification Code:FW55
- Specification Description:CAST IRON
sewer dredge vehicle PUMP
TheFW55 plungerpump,
also called heavy flow plunger pump,sewage grinder pump,ejector pump,high pressure pump,waste water pump.
It is widely used in high pressure, large flow and occasions where the flow needs to be adjusted.
| MODEL | Max Flow | Max Pressure | Speed(r.p.m) | Power Require | Weight | ||||
| L/min | gpm | bar | p.s.i | Mpa | 1:1.87 1:2.23 1:2.72 | hp | kw | kg | |
| FW32 | 135 | 35.7 | 300 | 4350 | 30 | 1500/1800/2200 | 110 | 80 | 239 |
| FW36 | 171 | 45.2 | 240 | 3480 | 24 | 1500/1800/2200 | 111 | 80 | 239 |
| FW40 | 211 | 55.7 | 210 | 3045 | 21 | 1500/1800/2200 | 120 | 87 | 239 |
TheFW55 plungerpump,
also called heavy flow plunger pump,sewage grinder pump,ejector pump,high pressure pump,waste water pump.
It is widely used in high pressure, large flow and occasions where the flow needs to be adjusted.
