FBM Plunger Type Pump for Spray Pool
FBM
1
Quantity:
- Min. Order: 1
- Specification Code: FBM
- Specification Description: Brass Head
Plunger Pump
| FBM Series High Pressure Plunger Pump | |||||||||
| Model | Flow Rate | Max Pressure | Power | Speed | Plunger Dia | Stroke | |||
| L/min | gpm | bar | p.s.i | hp | kw | r.p.m | mm | mm | |
| FBM0810 | 8 | 2.11 | 100 | 1450 | 2 | 1.5 | 1450 | 18 | 10 |
| FBM1210 | 12 | 3.17 | 100 | 1450 | 3 | 2.2 | 1450 | 18 | 10 |
| FBM1218 | 12 | 3.17 | 180 | 2610 | 5.5 | 4 | 1450 | 18 | 12 |
| FBM1510 | 15 | 3.96 | 100 | 1450 | 4 | 3 | 1450 | 18 | 14 |
| FBM1514 | 15 | 3.96 | 140 | 2035 | 5.5 | 4 | 1450 | 18 | 14 |
| FBM1518 | 15 | 3.96 | 180 | 2310 | 7.4 | 5.5 | 1450 | 20 | 14 |
| FBM1910 | 19 | 5.02 | 100 | 1450 | 5.5 | 4 | 1450 | 18 | 14 |
| FBM1915 | 19 | 5.02 | 100 | 1450 | 7.4 | 5.5 | 1450 | 20 | 14 |

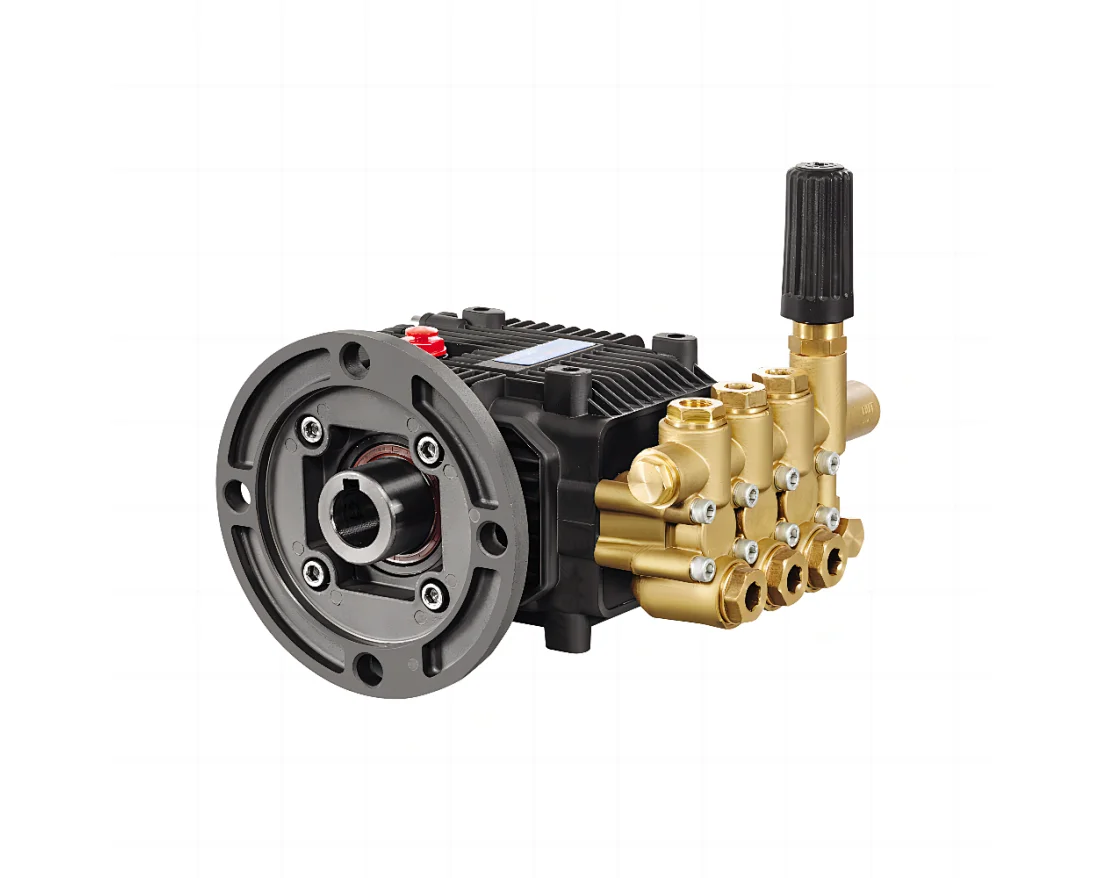

The FBM triplex plunger pump, also called plunger pump, triplex pump, high pressure pump, water jet pump, water fountain pump, fountain pump,
is a cold water spray plunger pump with a brass pump head. It is best for car washing, fountain, floor washing and other applications.
Our plunger pumps have a 1-2 year warranty. We provide 24/7 online technical support to provide you with considerate service.
