183-561L/min Mud pump triplex plunger pump
FGS
1
Quantity:
  • Min. Order:1
  • Color:/
  • Specification Code:FGS
  • Specification Description:CAST IRON
mud pump


MODELMax FlowMax PressureSpeed(r.p.m)Power RequireWeight
L/mingpmbarp.s.iMpa1:2.22  1:2.65  1:3.29hpkwkg
FGS4018348.44005800401500/1800/2200190140480
FGS4523261.33004350301500/1800/2200181133480
FGS5028775.82503625251500/1800/2200186137480
FGS5534791.72203190221500/1800/2200181133480
FGS60413109.12002900201500/1800/2200182134480
FGS65485128.11802610181500/1800/2200189139480
FGS70561148.11001450101500/1800/2200183135480

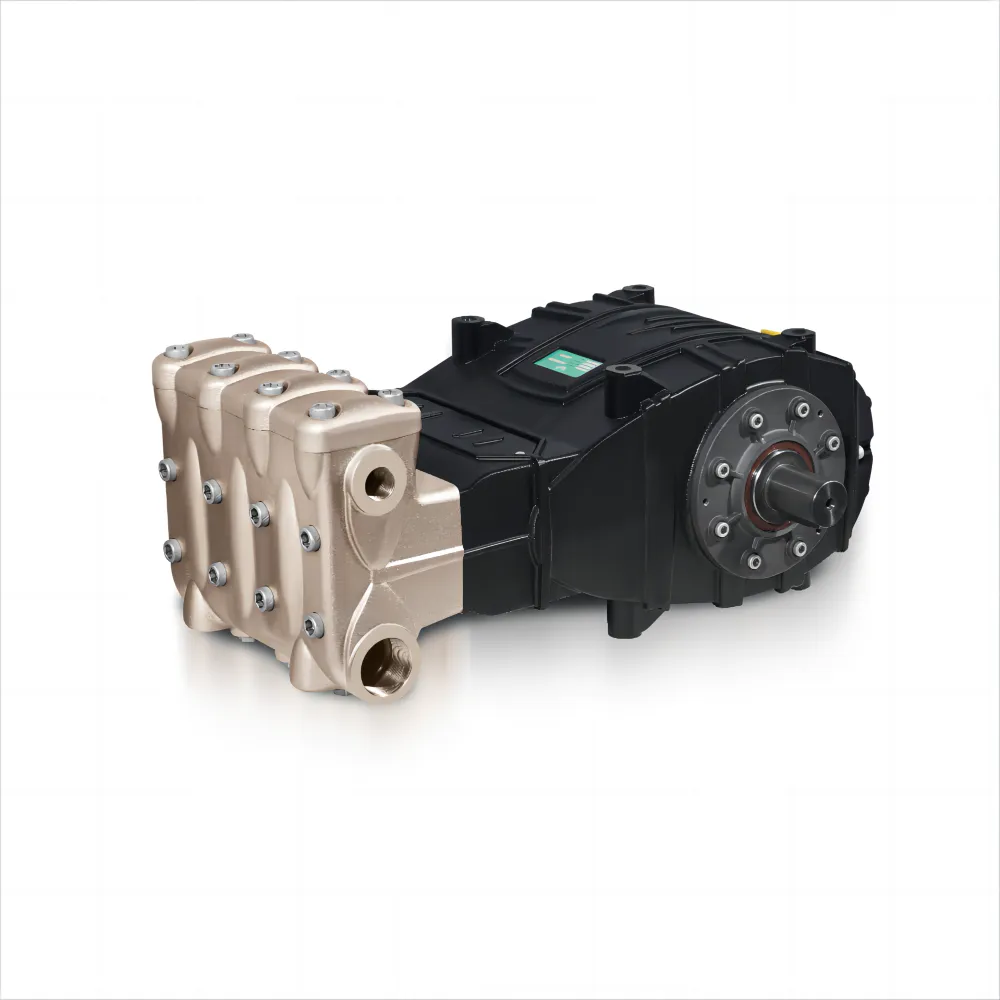

TheFGS triplexplungerpump, also called sewer pump, mud pump, water jet pump, high flow pump, high pressure pump.
It is widely used in high pressure, large flow and occasions where the flow needs to be adjusted.


Flow Rate: 183-561 LPM/ 48.4-148.1 GPM
Max Pressure: 100-400 Bar/1450-5800 PSI
Power Requie: 133-140 KW/ 181-190 HP

Our plunger pumps have a 1-2 year warranty. We provide 24/7 online technical support to provide you with considerate service.
