168-263L/min Sewage Pump FV Series
FV
1
Quantity:
- Min. Order:1
- Color:/
- Specification Code:FV
- Specification Description:CAST IRON
sewage pump

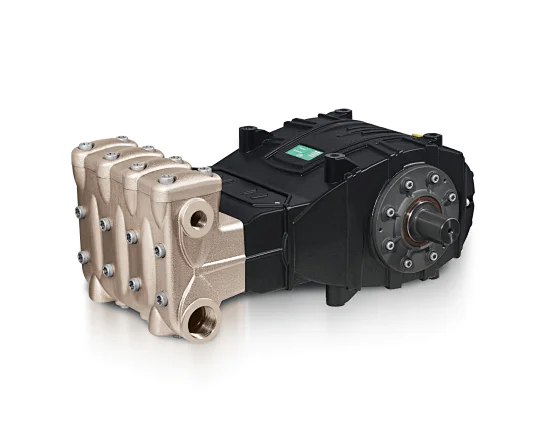

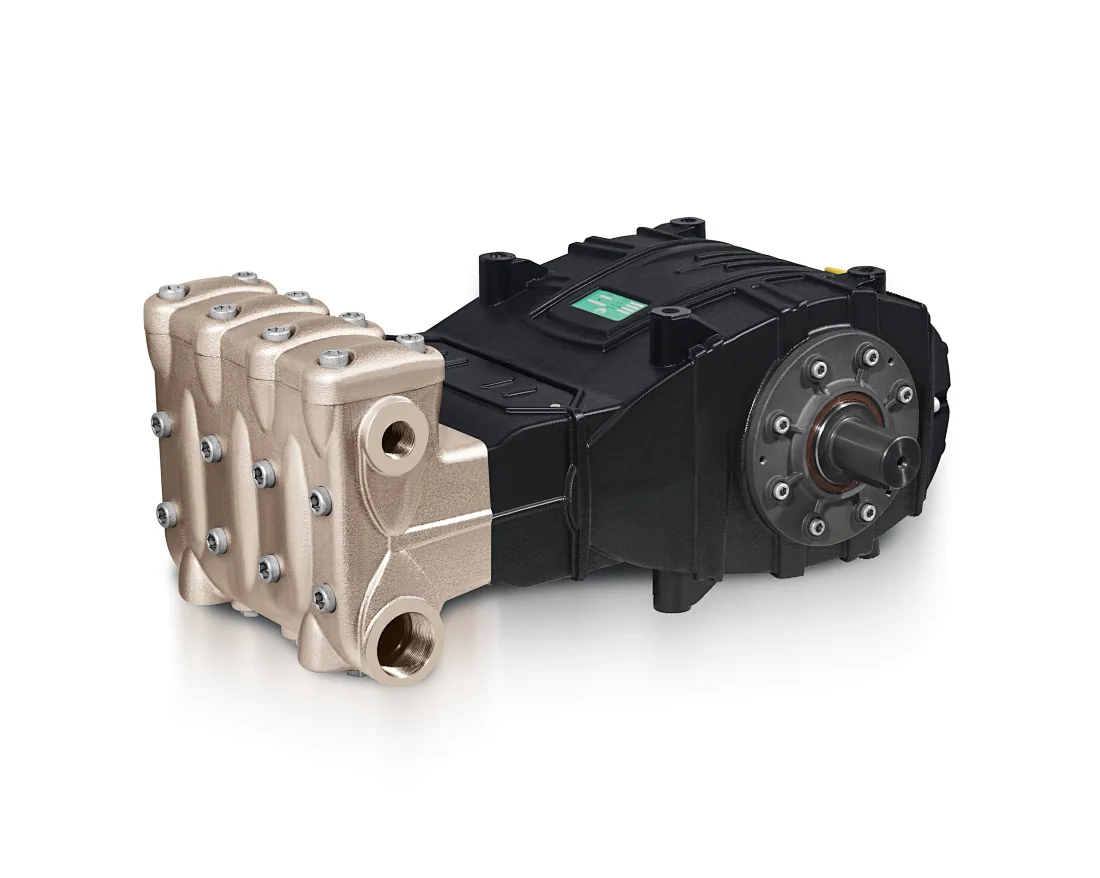

TheFV plungerpump, also called sewage pump system,sewage pump,slurry pump,dirty water pump,basement sewage pump.
It is widely used in high pressure, large flow and occasions where the flow needs to be adjusted.
Flow Rate: 168-263 LPM/ 45-70 GPM
Max Pressure: 160-250 Bar/2320-3625 PSI
Power Requie: 83 KW/ 113 HP
Our plunger pumps have a 1-2 year warranty. We provide 24/7 online technical support to provide you with considerate service.
| MODEL | Max Flow | Max Pressure | Speed | Power Require | Weight | ||||
| L/min | gpm | bar | p.s.i | Mpa | r.p.m | hp | kw | kg | |
| FV32 | 168 | 44.9 | 250 | 3625 | 25 | 1000 | 112 | 81 | 239 |
| FV36 | 213 | 56.2 | 200 | 2800 | 20 | 1000 | 112 | 82 | 239 |
| FV40 | 263 | 69.5 | 160 | 2320 | 16 | 1000 | 108 | 79 | 239 |
TheFV plungerpump, also called sewage pump system,sewage pump,slurry pump,dirty water pump,basement sewage pump.
It is widely used in high pressure, large flow and occasions where the flow needs to be adjusted.
Flow Rate: 168-263 LPM/ 45-70 GPM
Max Pressure: 160-250 Bar/2320-3625 PSI
Power Requie: 83 KW/ 113 HP
Our plunger pumps have a 1-2 year warranty. We provide 24/7 online technical support to provide you with considerate service.
