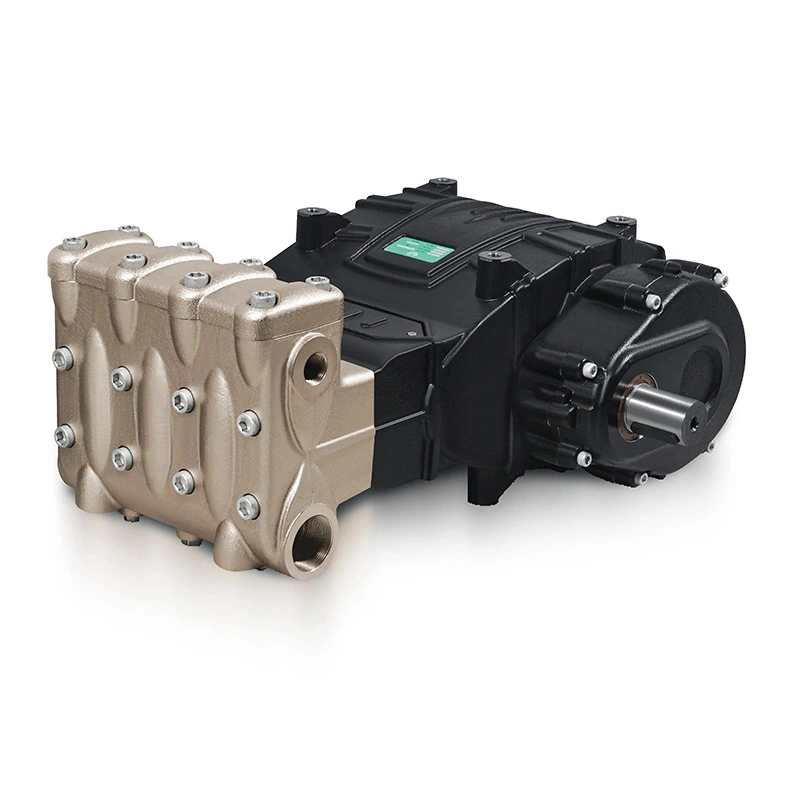

135-211L/min Plunger pump for sewer cleaning
BOTUO FW is our high flow piston pump dedicated to the development of unclogging vehicles. The maximum flow rate can reach 399LPM. We also provide a variety of speed ratio gearboxes to give you more power choices.In Korea, Brazil, Israel, Italy and other countries, the FW has been in service for many years with outstanding performance.
FW
1
Quantity:
- Min. Order:1
- Color:/
- Specification Code:FW
- Specification Description:CAST IRON
PLUNGER PUMP FOR SEWER CLEANING
TheFW plungerpump, also called water jet cutter pump, sump pump basement, chemical dosing pump, industrial pump, slurry pump.
It is widely used in high pressure, large flow and occasions where the flow needs to be adjusted.
| MODEL | Max Flow | Max Pressure | Speed(r.p.m) | Power Require | Weight | ||||
| L/min | gpm | bar | p.s.i | Mpa | 1:1.87 1:2.23 1:2.72 | hp | kw | kg | |
| FW32 | 135 | 35.7 | 300 | 4350 | 30 | 1500/1800/2200 | 110 | 80 | 239 |
| FW36 | 171 | 45.2 | 240 | 3480 | 24 | 1500/1800/2200 | 111 | 80 | 239 |
| FW40 | 211 | 55.7 | 210 | 3045 | 21 | 1500/1800/2200 | 120 | 87 | 239 |
TheFW plungerpump, also called water jet cutter pump, sump pump basement, chemical dosing pump, industrial pump, slurry pump.
It is widely used in high pressure, large flow and occasions where the flow needs to be adjusted.
