GDF 30-73L/min High Pressure Stainless steel Pump 600Bar
GDF
1
Quantity:
- Min. Order:1
- Color:/
- Specification Code:GDF
- Specification Description:STAINLESS STEEL

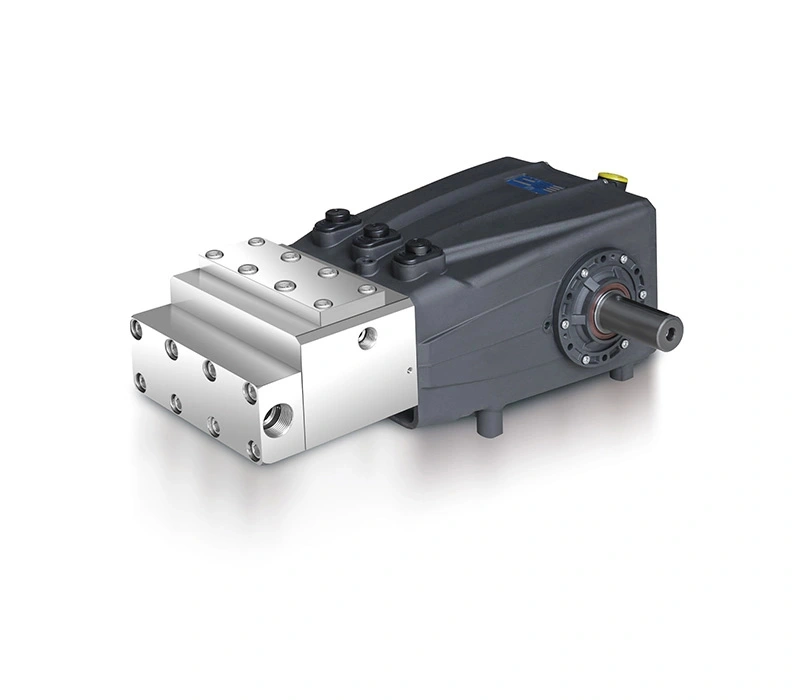

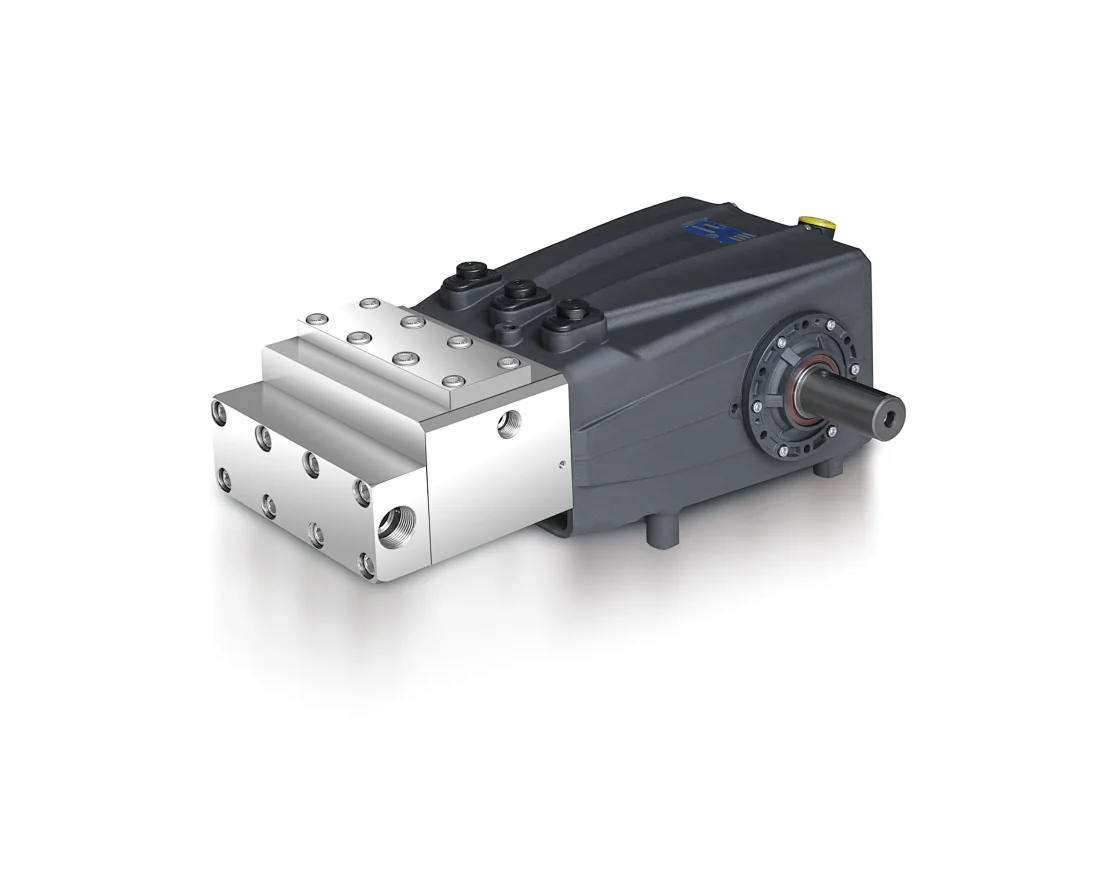

PLUNGER PUMP
TheGDF triplexplungerpump, also called high pressure pump, plunger pump, stainless steel pump, sea water pump, ro pump,
is a cold water spray plunger pump with a stainless steel pump head.
It is best for medicine and chemical industry, seawater desalination equipment, fire fighting equipment and other application fields.
Flow Rate: 30-73 LPM/ 7.93-19.3 GPM
Max Pressure: 280-600 Bar/4060-8700 PSI
Power Requie: 36-37 KW/ 49-50 HP
Our plunger pumps have a 1-2 year warranty. We provide 24/7 online technical support to provide you with considerate service.

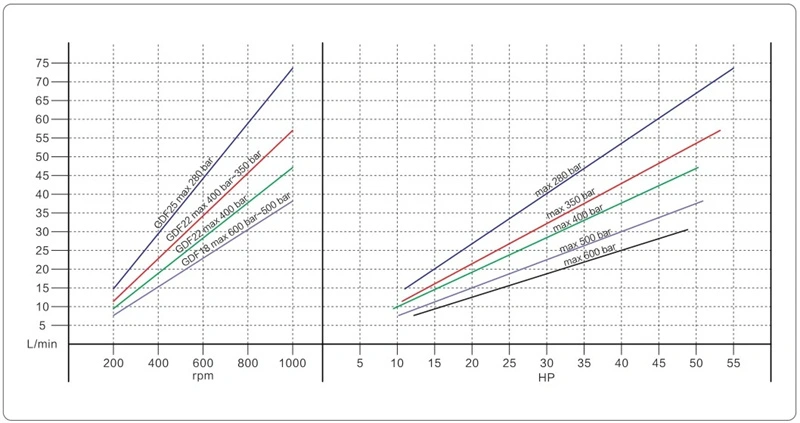

| MODEL | Max Flow | Max Pressure | Speed | Power Require | Weight | ||||
| L/min | gpm | bar | p.s.i | Mpa | r.p.m | hp | kw | kg | |
| GDF18 | 30 | 8.1 | 600 | 8700 | 60 | 800 | 49 | 36 | 62.5 |
| 38 | 10.1 | 500 | 7250 | 50 | 1000 | 50 | 37 | 62.5 | |
| GDF20 | 47 | 12.4 | 400 | 5800 | 40 | 1000 | 50 | 37 | 62.5 |
| GDF22 | 45 | 12.0 | 400 | 5800 | 40 | 800 | 49 | 36 | 62.5 |
| 57 | 15.0 | 350 | 5075 | 35 | 1000 | 50 | 37 | 62.5 | |
| GDF25 | 73 | 19.3 | 280 | 4060 | 28 | 1000 | 50 | 37 | 62.5 |
TheGDF triplexplungerpump, also called high pressure pump, plunger pump, stainless steel pump, sea water pump, ro pump,
is a cold water spray plunger pump with a stainless steel pump head.
It is best for medicine and chemical industry, seawater desalination equipment, fire fighting equipment and other application fields.
Flow Rate: 30-73 LPM/ 7.93-19.3 GPM
Max Pressure: 280-600 Bar/4060-8700 PSI
Power Requie: 36-37 KW/ 49-50 HP
Our plunger pumps have a 1-2 year warranty. We provide 24/7 online technical support to provide you with considerate service.
