Automatic car wash pump max flow 240L/Min
BOTUO GF High performance plunger pump is suitable for special purpose vehicles, dredge vehicles and sprinklers. Its excellent performance has attracted the favor of numerous equipment manufacturers. A series of well-known factories such as Longma and Zoomline have cooperated with us
GF
1
Quantity:
- Min. Order:1
- Color:/
- Specification Code:GF
- Specification Description:CAST IRON

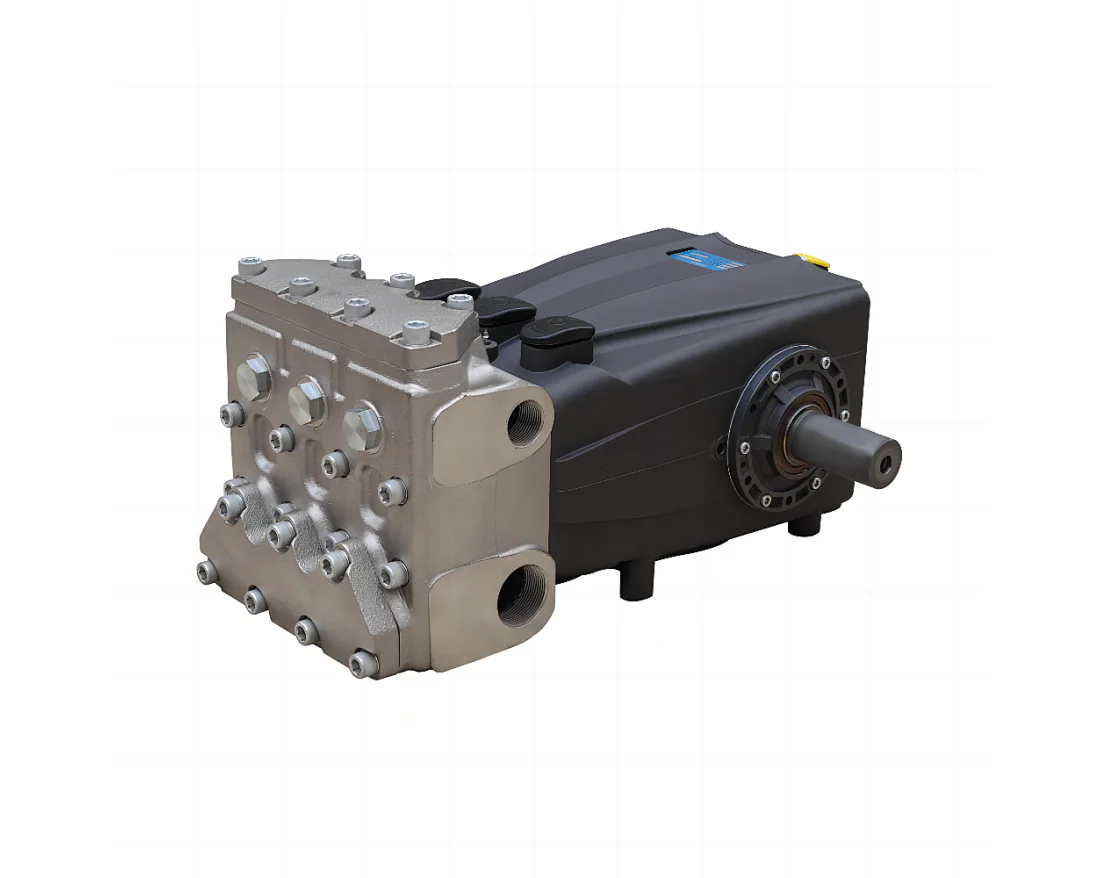

PLUNGER PUMP FOR ROAD SWEEPER
GF Plunger Pump for road sweeper and sanitation truck, also called for car wash pump, truck pump, concrete pumper.
It is widely used in high pressure, large flow and occasions where the flow needs to be adjusted.

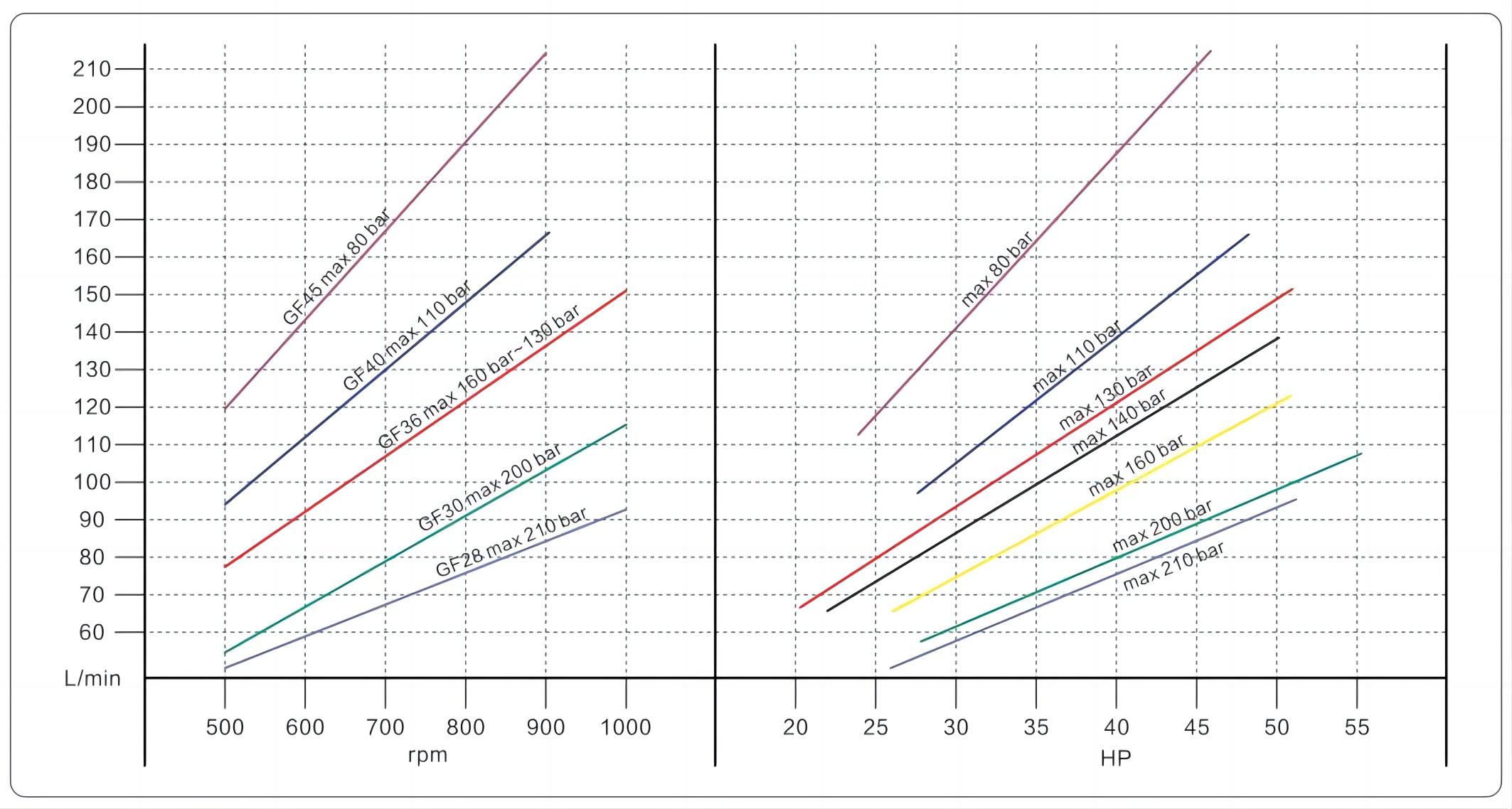

| MODEL | Max Flow | Max Pressure | Speed | Power Require | Weight | ||||
| L/min | gpm | bar | p.s.i | Mpa | r.p.m | hp | kw | kg | |
| GF28 | 92 | 24.3 | 210 | 3045 | 21 | 1000 | 50 | 37 | 69 |
| GF30 | 106 | 28.0 | 200 | 2900 | 20 | 1000 | 55 | 40 | 69 |
| GF36 | 122 | 32.2 | 160 | 2320 | 16 | 800 | 50 | 37 | 69 |
| 137 | 36.2 | 140 | 2030 | 14 | 900 | 50 | 37 | 69 | |
| 153 | 40.4 | 130 | 1885 | 13 | 1000 | 52 | 38 | 69 | |
| GF40 | 169 | 44.6 | 110 | 1595 | 11 | 900 | 49 | 36 | 69 |
| 189 | 50 | 110 | 1595 | 11 | 1000 | 56 | 41 | 69 | |
| GF45 | 215 | 56.8 | 80 | 1160 | 8 | 900 | 45 | 33 | 69 |
| 239 | 63.1 | 80 | 1160 | 8 | 1000 | 51 | 37 | 69 | |
GF Plunger Pump for road sweeper and sanitation truck, also called for car wash pump, truck pump, concrete pumper.
It is widely used in high pressure, large flow and occasions where the flow needs to be adjusted.
