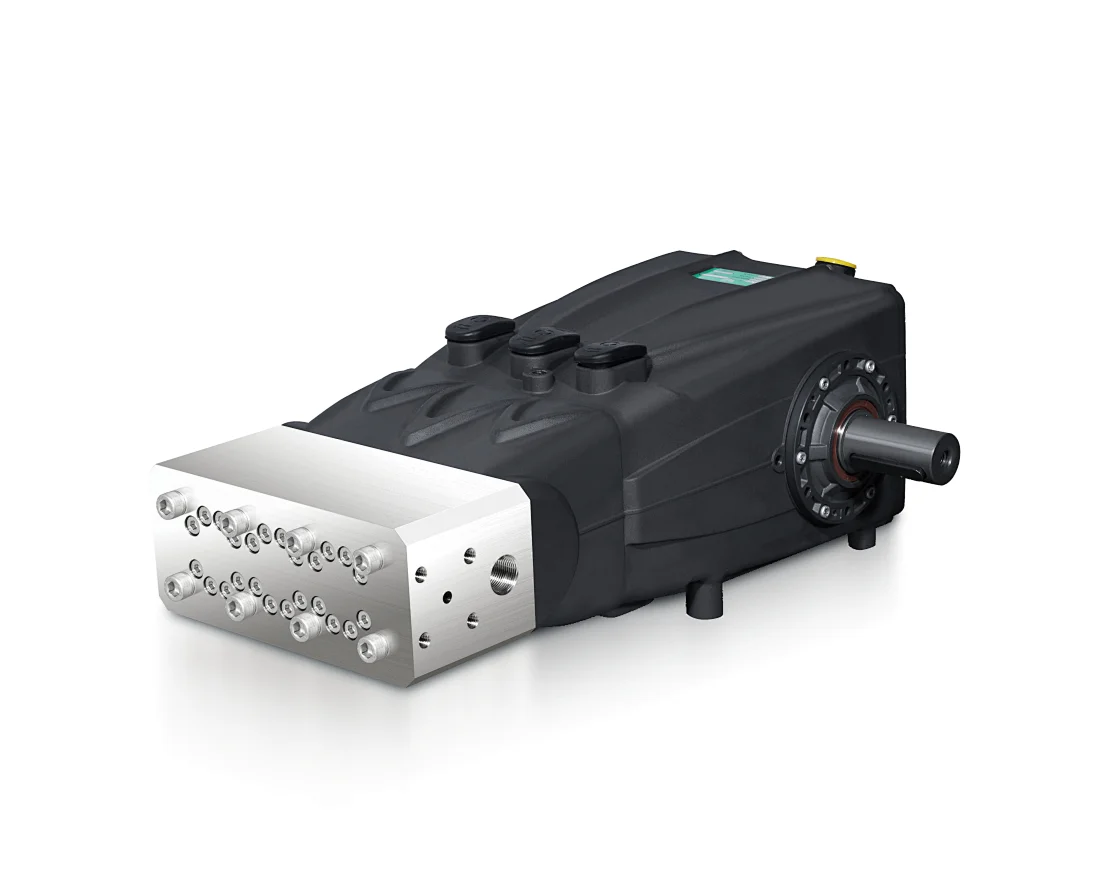

Ultra High Pressure Plunger Pump 2000bar/2900psi
Botuo Ultra HIGH PRESSURE GTF TYPE PUMP, WITH 2500BAR ULTRA HIGH pressure cleaning capacity, flow range of 6-23 liters, stainless steel pump head, with strong rigidity, rust removal, paint removal, concrete cleaning applications
GTF
1
Quantity:
- Min. Order:1
- Color:/
- Specification Code:GTF
- Specification Description:STAINLESS STEEL
Ultra High Pressure Piston Pump
GTF Plunger Pump, also called high pressure pump,stainless steel pumps,sea water pump,water pumps for sale,water pump engine.
It is widely used in high pressure, large flow and occasions where the flow needs to be adjusted.
| MODEL | Max Flow | Max Pressure | Speed | Power Require | Weight | ||||
| L/min | gpm | bar | p.s.i | Mpa | r.p.m | hp | kw | kg | |
| GTF10 | 8 | 2.2 | 2000 | 29000 | 200 | 700 | 44 | 32 | 65.5 |
| GTF12 | 14 | 3.7 | 1500 | 21750 | 150 | 800 | 55 | 40 | 65.5 |
| 17 | 4.5 | 1500 | 21750 | 150 | 1000 | 69 | 50 | 65.5 | |
| GTF14 | 19 | 5.0 | 1100 | 15950 | 110 | 800 | 54 | 40 | 65.5 |
| 23 | 6.1 | 900 | 13050 | 90 | 1000 | 54 | 40 | 65.5 | |
GTF Plunger Pump, also called high pressure pump,stainless steel pumps,sea water pump,water pumps for sale,water pump engine.
It is widely used in high pressure, large flow and occasions where the flow needs to be adjusted.
