DSP Brass Cylinder Plunger Pump Max Pressure 500BAR/7200PSI
- Min. Order: 1
- Specification Code: DSP
- Specification Description: Brass Head
DSP Series High Pressure Plunger Pump | |||||||||
Model | Flow Rate | Max Pressure | Power | Speed | Plunger Dia | Stroke | |||
L/min | gpm | bar | p.s.i | hp | kw | r.p.m | mm | mm | |
DSP2250 | 22 | 5.81 | 500 | 7250 | 30 | 22 | 1450 | 18 | 21 |
DSP3050 | 28 | 7.39 | 500 | 7250 | 30 | 22 | 1450 | 20 | 21 |
DSP4020 | 38 | 10.03 | 200 | 2900 | 20 | 15 | 1450 | 28 | 15 |
DSP5215 | 51 | 13.46 | 150 | 2175 | 30 | 22 | 1450 | 28 | 21 |

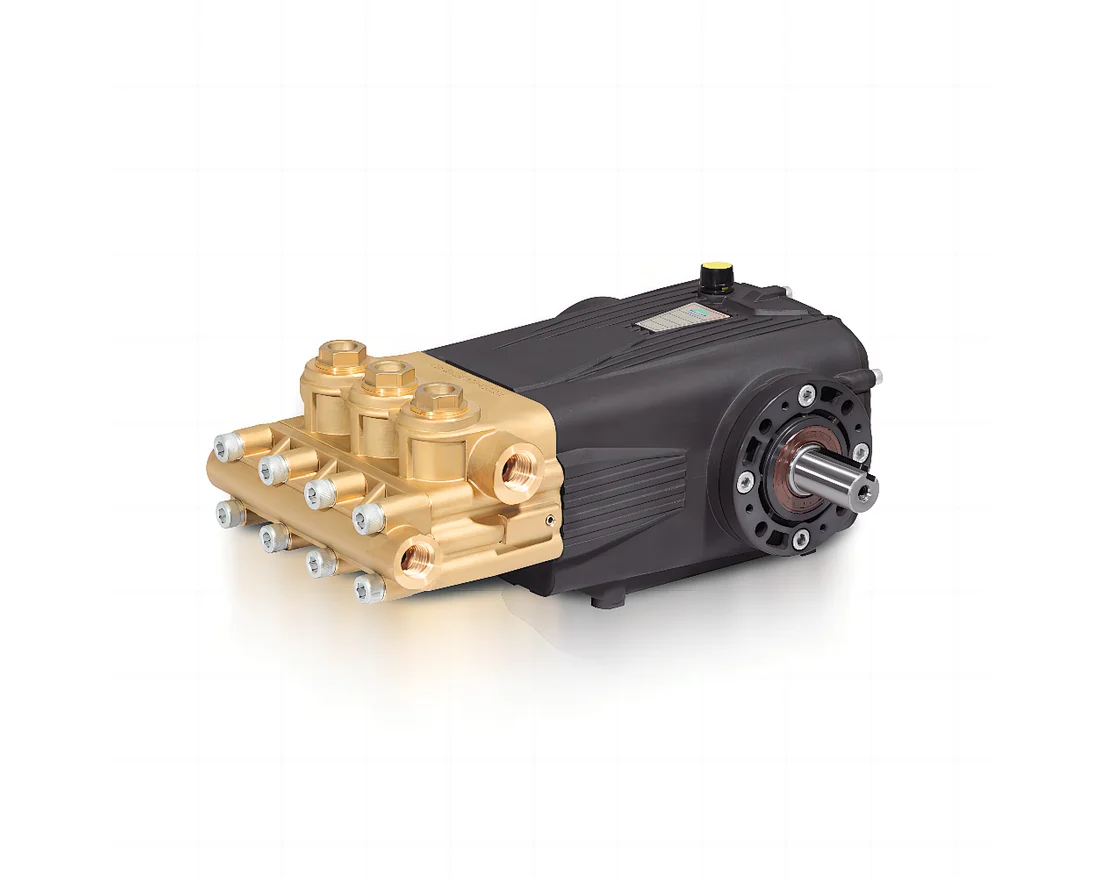

The DSP triplex plunger pump, also called constant pressure pump, sewage pump,water pressure pump, jet pump, washing pump, chemical pump,
is a cold water spray plunger pump with a brass pump head.
It is best for car washing, truck washing, floor washing, sewer washing, rust removal, concrete removal and other applications.
Our plunger pumps have a 1-2 year warranty. We provide 24/7 online technical support to provide you with considerate service.
