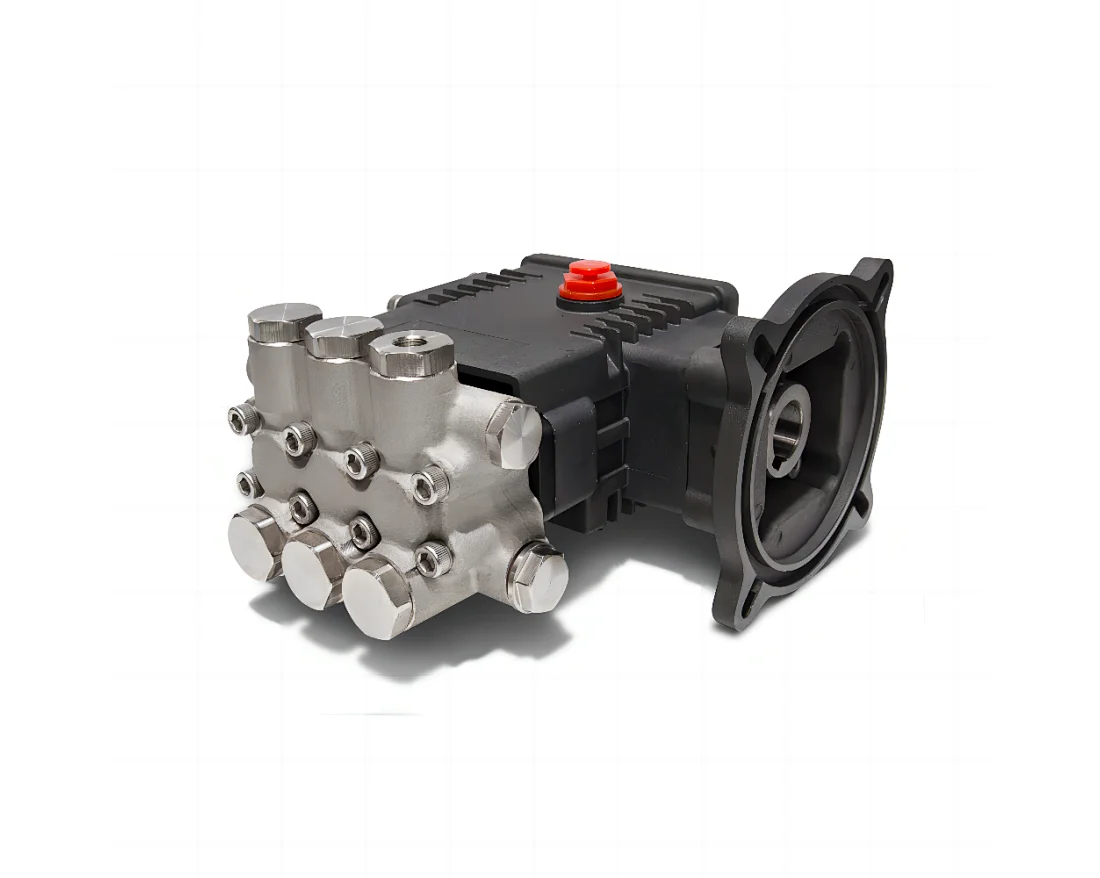

EL High Pressure Plunger Pump for Reverse Osmosis 2-6L/min 100Bar
EL
1 piece
Quantity:
Min. Order: 5
Specification Code: EL
Specification Description: Stainless Steel
High Pressure Pump
| EL Series High Pressure Plunger Pump | |||||||||
| Model | Flow Rate | Max Pressure | Power | Speed | Plunger Dia | Stroke | |||
| L/min | gpm | bar | p.s.i | hp | kw | r.p.m | mm | mm | |
| EL0210 | 2 | 0.53 | 100 | 1450 | 0.74 | 0.55 | 1450 | 15 | 3 |
| EL0410 | 4.6 | 1.22 | 100 | 1450 | 1 | 0.75 | 1450 | 15 | 6.5 |
| EL0610 | 6 | 1.59 | 150 | 1450 | 1.5 | 1.1 | 1450 | 15 | 7 |
EL pump is a high-pressure triplex plunger pump. EL pump has compact structure, small volume and light weight.
The pump has a high speed and can be directly connected with a 4-pole motor without deceleration equipment.
Applicable to: seawater desalination, acid and alkali resistant pumps, etc.
Net weight: 3.6KG
The pump has a high speed and can be directly connected with a 4-pole motor without deceleration equipment.
Applicable to: seawater desalination, acid and alkali resistant pumps, etc.
Net weight: 3.6KG
