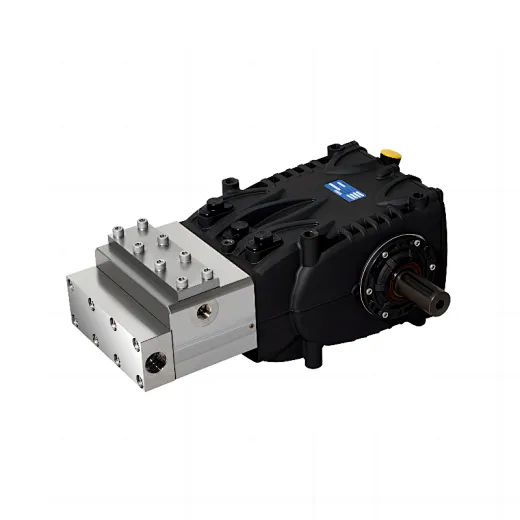

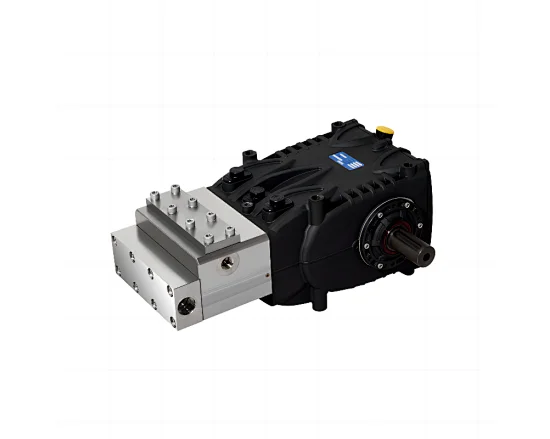

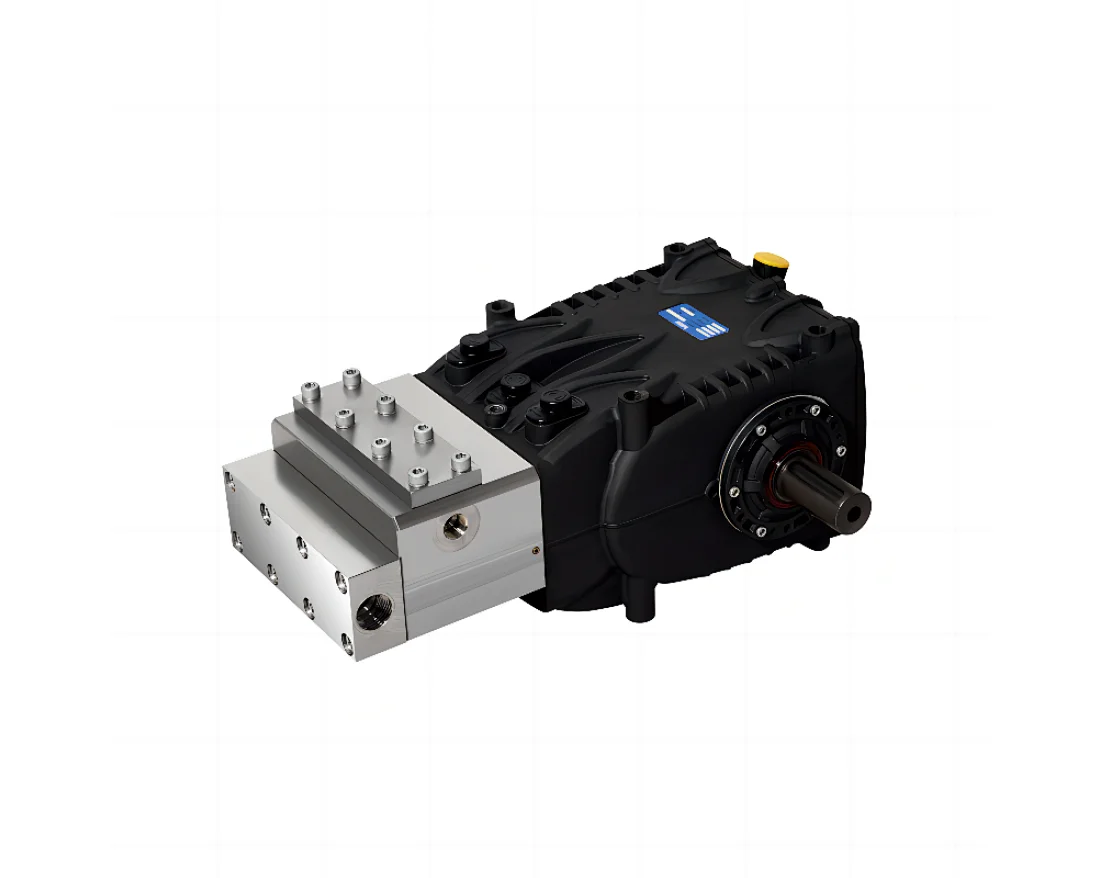

DF 30-70L/min 280-600bar 8-20gpm High Pressure Stainless Steel Pump
- Min. Order: 1
- Specification Code: DF
- Specification Description: Stainless Steel

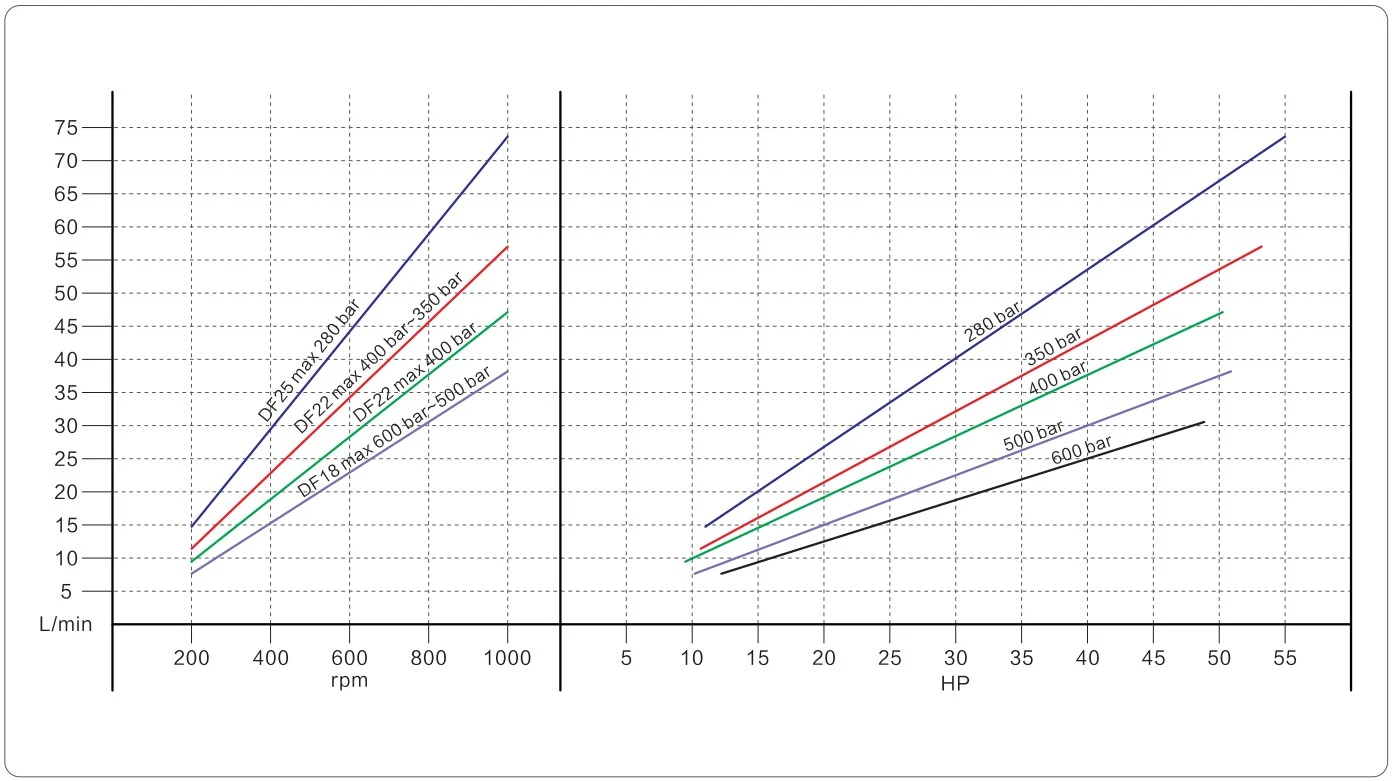

DF Series High Pressure Plunger Pump | |||||||||
Model | Flow Rate | Max Pressure | Speed | Power | Weight | ||||
L/min | gpm | bar | p.s.i | Mpa | r.p.m | hp | kw | kg | |
DF18 | 31 | 8.1 | 600 | 8700 | 60 | 800 | 49 | 36 | 62.5 |
38 | 10.1 | 500 | 7250 | 50 | 1000 | 50 | 37 | 62.5 | |
DF20 | 47 | 12.4 | 400 | 5800 | 40 | 1000 | 50 | 37 | 62.5 |
DF22 | 46 | 12 | 400 | 5800 | 40 | 800 | 49 | 36 | 62.5 |
57 | 15 | 350 | 5075 | 35 | 1000 | 53 | 39 | 62.5 | |
DF25 | 74 | 19.3 | 280 | 4060 | 28 | 1000 | 55 | 40 | 62.5 |




It is widely used in high pressure, large flow and occasions where the flow needs to be adjusted.
