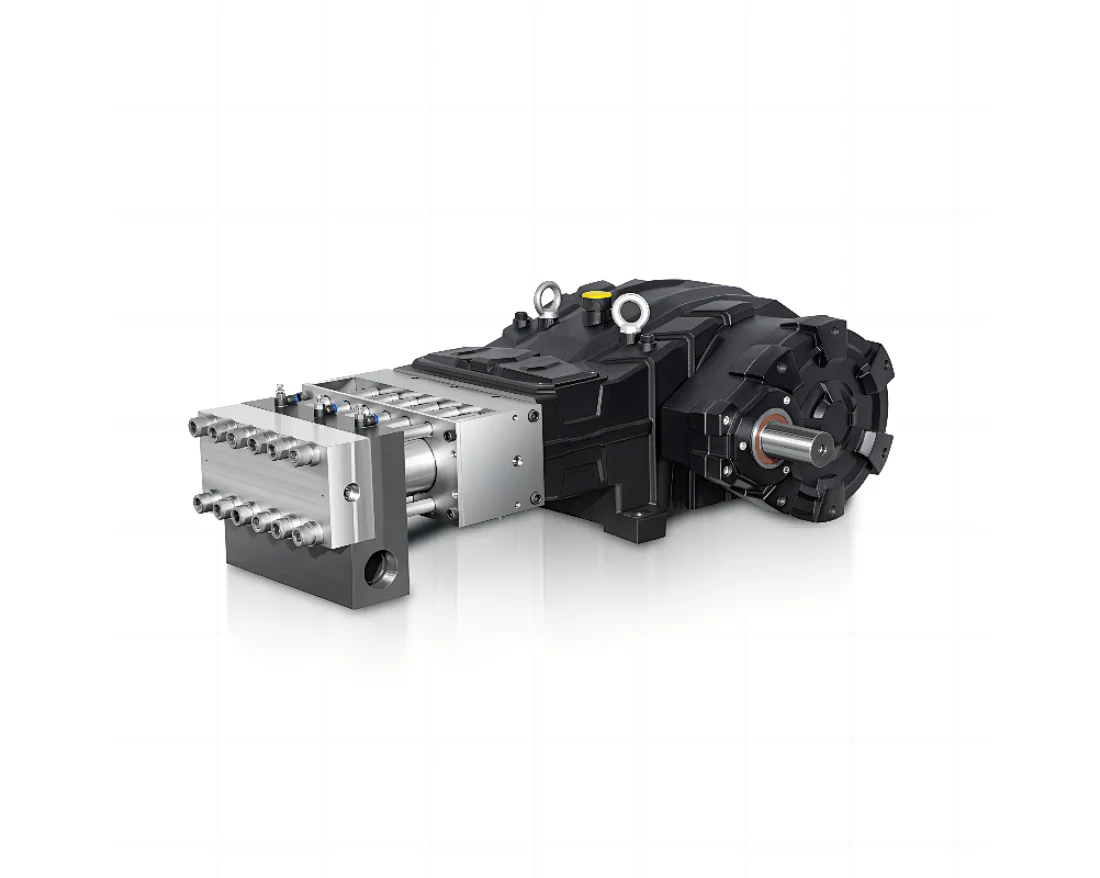

MGU 20-60L[M 1200-2700bar High Pressure Stainless Steel Pump
MGU
1 piece
Quantity:
- Min. Order: 1
- Specification Code: MGU
- Specification Description: Stainless Steel
Ultra High Pressure Pump
| MGU Series High Pressure Plunger Pump | |||||||||||
| Model | Flow Rate | Max Pressure | Speed Ratio (r.p.m) | Power | Plunger Diameter | Crankshaft Stroke | Speed | ||||
| L/min | gpm | bar | p.s.i | Mpa | 1:1.92 1:2.17 1:2.65 | hp | kw | mm | mm | r.p.m | |
| MGU12 | 19 | 5 | 2700 | 39150 | 270 | 1500/1800/2200 | 130 | 96 | 12.7 | 72 | 679 |
| MGU14 | 24 | 6 | 2500 | 36250 | 250 | 1500/1800/2200 | 153 | 112 | 14.2875 | 72 | 679 |
| MGU16 | 29 | 8 | 2000 | 29000 | 200 | 1500/1800/2200 | 151 | 111 | 15.875 | 72 | 679 |
| MGU19 | 42 | 11 | 1400 | 20300 | 140 | 1500/1800/2200 | 152 | 112 | 19.05 | 72 | 679 |
| MGU22 | 57 | 15 | 1200 | 17400 | 120 | 1500/1800/2200 | 177 | 130 | 22.22 | 72 | 679 |
MGU Plunger Pump, also called pump jack, chemical dosing pump, reverse osmosis water filtration system pump,
reverse osmosis filter system pump, ro water filter system pump, ro water filter pump, best reverse osmosis system pump.
It is widely used in high pressure, large flow and occasions where the flow needs to be adjusted.
It is widely used in high pressure, large flow and occasions where the flow needs to be adjusted.
