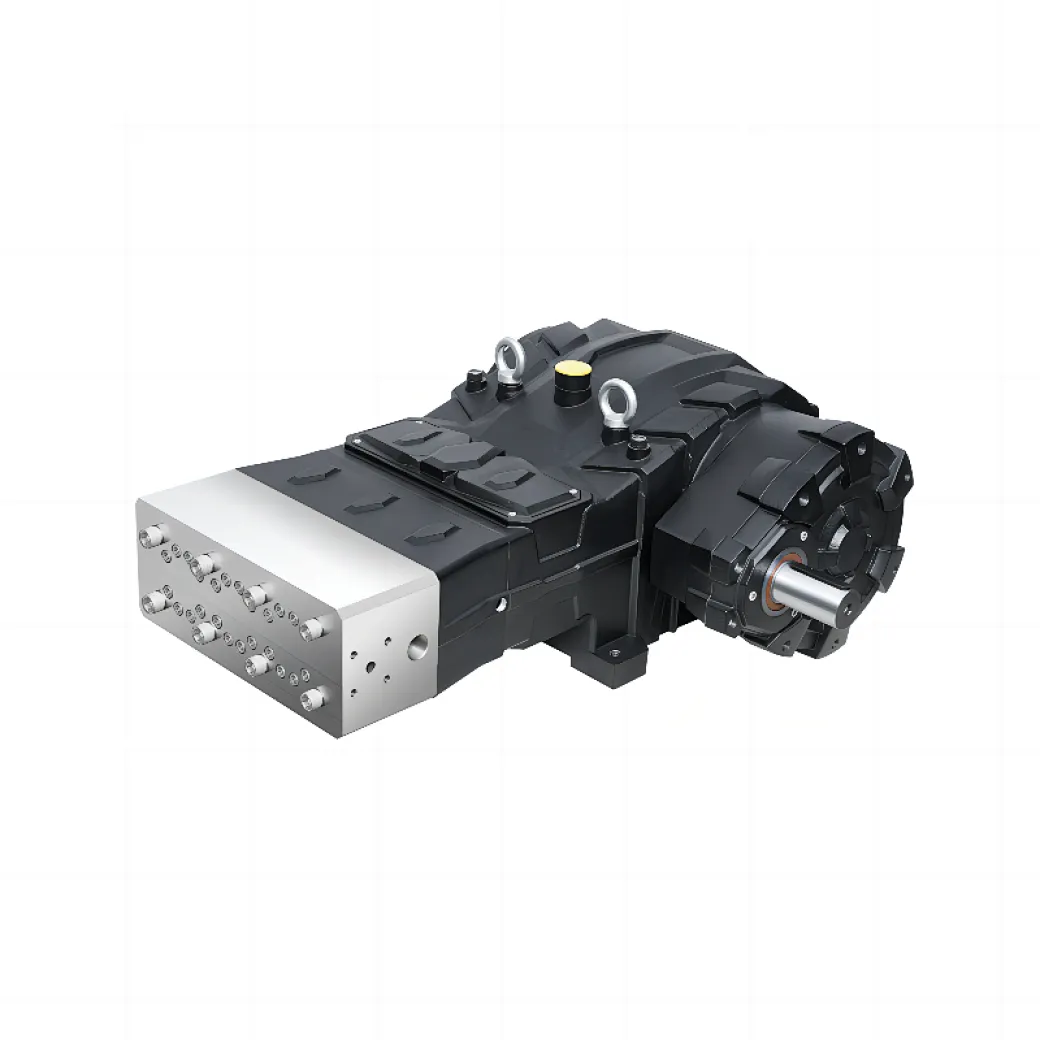

TM 23-80L/min 700-2000bar High Pressure Gear Pump
TM
TM pump is an advanced and powerful pump designed for applications that require extremely high pressure levels. This pump is capable of producing pressures of up to 2000 bar, making it suitable for use in a wide range of industrial and commercial settings, including waterjet cutting, chemical processing, and surface preparation.
Featuring a rugged and durable construction, TM is designed to withstand harsh environments and heavy usage. It's also highly energy-efficient, with its advanced design minimizing energy requirements and helping to reduce running costs.
Featuring a rugged and durable construction, TM is designed to withstand harsh environments and heavy usage. It's also highly energy-efficient, with its advanced design minimizing energy requirements and helping to reduce running costs.
minimum order
1 piece
Quantity
- Model: TM
- 316L Stainless Steel
| TM Series High Pressure Pump | ||||||
| Input Speed Reducer Speed Ratio Pump Speed | r.p.m | 1000 | 1500 | |||
| i | 1.92 | 2.17 | 2.65 | 2.65 | ||
| r.p.m | 521 | 461 | 377 | 566 | ||
| Pressure (bar) | Model | Output flow (L/min) and required power(kw) | ||||
| 2000 | TM18 | L/min | 28.6 | 25.3 | 20.7 | 31.1 |
| kW | 112.3 | 99.4 | 81.3 | 122.0 | ||
| 1500 | TM20 | L/min | 35.4 | 31.3 | 25.6 | 38.4 |
| kW | 104.0 | 92.0 | 75.2 | 113.0 | ||
| 1400 | TM22 | L/min | 42.8 | 37.9 | 31.0 | 46.5 |
| kW | 117.4 | 103.9 | 85.0 | 127.6 | ||
| 1100 | TM24 | L/min | 50.9 | 45.0 | 36.8 | 55.3 |
| kW | 109.8 | 97.2 | 79.5 | 119.3 | ||
| 900 | TM26 | L/min | 59.7 | 52.9 | 43.2 | 64.9 |
| kW | 105.4 | 93.3 | 76.3 | 114.5 | ||
| 800 | TM28 | L/min | 69.3 | 61.3 | 50.1 | 75.3 |
| kW | 108.7 | 96.2 | 78.7 | 118.1 | ||
| 700 | TM30 | L/min | 79.5 | 70.4 | 57.6 | 86.4 |
| kW | 109.2 | 96.6 | 79.0 | 118.6 | ||
TM Plunger Pump, also called high pressure pump, gear pump, ro water system pump,ro unit pump, reverse osmosis desalination pump, petroleum pump.
It is widely used in high pressure, large flow and occasions where the flow needs to be adjusted.
It is widely used in high pressure, large flow and occasions where the flow needs to be adjusted.
