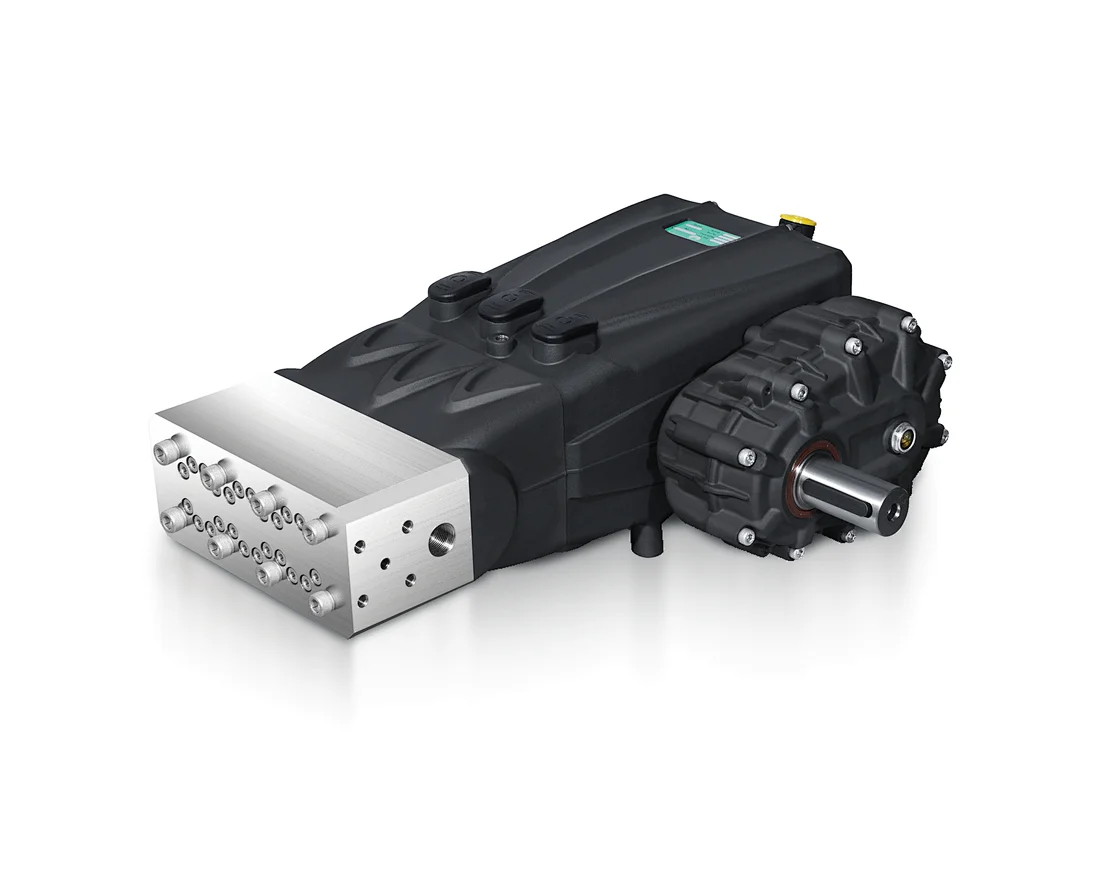

Ultra High Pressure Pump 200Mpa with gear box
Botuo Ultra HIGH PRESSURE GTFH TYPE PUMP, WITH 2500BAR ULTRA HIGH pressure cleaning capacity, flow range of 6-23 liters, stainless steel pump head, with strong rigidity, rust removal, paint removal, concrete cleaning applications
GTFH
1
Quantity:
- Min. Order:1
- Color:/
- Specification Code:GTFH
- Specification Description:STAINLESS STEEL
Ultra High Pressure Pump
| MODEL | Max Flow | Max Pressure | Speed(r.p.m) | Power Require | Weight | ||||
| L/min | gpm | bar | p.s.i | Mpa | 1:2.25 1:5 1:83 | hp | kw | kg | |
| GTFH10 | 8 | 2.2 | 2000 | 29000 | 200 | 1500/1800/2200 | 43.9 | 32.5 | 78 |
| GTFH12 | 20 | 5.3 | 1500 | 21750 | 150 | 1500/1800/2200 | 75 | 55 | 78 |
| GTFH14 | 28 | 7.4 | 1100 | 15950 | 110 | 1500/1800/2200 | 75 | 55 | 78 |
