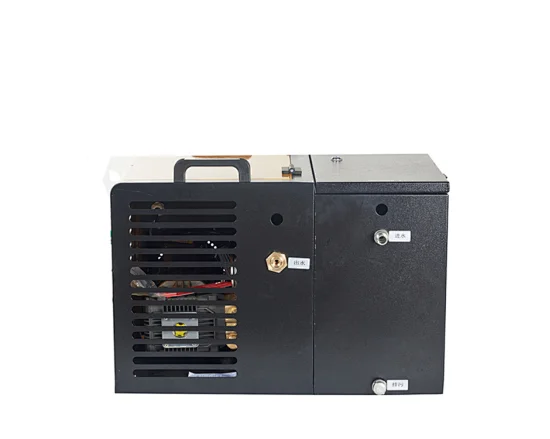

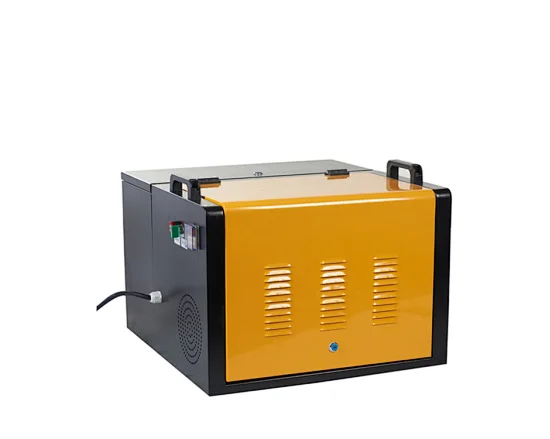

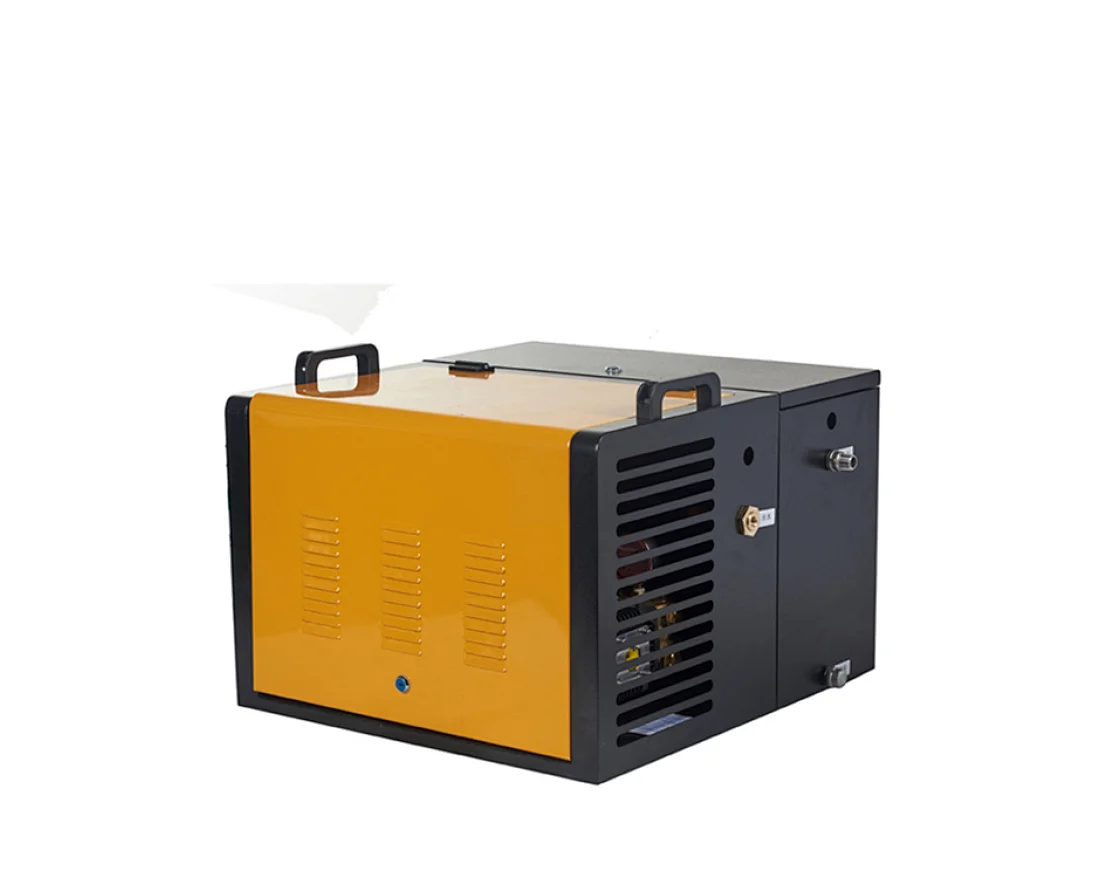

BM4 commercial cool mist cooling system
flow rate:4-15 litre per mintues
max pressure :100bar /1450psi
power :1.1 -3kw /AC
AC MOTO 220V/380
Time control
Low pressure protection
Size::720x450x510MM
Usable area400-1000M2
Drought Switch
max pressure :100bar /1450psi
power :1.1 -3kw /AC
AC MOTO 220V/380
Time control
Low pressure protection
Size::720x450x510MM
Usable area400-1000M2
Drought Switch
BM4
1
Quantity:
The high-pressure disinfectant fogging machine is a homedics total comfort humidifier that combines high-pressure spray with time, humidity,
temperature and other environments. The high-pressure water from the plunger pump is atomized after passing
through the tiny nozzle. So this kind of fog is very close to nature. It is also widely used in summer cooling,
outdoor misting fan deodorization of animal husbandry, dust reduction, reptile Humidifiers etc.
| Portable Misting Systems | |||||||||
| Model | Flow | Pressure | Power | Speed | Nozzles No. | ||||
| L/min | gpm | bar | psi | hp | kw | rpm | 1510BS | 2010BS | |
| BM4-4 | 4 | 1.0 | 70 | 1100 | 1.5 | 1.1 | 1450 | 88 | 44 |
| BM4-6 | 6 | 1.6 | 70 | 1100 | 2 | 1.5 | 1450 | 130 | 66 |
| BM4-8 | 8 | 2.1 | 70 | 1100 | 2 | 1.5 | 1450 | 180 | 90 |
| BM4-12 | 12 | 3.1 | 70 | 1100 | 3 | 2.2 | 1450 | 260 | 130 |
| BM4-15 | 15 | 3.9 | 70 | 1100 | 4 | 3 | 1450 | 326 | 165 |
