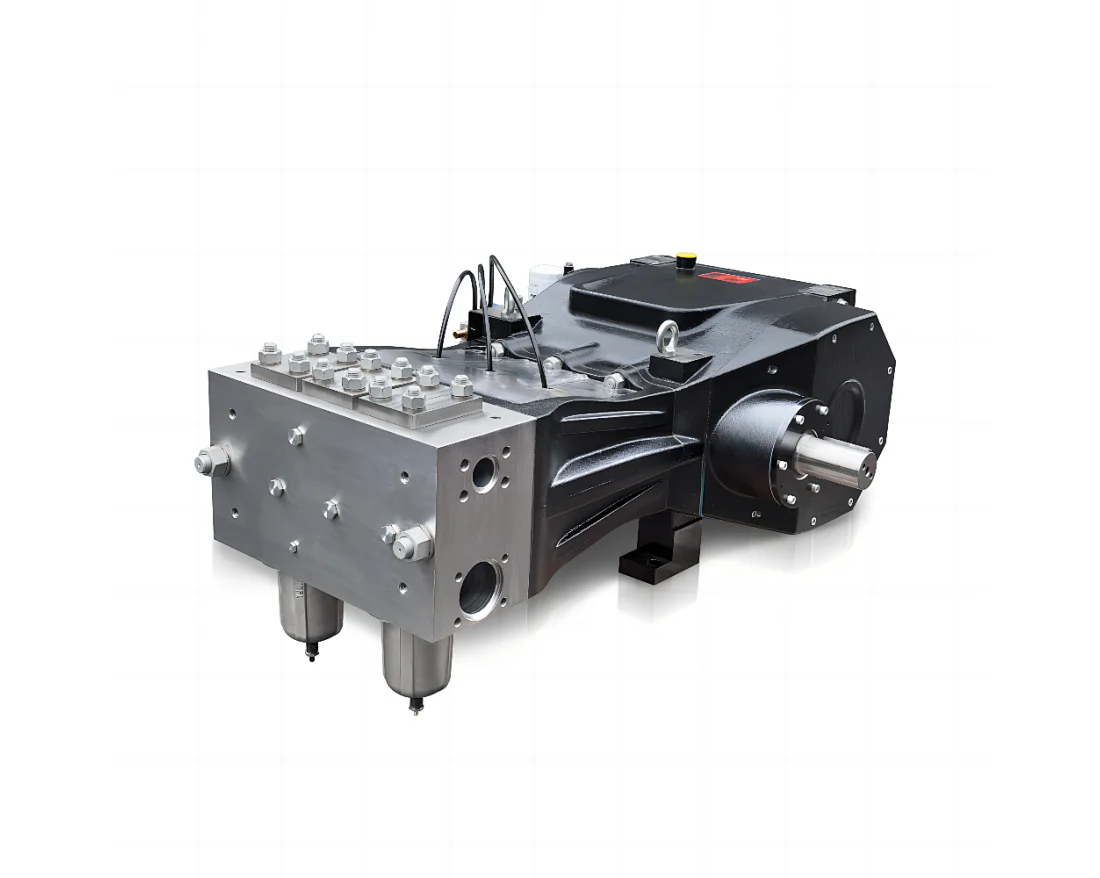

WK 200-850L/min Stainless Steel Pump High Pressure High Flow Max to 300kw
High flow rate, high pressure stainless steel pump ideal for oil field brick wells and coal mine brick holes.
WK
1
Quantity:
- Min. Order: 1
- Specification Code: WK
- Specification Description: Stainless Steel
Ultra High Pressure Pump
Application: Spunlace nonwoven process
water well drilling, geothermal drilling, no-core drilling, blast hole drilling, direction drilling
| WK Series High Pressure Pump | |||||||||||
| Input Speed Reducer Speed Ratio Pump Speed | r.p.m | 1000 | 1500 | 1800 | 2200 | ||||||
| i | 3.04 | 3.7 | 4.28 | 3.04 | 3.7 | 4.28 | 3.7 | 4.28 | 4.28 | ||
| r.p.m | 329 | 270 | 234 | 493 | 405 | 350 | 486 | 421 | 514 | ||
| Pressure (bar) | Model | Output flow (L/min) and required power(kw) | |||||||||
| 420 | WK55 | L/min | 234 | 192 | 167 | 351 | 187 | 249 | 346 | 300 | 366 |
| kW | 193 | 158 | 137 | 289 | 238 | 205 | 285 | 247 | 302 | ||
| 350 | WK60 | L/min | 279 | 229 | 198 | 418 | 344 | 297 | 412 | 357 | 436 |
| kW | 192 | 157 | 136 | 287 | 236 | 204 | 283 | 245 | 299 | ||
| 300 | WK65 | L/min | 328 | 269 | 233 | 491 | 403 | 348 | 484 | 419 | 512 |
| kW | 193 | 158 | 137 | 289 | 237 | 205 | 285 | 247 | 301 | ||
| 260 | WK70 | L/min | 380 | 312 | 270 | 569 | 468 | 404 | 561 | 486 | 593 |
| kW | 194 | 159 | 138 | 290 | 238 | 206 | 286 | 248 | 303 | ||
| 225 | WK75 | L/min | 436 | 358 | 310 | 653 | 537 | 464 | 644 | 558 | 681 |
| kW | 192 | 158 | 137 | 288 | 237 | 205 | 284 | 246 | 300 | ||
| 200 | WK80 | L/min | 496 | 407 | 353 | 743 | 611 | 528 | 733 | 635 | 775 |
| kW | 195 | 160 | 138 | 292 | 240 | 207 | 287 | 249 | 304 | ||
| 175 | WK85 | L/min | 560 | 460 | 398 | 839 | 689 | 596 | 827 | 717 | 875 |
| kW | 192 | 158 | 137 | 288 | 237 | 204 | 284 | 246 | 300 | ||
This WK 200-850L/min Stainless Steel Pump boasts a large flow rate of up to 850L/min, making it perfect for oil field brick wells and coal mine brick holes. Its high pressure capabilities can handle up to 217-700kw. Made of durable stainless steel, it is built to last in even the toughest conditions. Ideal for pumping liquids such as water, oil, and chemicals. Its compact design makes it easy to transport and install. With its powerful performance, it can solve many issues that users may face in their industrial applications. Invest in this pump and experience a reliable and efficient pumping solution.
