LD-N 30-72L/min High Pressure Pump used in Seawater Treatment up to 250bar
LD-N24 Series High Pressure Plunger Pump | |||||||||
Model | Flow Rate | Max Pressure | Power | Speed | Plunger Dia | Stroke | |||
L/min | gpm | bar | p.s.i | hp | kw | r.p.m | mm | mm | |
LD3025 | 30 | 7.93 | 250 | 3625 | 20 | 15 | 1450 | 28 | 11 |
LD4020 | 40 | 10.57 | 200 | 2900 | 20 | 15 | 1450 | 28 | 15 |
LD5215 | 52 | 13.74 | 150 | 2175 | 20 | 15 | 1450 | 28 | 21 |
LD7215 | 72 | 19.02 | 150 | 2175 | 30 | 22 | 1450 | 32 | 21 |

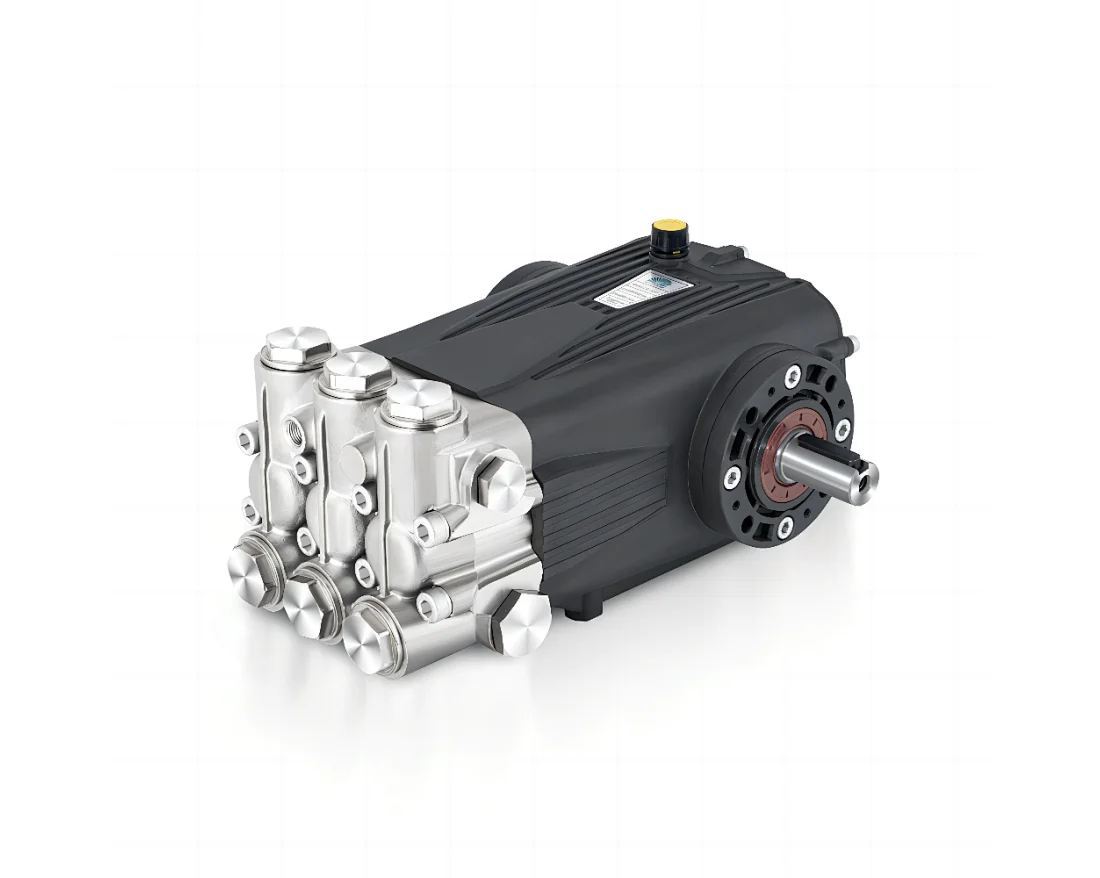

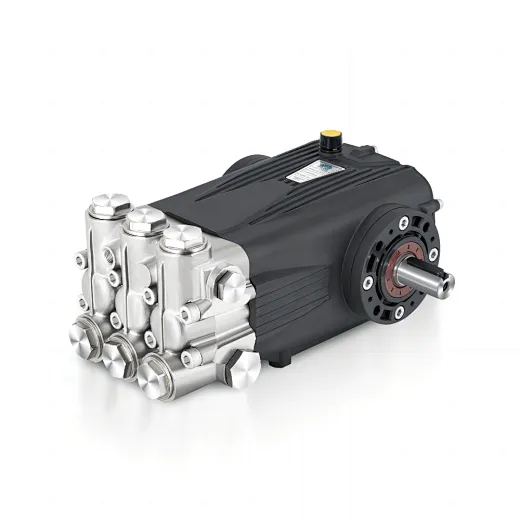

The LD-N triplex plunger pump, also called stainless steel pump, chemical pump, high pressure water pump, deep well water pump, pressure washer pump, sea flo pump,
is a cold water spray plunger pump with a stainless steel pump head.
It is best for medicine and chemical industry, seawater desalination equipment, fire fighting equipment and other application fields.
Our plunger pumps have a 1-2 year warranty. We provide 24/7 online technical support to provide you with considerate service.
