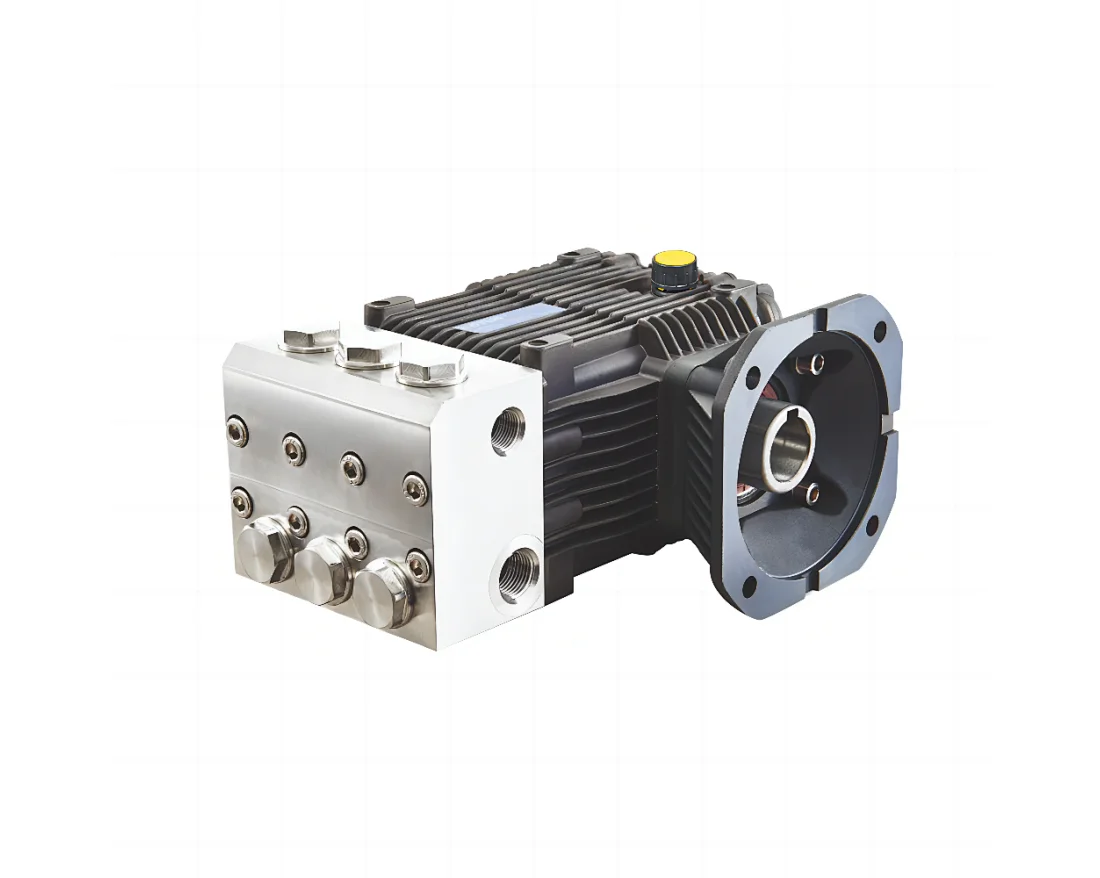

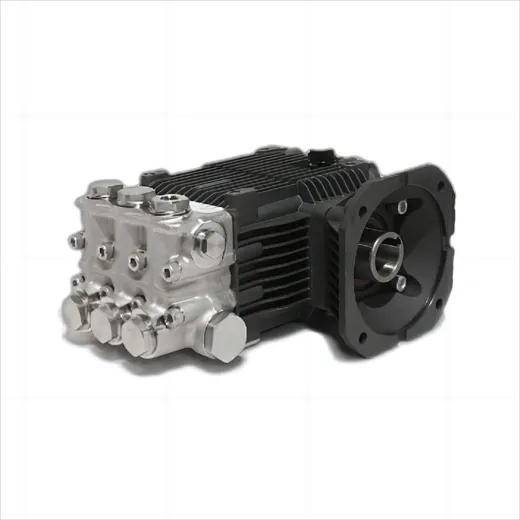

LT-F3 16-30L/min Stainless Steel 316L Plunger Pump 100Bar
- Model: LB-F3
- 316L Stainless Steel Pump Head
- Flow: 16-30L/min Pressure: 100bar
LT-C28 Series High Pressure Plunger Pump | |||||||||
Model | Flow Rate | Max Pressure | Power | Speed | Plunger Dia | Stroke | |||
L/min | gpm | bar | p.s.i | hp | kw | r.p.m | mm | mm | |
LT-1610 | 16 | 4.23 | 100 | 1450 | 4 | 3 | 1450 | 22 | 10 |
LT-2310 | 23 | 6.08 | 100 | 1450 | 5.5 | 4 | 1450 | 22 | 14 |
LT-3010 | 30 | 7.93 | 100 | 1450 | 7.5 | 5.5 | 1450 | 22 | 14 |


The LT-F3 triplex plunger pump, also called submersible pump, submersible sewage pump, 5hp water pump, electrical submersible pump , stainless steel pump, wastewater pump,
is a cold water spray plunger pump with a stainless steel pump head.
It is best for medicine and chemical industry, seawater desalination equipment, fire fighting equipment and other application fields.
Our plunger pumps have a 1-2 year warranty. We provide 24/7 online technical support to provide you with considerate service.
