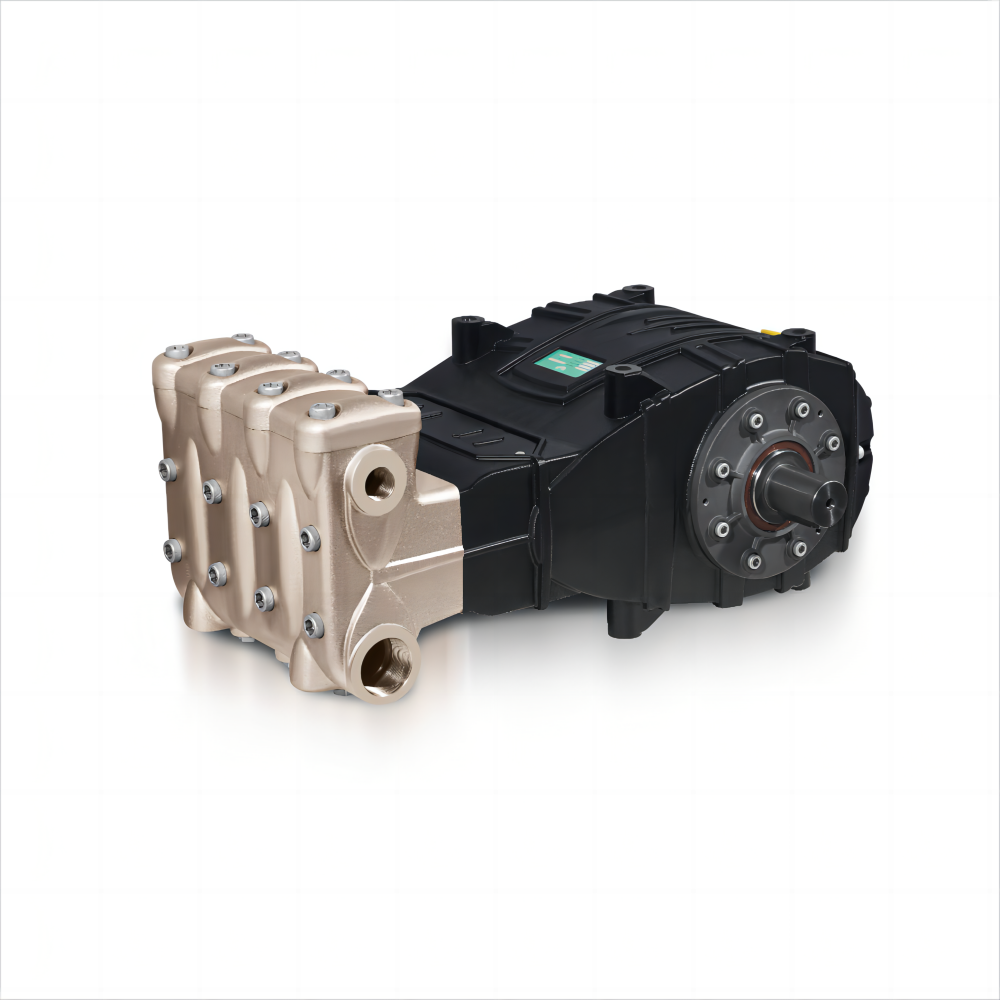

168-263L/min Sewage Pump FV Series
FV
The FV plunger pump, also called sewage pump system, sewage pump, slurry pump, dirty water pump, basement sewage pump.
It is widely used in high pressure, large flow, and occasions where the flow needs to be adjusted.
It is widely used in high pressure, large flow, and occasions where the flow needs to be adjusted.
minimum order
1
Quantity
-
- Model: FV
- Specification Description: Cast Iron
- Sewer Pump
| FV Series High Pressure Plunger Pump | |||||||||
| Model | Flow Rate | Max Pressure | Speed | Power | Weight | ||||
| L/min | gpm | bar | p.s.i | Mpa | r.p.m | hp | kw | kg | |
| FV32 | 168 | 44.9 | 250 | 3625 | 25 | 1000 | 113 | 83 | 209 |
| FV36 | 213 | 56.2 | 200 | 2800 | 20 | 1000 | 113 | 83 | 209 |
| FV40 | 263 | 69.5 | 160 | 2320 | 16 | 1000 | 113 | 83 | 209 |
The FV plunger pump, also called sewage pump system, sewage pump, slurry pump, dirty water pump, basement sewage pump.
It is widely used in high pressure, large flow and occasions where the flow needs to be adjusted.
It is widely used in high pressure, large flow and occasions where the flow needs to be adjusted.
Flow Rate: 168-263 LPM/ 45-70 GPM
Max Pressure: 160-250 Bar/2320-3625 PSI
Power Required: 83 KW/ 113 HP
Max Pressure: 160-250 Bar/2320-3625 PSI
Power Required: 83 KW/ 113 HP
Our plunger pumps have a 1-2 year warranty. We provide 24/7 online technical support to provide you with considerate service.
