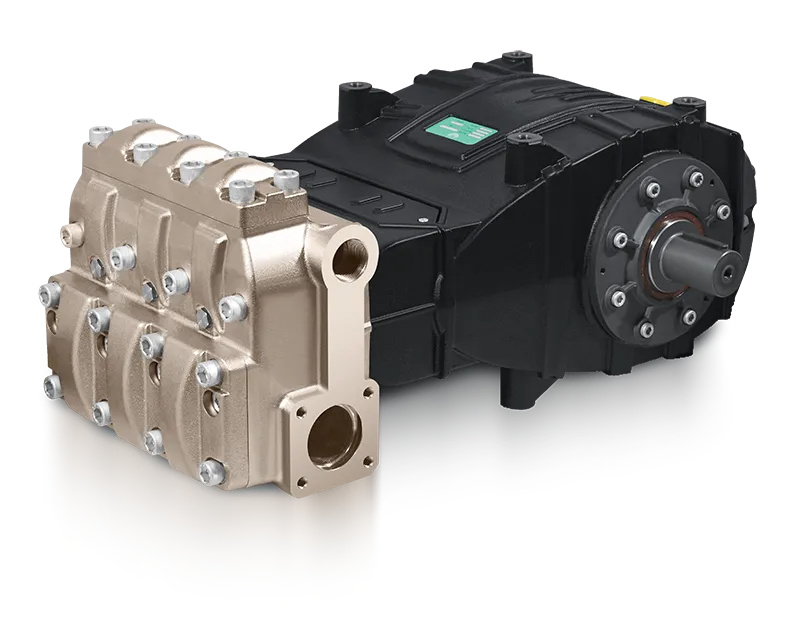

330-399L/min duct dredging pump FV
FV55
The FV55 plunger pump, also called dredging pump, mud pump, pump for dredging, sand dredging pump, and jet pump well.
It is widely used in high pressure, large flow, and occasions where the flow needs to be adjusted.
It is widely used in high pressure, large flow, and occasions where the flow needs to be adjusted.
minimum order
1
Quantity
- Min. Order:1
- Color:/
- Specification Code:FV55
- Specification Description:CAST IRON
Duct dredging pump
TheFV55 plungerpump, also called dredging pump,mud pump,pumps for dredging,sand dredging pump,jet pump well.
It is widely used in high pressure, large flow and occasions where the flow needs to be adjusted.
Flow Rate: 333-399 LPM/ 87-105 GPM
Max Pressure: 100-130 Bar/1450-1885 PSI
Power Requie: 79-84 KW/ 108-114 HP
Our plunger pumps have a 1-2 year warranty. We provide 24/7 online technical support to provide you with considerate service.

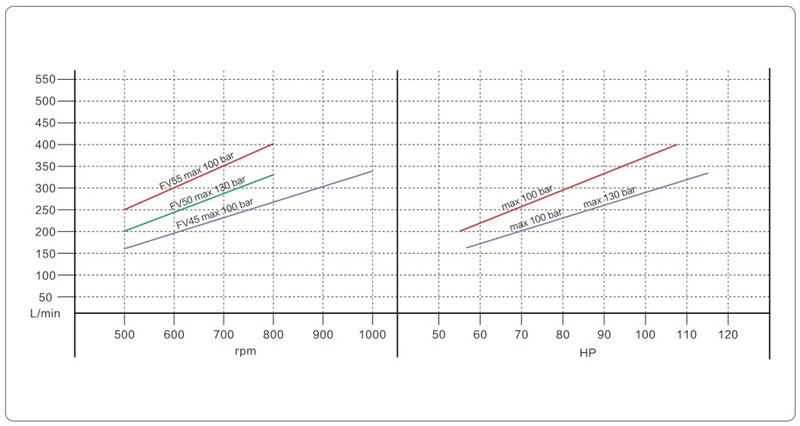

| MODEL | Max Flow | Max Pressure | Speed | Power Require | Weight | ||||
| L/min | gpm | bar | p.s.i | Mpa | r.p.m | hp | kw | kg | |
| FV45 | 333 | 88.0 | 100 | 1450 | 10 | 1000 | 113 | 83 | 209 |
| FV50 | 330 | 87.2 | 139 | 1885 | 13 | 800 | 114 | 84 | 209 |
| FV55 | 399 | 105.4 | 100 | 1450 | 10 | 800 | 108 | 79 | 209 |
TheFV55 plungerpump, also called dredging pump,mud pump,pumps for dredging,sand dredging pump,jet pump well.
It is widely used in high pressure, large flow and occasions where the flow needs to be adjusted.
Flow Rate: 333-399 LPM/ 87-105 GPM
Max Pressure: 100-130 Bar/1450-1885 PSI
Power Requie: 79-84 KW/ 108-114 HP
Our plunger pumps have a 1-2 year warranty. We provide 24/7 online technical support to provide you with considerate service.
