IB 3-19L/min High Pressure Car Wash Pump max 250bar pressure washing pump piston pump car wash pump car washer pump truck wash pump
IB
The high-pressure car washing pump is a device designed to generate high-pressure water jets to clean vehicles. It works by using an electric motor or a gasoline engine to drive a water pump which generates high pressure, high volume water flow. The pump can create pressure up to 100-250 bar which can effectively remove tough dirt and grime from the car's surface.
minimum order
1
Quantity
| IB Series High Pressure Plunger Pump | |||||||||
| BOTUO.IB 1450rpm N24mm/C24mm/C28mm | |||||||||
| Model | Flow Rate | Max Pressure | Power | Speed | Plunger Dia | Stroke | |||
| L/min | gpm | bar | p.s.i | hp | kw | r.p.m | mm | mm | |
| IB0310-N24/C24 | 3 | 0.79 | 100 | 1450 | 1 | 0.75 | 1450 | 18 | 3 |
| IB0510-N24/C24 | 5.5 | 1.45 | 100 | 1450 | 1.5 | 1.1 | 1450 | 18 | 5 |
| IB0818-N24/C24/C28 | 7.5 | 1.98 | 180 | 2610 | 4 | 3 | 1450 | 18 | 7 |
| IB1218-N24/C24/C28 | 11 | 2.91 | 180 | 2610 | 5.5 | 4 | 1450 | 18 | 10 |
| IB1325-C24/C28 | 13 | 3.43 | 250 | 3625 | 13 | 7.5 | 1450 | 18 | 12 |
| IB1525-N24/C24/C28 | 15 | 3.96 | 250 | 3625 | 13 | 7.5 | 1450 | 18 | 14 |
| IB1910-N24/C24/C28 | 19 | 5.02 | 100 | 1450 | 5.5 | 4 | 1450 | 20 | 14 |
+
The IB series high plunger pump,
also called pressure washing pump, piston pump, car wash pump, car washer pump, truck wash pump,

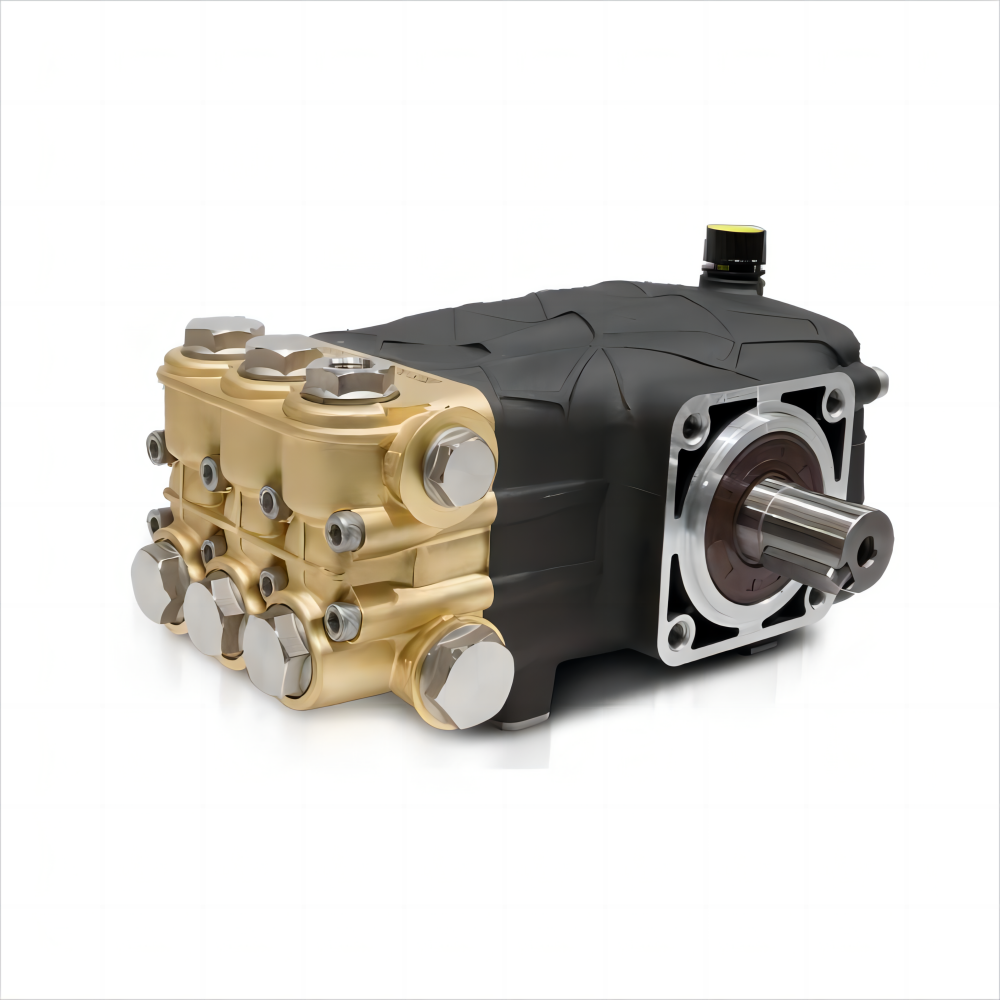

is a cold water spray plunger pump with a brass pump head. It is best for car washing, truck washing, floor washing and other applications.
also called pressure washing pump, piston pump, car wash pump, car washer pump, truck wash pump,
is a cold water spray plunger pump with a brass pump head. It is best for car washing, truck washing, floor washing and other applications.
Our plunger pumps have a 1-2 year warranty. We provide 24/7 online technical support to provide you with considerate service.
