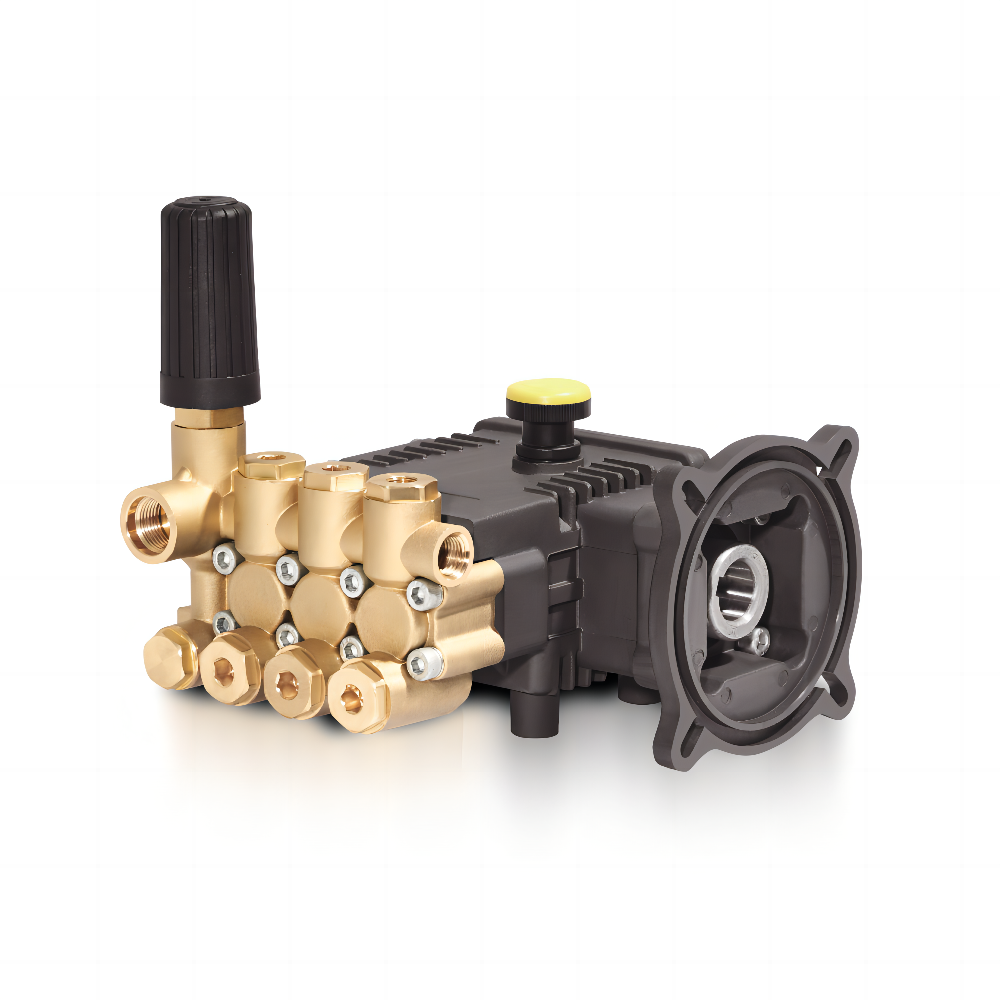

LMV Plunger Pump for Mist Spray
LMV
The LMV triplex plunger pump, also called pump sprayer, pressure water pump, misting pump, water sprayer pump, mist system, and mist sprayer,
is a cold water spray plunger pump with a brass pump head. It is best for mist spray, car washing, floor washing, and other applications.
is a cold water spray plunger pump with a brass pump head. It is best for mist spray, car washing, floor washing, and other applications.
minimum order
1
Quantity
- Model: LMV
- Brass Pump Head
| LMV Series High Pressure Plunger Pump | |||||||||
| Model | Flow Rate | Max Pressure | Power | Speed | Plunger Dia | Stroke | |||
| L/min | gpm | bar | p.s.i | hp | kw | r.p.m | mm | mm | |
| LMV0210 | 2 | 0.53 | 100 | 1450 | 0.75 | 0.55 | 1450 | 15 | 3 |
| LMV0410 | 4 | 1.06 | 100 | 1450 | 1.1 | 0.75 | 1450 | 15 | 6.5 |
| LMV0610 | 6 | 1.59 | 100 | 1450 | 1.5 | 1.1 | 1450 | 15 | 7 |
| LMV0910 | 9 | 2.38 | 100 | 1450 | 3 | 2.2 | 2800 | 15 | 6.5 |
| LMV1010 | 10 | 2.64 | 100 | 1450 | 3 | 2.2 | 2800 | 15 | 7 |
| LMV1210 | 12 | 3.17 | 100 | 1450 | 3 | 2.2 | 3400 | 15 | 7 |
| LMV1215 | 12 | 3.17 | 150 | 2175 | 5.5 | 4 | 3400 | 15 | 7 |
TheLMV triplexplungerpump, also called pump sprayer,pressure water pump,misting pump,water sprayer pump,mist system,mist sprayer,
is a cold water spray plunger pump with a brass pump head. It is best for mist spray, car washing, floor washing and other applications.
Our plunger pumps have a 1-2 year warranty. We provide 24/7 online technical support to provide you with considerate service.
