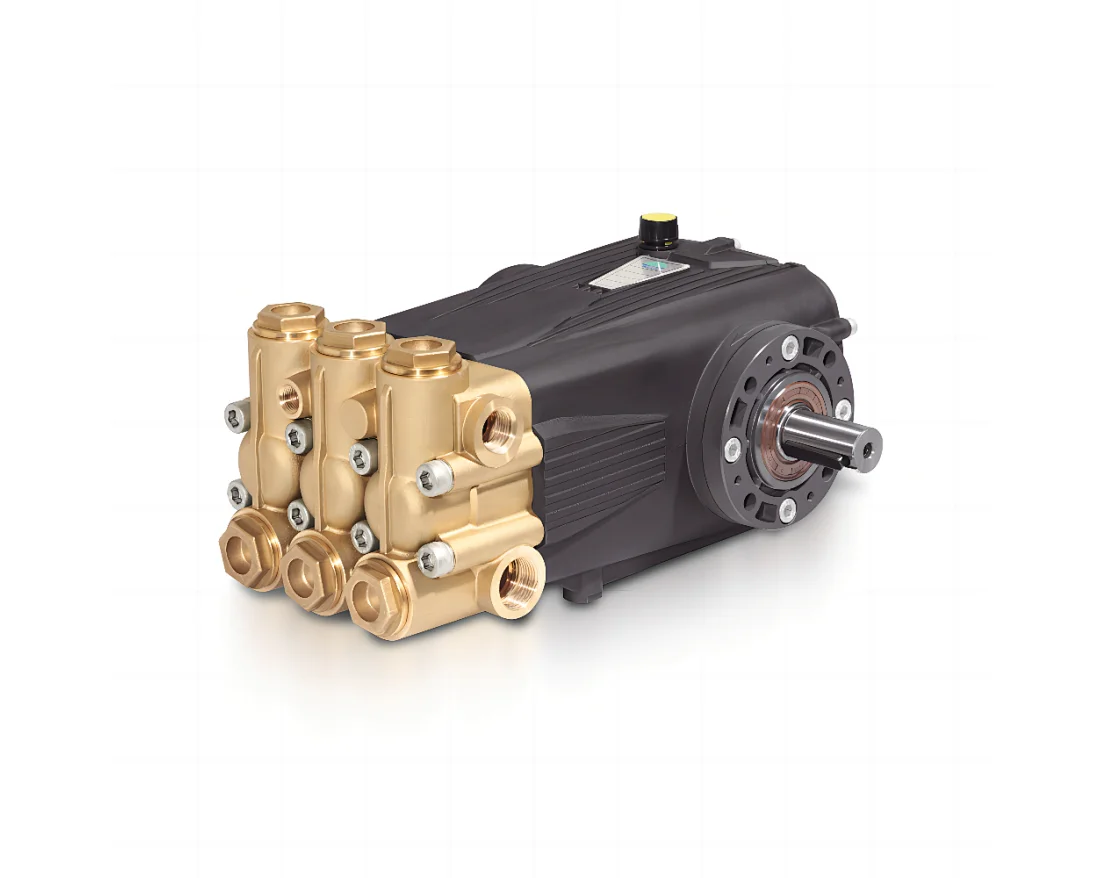

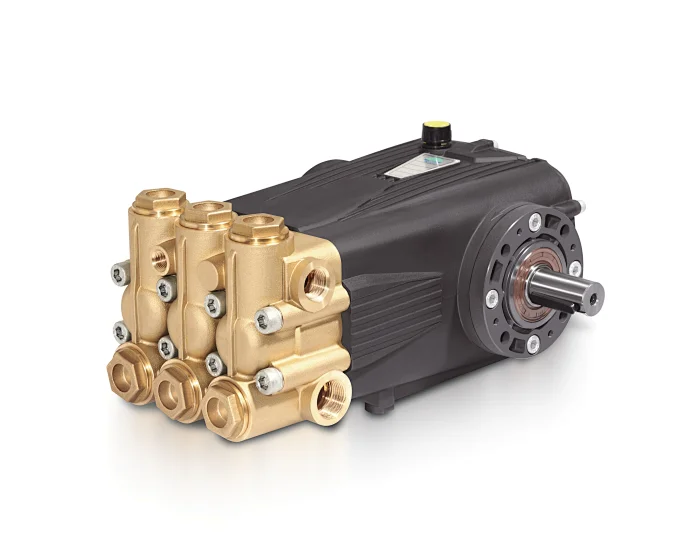

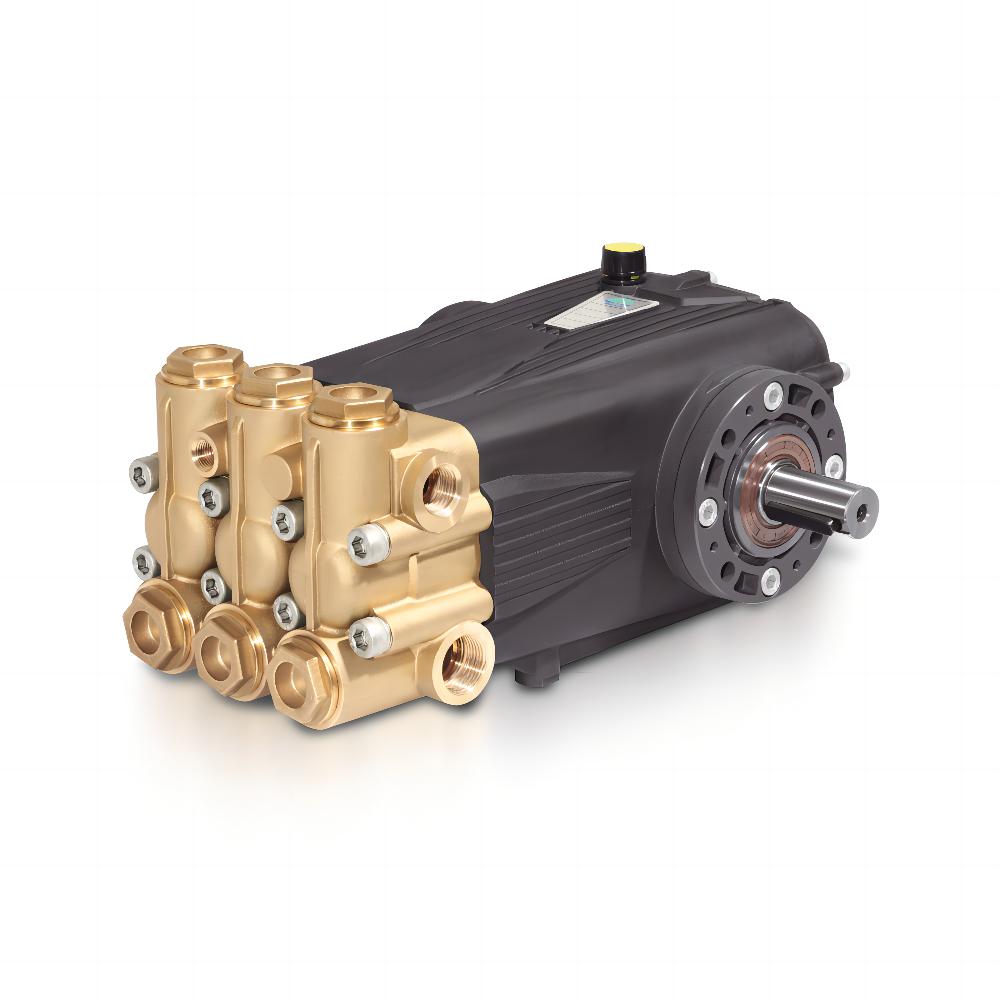

DS-N 22-72LPM Industrial Triplex Plunger Pump
DS-N
The DS-N triplex plunger pump, also called jet pump, recirculating pump, pressure water pump, submersible well pump, washing machine pressure pump, and dredge pump, is a cold water spray plunger pump with a brass pump head. It is best for car washing, truck washing, floor washing, sewer washing, rust removal, concrete removal, and other applications.
minimum order
1
Quantity
- Min. Order: 1
- Specification Code: DS-N
- Specification Description: Brass Head
Plunger Pump
| DS Series High Pressure Plunger Pump | |||||||||
| Model | Flow Rate | Max Pressure | Power | Speed | Plunger Dia | Stroke | |||
| L/min | gpm | bar | p.s.i | hp | kw | r.p.m | mm | mm | |
| DS2235 | 22 | 5.81 | 350 | 5075 | 20 | 15 | 1450 | 18 | 21 |
| DS3025 | 30 | 7.92 | 250 | 3625 | 20 | 15 | 1450 | 28 | 11 |
| DS4020 | 40 | 10.56 | 200 | 2900 | 20 | 15 | 1450 | 28 | 15 |
| DS5215 | 52 | 13.73 | 150 | 2175 | 20 | 15 | 1450 | 28 | 21 |
| DS7215 | 72 | 19.02 | 150 | 2175 | 30 | 22 | 1450 | 32 | 21 |
The DS-N triplex plunger pump,
also called jet pump, recirculating pump, pressure water pump, submersible well pump, washing machine pressure pump, dredge pump,
is a cold water spray plunger pump with a brass pump head.
It is best for car washing, truck washing, floor washing, sewer washing, rust removal, concrete removal and other applications.
Our plunger pumps have a 1-2 year warranty. We provide 24/7 online technical support to provide you with considerate service.
