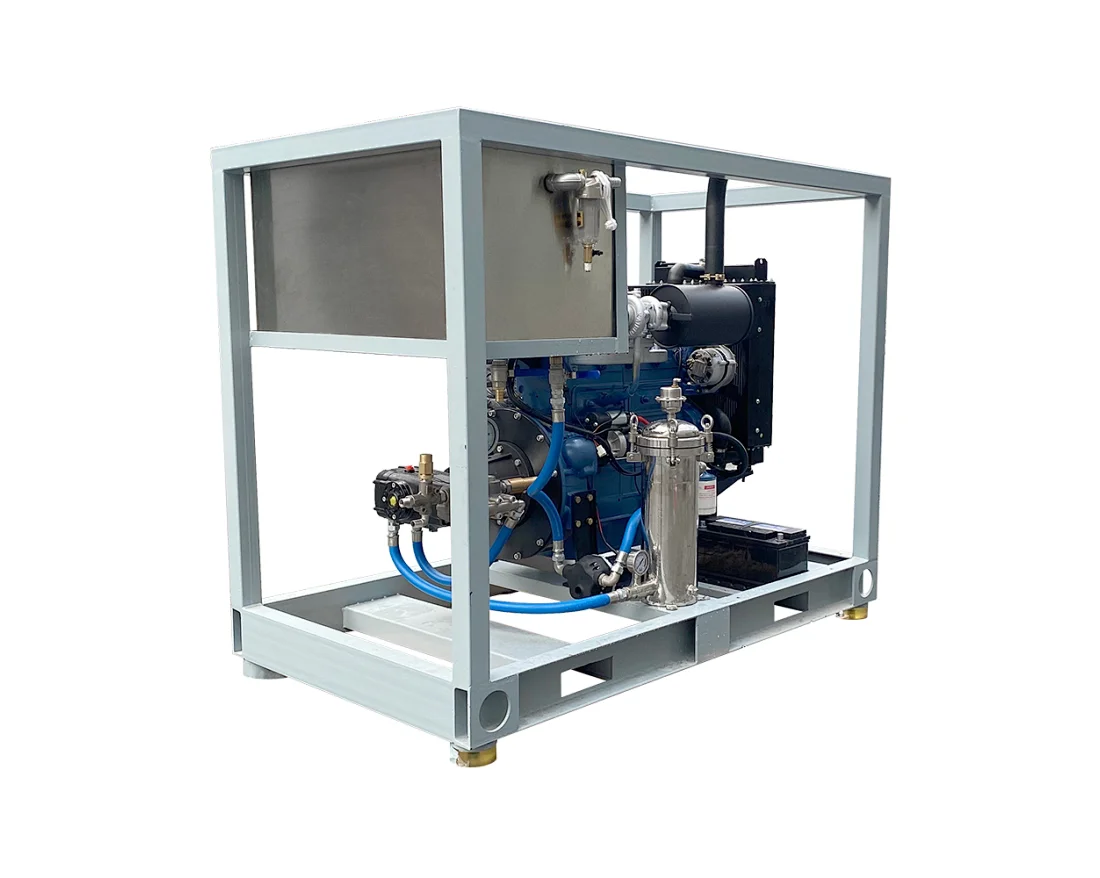

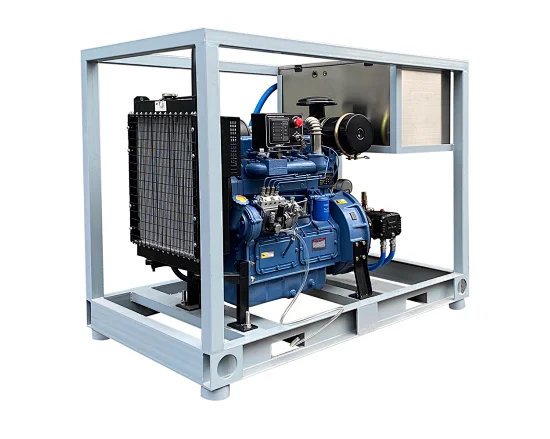

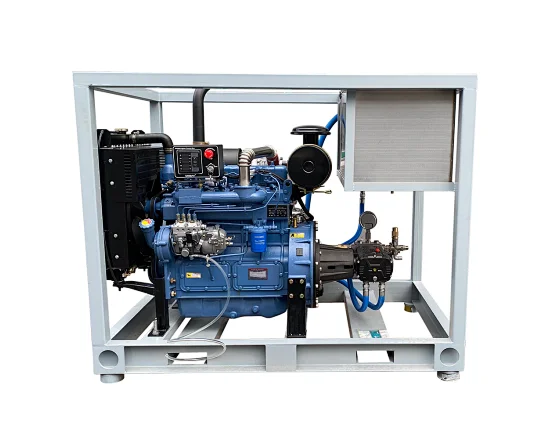

800bar water jetting machine
BFQ-2280
Diesel has a high ignition point, so diesel power is considered to be explosion-proof.
The maximum pressure of this machine can reach 800bar/11600psi,
and the engine is conveniently equipped with CAT's 4-cylinder/water-cooled/40KW.
The triplex plunger pump adopts the PINFL brand from Germany.
with compact in size and the pump head is made of stainless steel 316L, and the back cover is also equipped with a water cooling device.
So meet the shipyard and marine harsh scene
The maximum pressure of this machine can reach 800bar/11600psi,
and the engine is conveniently equipped with CAT's 4-cylinder/water-cooled/40KW.
The triplex plunger pump adopts the PINFL brand from Germany.
with compact in size and the pump head is made of stainless steel 316L, and the back cover is also equipped with a water cooling device.
So meet the shipyard and marine harsh scene
Delivery
FOB
minimum order
1 set
Supply Ability
10set / Day
Country of Origin
zhejiang
Quantity
The UHP Water Jetting Equipment
Also Called industrial surface cleaner,Water Jetting machine
Is A Cold Water water jet unit with A Water Jet Pump Unit and max 11600psi pressure . it Is Best For uhp water blasting.
Flow: 22 Lpm/ 5.8 Gpm
max Pressure: 800Bar/11600psi
Power Requie:35 Kw
Our Plunger Pumps Have A 1-2 Year Warranty. we Provide 24/7 Online Technical Support To Provide You With Considerate Service.
Also Called industrial surface cleaner,Water Jetting machine
Is A Cold Water water jet unit with A Water Jet Pump Unit and max 11600psi pressure . it Is Best For uhp water blasting.
Flow: 22 Lpm/ 5.8 Gpm
max Pressure: 800Bar/11600psi
Power Requie:35 Kw
Our Plunger Pumps Have A 1-2 Year Warranty. we Provide 24/7 Online Technical Support To Provide You With Considerate Service.
| BFQ2280 SERIES | ||
| Model Number | BFQ2280 | |
| Maximum Flow | 22L/MIN | |
| Maximum Pressure | 800Bar/11600Psi | |
| Pump Model | DSPEP2280 | |
| Pump Head Material | SS316L | |
| Regulator | VP53 | |
| Autoswitch | None | |
| Motor Power | K4100ZD/Inline four-cylinder/Four-stroke Water cooling /Diesel powered 50HP | |
| Motor Speed | 1450rpm | |
| Hose & Lenth | 20M | |
| Pipe diameter | ||
| Gun&lance | Long Gun 800 | |
| Nozzle Tips | Rat Nozzle | |
| Net Weight | 1000KG | |
| Product Size | ||
| Shipping Size | ||
