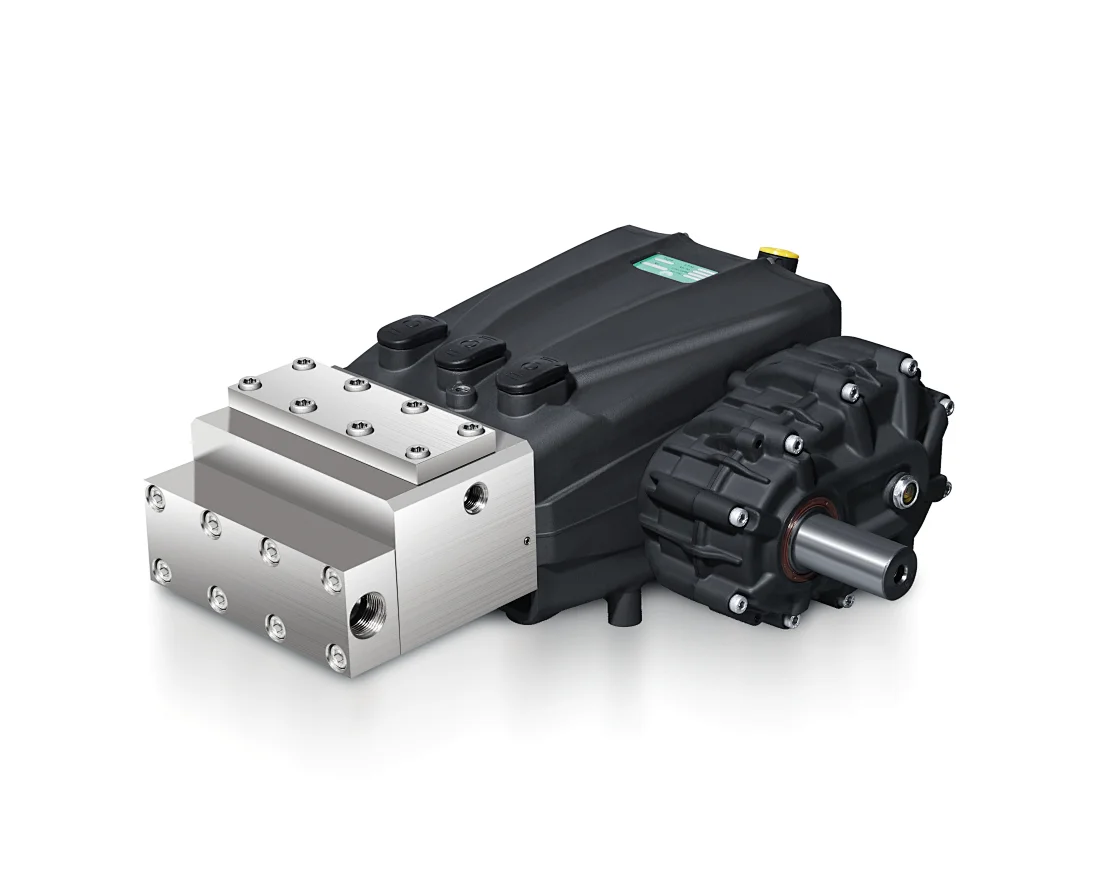

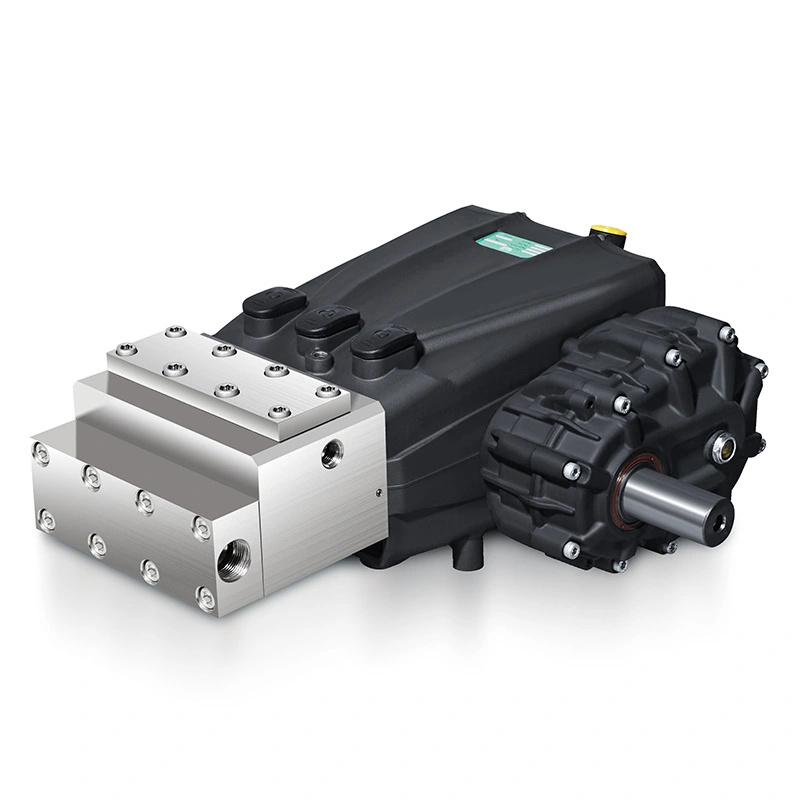

Ultra High Pressure Plunger Pump 60Mpa with gear box
GDFH
minimum order
1
Quantity
- Min. Order:1
- Color:/
- Specification Code:GDFH
- Specification Description:STAINLESS STEEL
Ultra High Pressure Plunger Pump
| MODEL | Max Flow | Max Pressure | Speed(r.p.m) | Power Require | Weight | ||||
| L/min | gpm | bar | p.s.i | Mpa | 1:2.25 1:5 1:83 | hp | kw | kg | |
| GDFH18 | 45 | 11.9 | 600 | 8700 | 60 | 1500/1800/2200 | 71 | 52 | 75 |
| GDFH20 | 56 | 14.8 | 500 | 7250 | 50 | 1500/1800/2200 | 73 | 54 | 75 |
| 68 | 18.0 | 400 | 5800 | 40 | 1500/1800/2200 | 71 | 52 | 75 | |
| GDFH25 | 88 | 23.2 | 300 | 4350 | 30 | 1500/1800/2200 | 71 | 52 | 75 |
