VC G3/8 inner back pressure rugulator
VC G3/8 inner back pressure rugulator
It's a pressure control valve, also called a pressure relief valve or high-pressure regulator.
The cleaning medium is water, rated temperature of 90℃.
The cleaning medium is water, rated temperature of 90℃.
minimum order
10 pieces
Country of Origin
China
Quantity

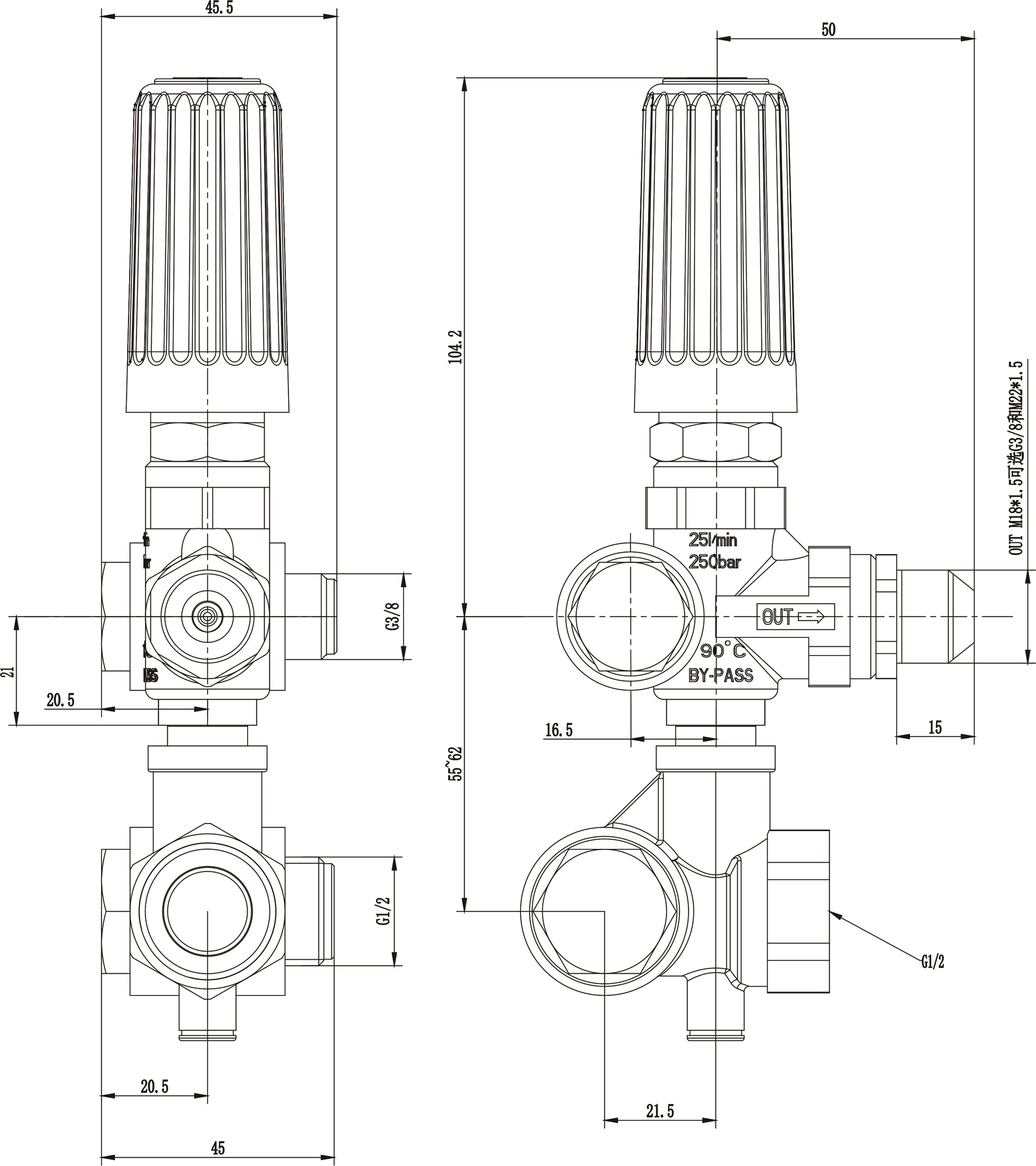

Model: VC-G3/8 Pressure Regulator
Flow: 25L/Min
Max Pressure: 250Bar/3625PSI
| Model | Max Flow | Max Pressure | Temperature | Inlet | Outlet | By-pass | Weight | ||
| LPM | GPM | BAR | PSI | ℃ | KG | ||||
| VC Inner back Pressure Regulator-G3/8 | 25 | 9.25 | 250 | 3625 | 90 | G1/2 | G3/8 | G1/4 | 1.77 |
It's a pressure control valve, also called pressure relief valve or high pressure regulator.
Cleaning medium is water, rated temperature 90℃.
