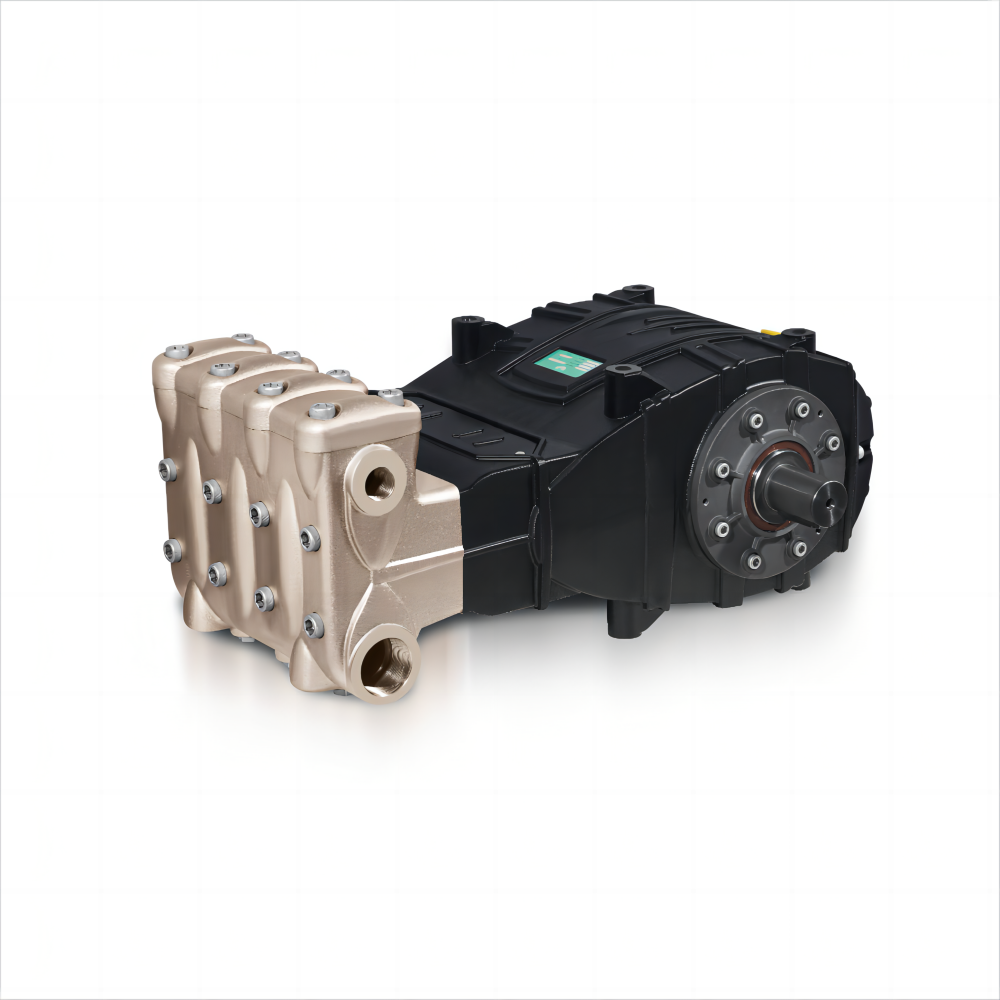

183-561L/min Mud pump triplex plunger pump
FGS
The FGS triplex plunger pump, also called sewer pump, mud pump, water jet pump, high flow pump, and high-pressure pump.
It is widely used in high pressure, large flow, and occasions where the flow needs to be adjusted.
It is widely used in high pressure, large flow, and occasions where the flow needs to be adjusted.
minimum order
1
Quantity
- Min. Order: 1
- Specification Code: FGS
- Specification Description: Cast Iron
Ultra High Pressure Pump
| FGS Series High Pressure Plunger Pump | |||||||||
| Model | Flow Rate | Max Pressure | Speed (r.p.m) | Power | Weight | ||||
| L/min | gpm | bar | p.s.i | Mpa | 1:2.22 1:2.65 1:3.29 | hp | kw | kg | |
| FGS40 | 183 | 48.4 | 400 | 5800 | 40 | 1500/1800/2200 | 190 | 140 | 480 |
| FGS45 | 232 | 61.3 | 300 | 4350 | 30 | 1500/1800/2200 | 181 | 133 | 480 |
| FGS50 | 287 | 75.8 | 250 | 3625 | 25 | 1500/1800/2200 | 186 | 137 | 480 |
| FGS55 | 347 | 91.7 | 220 | 3190 | 22 | 1500/1800/2200 | 181 | 133 | 480 |
| FGS60 | 413 | 109.1 | 200 | 2900 | 20 | 1500/1800/2200 | 182 | 134 | 480 |
| FGS65 | 485 | 128.1 | 180 | 2610 | 18 | 1500/1800/2200 | 189 | 139 | 480 |
| FGS70 | 561 | 148.1 | 100 | 1450 | 10 | 1500/1800/2200 | 183 | 135 | 480 |
The FGS triplex plunger pump, also called sewer pump, mud pump, water jet pump, high flow pump, high pressure pump.
It is widely used in high pressure, large flow and occasions where the flow needs to be adjusted.
Our plunger pumps have a 1-2 year warranty. We provide 24/7 online technical support to provide you with considerate service.
