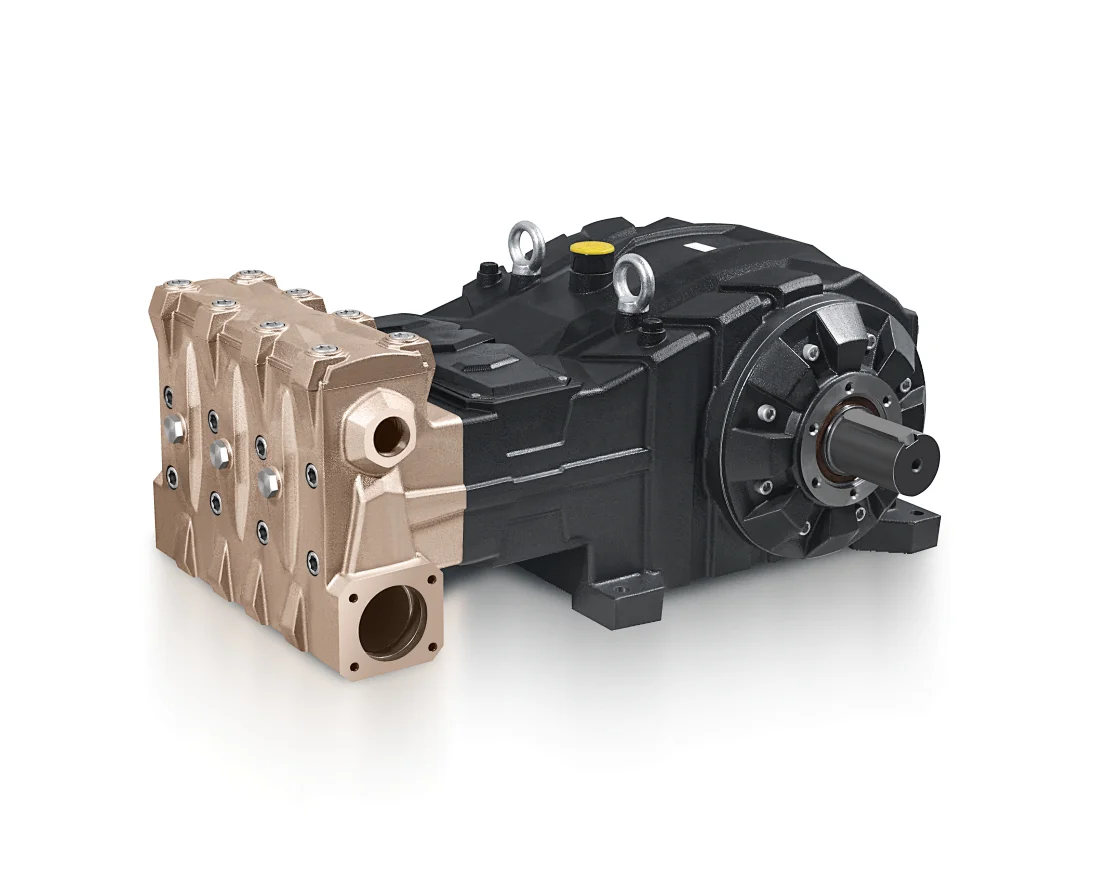

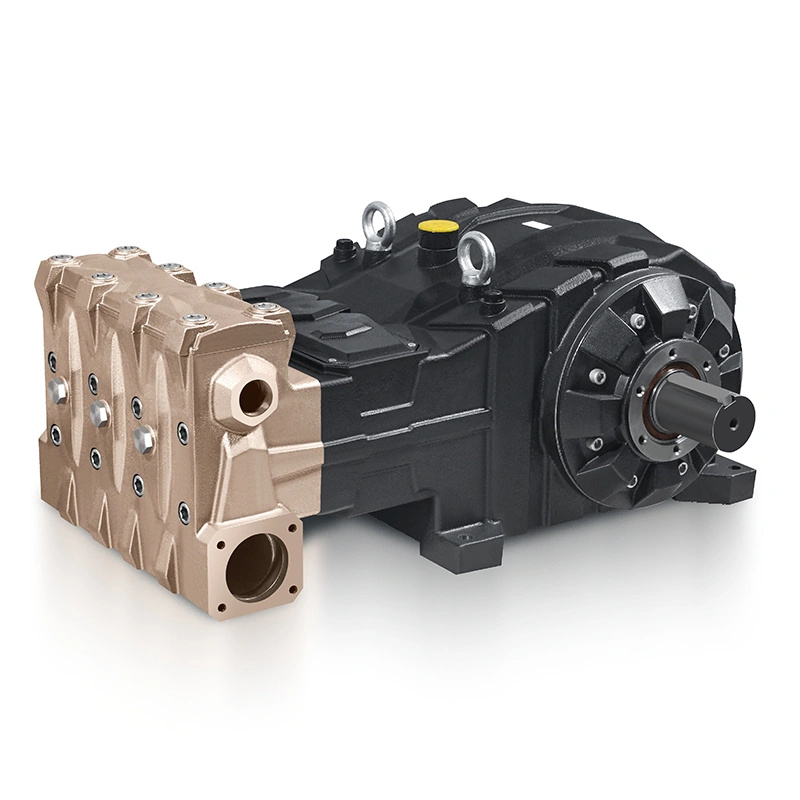

FMV 200-500L/Min heavy flow pump
FMV
The FMV triplex plunger pump is also called a concrete pump, mud pump, well pump, or pressure water pump.
It is widely used in high pressure, large flow, and occasions where the flow needs to be adjusted.
It is widely used in high pressure, large flow, and occasions where the flow needs to be adjusted.
minimum order
1
Quantity
- Min. Order:1
- Color:/
- Specification Code:FMV
- Specification Description:CAST IRON
Brick well pump
TheFMV triplexplungerpump, also called concrete pump,mud pump,well pump,pressure water pump.
It is widely used in high pressure, large flow and occasions where the flow needs to be adjusted.

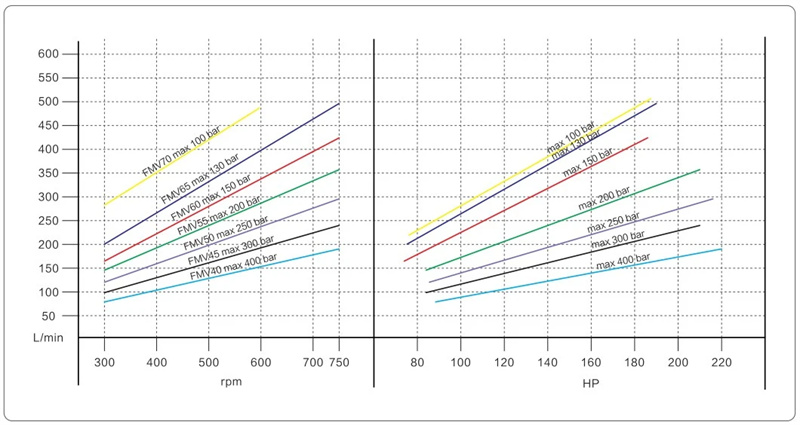

| MODEL | Max Flow | Max Pressure | Speed | Power Require | Weight | ||||
| L/min | gpm | bar | p.s.i | Mpa | r.p.m | hp | kw | kg | |
| FMV40 | 203 | 53.7 | 400 | 5800 | 40 | 750 | 217 | 160 | 420 |
| FMV45 | 257 | 67.9 | 300 | 4350 | 30 | 750 | 205 | 151 | 420 |
| FMV50 | 318 | 84.0 | 250 | 3625 | 25 | 750 | 212 | 156 | 420 |
| FMV55 | 385 | 102.0 | 200 | 2900 | 20 | 750 | 205 | 151 | 420 |
| FMV60 | 458 | 121.0 | 150 | 2175 | 15 | 750 | 182 | 134 | 420 |
| FMV65 | 537 | 141.0 | 130 | 1885 | 13 | 750 | 186 | 137 | 420 |
| FMV70 | 496 | 131.0 | 100 | 1450 | 10 | 600 | 183 | 135 | 420 |
TheFMV triplexplungerpump, also called concrete pump,mud pump,well pump,pressure water pump.
It is widely used in high pressure, large flow and occasions where the flow needs to be adjusted.
